Are you looking for a cost-effective, efficient, and sustainable packaging solution? Thermoforming machines are revolutionizing industries by providing innovative ways to package products.
In this article, we’ll explain how thermoforming works, the benefits it brings to packaging industries, and why it’s crucial for businesses to adopt these machines for better efficiency and sustainability. You’ll learn how thermoforming machines contribute to quicker production, reduced costs, and eco-friendly packaging solutions.

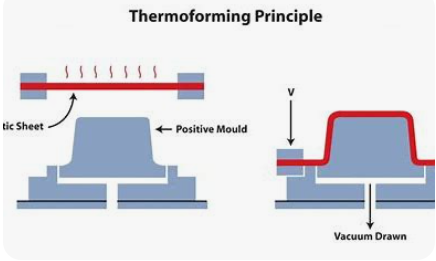

Thermoforming is a manufacturing process that turns plastic sheets into molded shapes using heat and pressure. It's widely used in industries like packaging due to its flexibility, efficiency, and cost-effectiveness. The process involves heating a plastic sheet until it becomes soft and pliable, and then forming it into a mold using either vacuum or pressure. This method is particularly suited for producing packaging materials like food containers, trays, and clamshells, offering a quick turnaround and a wide range of customizable designs.
Heating: The plastic sheet is heated to a temperature where it becomes soft and flexible. This is typically done in an oven, where heat is evenly applied to ensure the entire sheet is at the right temperature for shaping. The material must be uniformly heated to avoid issues like wrinkles or uneven thickness in the final product.
Molding: Once the sheet is sufficiently heated, it is placed over a mold. In vacuum thermoforming, a vacuum is applied to draw the plastic tightly into the mold. In pressure thermoforming, both vacuum and compressed air are used to force the plastic into the mold. The mold’s design is crucial for achieving the desired shape and ensuring a tight, precise fit.
Cooling: After the plastic has been molded, it needs to cool and solidify. Cooling helps the plastic maintain its new shape. It’s often done by exposing the material to air or using water-based cooling systems. The cooling process is essential for ensuring the final product retains its integrity and shape.
Trimming: Once the plastic has cooled and solidified, the excess material around the edges of the molded part is trimmed off. This is typically done using automated cutting tools, such as die-cutting or laser cutting. Trimming is an important step to ensure that the final product meets size specifications and is free from imperfections.
While thermoforming is often compared to injection molding, there are key differences between the two processes. Injection molding involves injecting molten plastic into a mold under high pressure to create a solid part. It's ideal for making small, detailed parts with high precision. However, injection molding is typically more expensive due to higher tooling costs and longer setup times.
In contrast, thermoforming uses a thin plastic sheet and is less expensive in terms of tooling and production costs. It’s ideal for producing larger parts, such as packaging trays or containers, where the design is less intricate but still needs to be durable and functional. Thermoforming is better suited for medium-to-low volume production runs, making it an economical choice for many packaging industries.
Thermoforming techniques can vary depending on the application and the desired outcome. Below are some of the most common types of thermoforming used in the packaging industry:
In vacuum thermoforming, a heated plastic sheet is placed over a mold, and a vacuum is applied to draw the plastic tightly against the mold's contours. This method is widely used in the production of simple shapes and parts, such as food containers, medical trays, and consumer goods packaging. Vacuum thermoforming is popular because it's cost-effective and fast, making it ideal for packaging products in high volumes.
Applications of Vacuum Thermoforming:
Food Packaging: It is used for packaging a wide range of food products, including meat trays, fruit containers, and bakery products. The vacuum-sealed containers ensure food freshness by providing airtight packaging.
Medical Packaging: Vacuum thermoforming is commonly used for creating trays and packaging that require sterility, such as surgical instruments or medical device packaging.
Consumer Goods: It is often used for packaging toys, electronics, and cosmetics, where clear, protective, and cost-effective packaging is required.
Pressure thermoforming is similar to vacuum thermoforming, but it involves applying both vacuum and compressed air to push the heated plastic sheet into a detailed mold. This technique allows for more intricate and precise designs than vacuum thermoforming, which makes it ideal for products requiring higher levels of detail.
Applications of Pressure Thermoforming:
Electronics Packaging: Pressure thermoforming is used to create detailed packaging for electronics, providing protective cases that fit the product’s exact specifications.
Automotive Parts: This technique is used to create components like dashboards, door panels, and interior elements, where intricate designs and strong materials are necessary.
Heavy-Duty Packaging: It's also used in packaging for tools, machinery parts, and other heavy-duty industrial components that require a high level of detail and durability.
Twin-sheet thermoforming involves the simultaneous heating and forming of two plastic sheets. These sheets are then fused together to create a double-walled structure. This method is particularly useful for making parts that require extra durability, insulation, or strength.
Applications of Twin-Sheet Thermoforming:
Food Containers: Twin-sheet thermoforming is used to create food containers that require additional insulation or protection, such as insulated trays for hot foods.
Storage Solutions: This method is used to produce durable, double-walled storage containers and bins, providing extra strength and protection during transportation.
Heavy-Duty Products: Products like pallets, large storage units, and industrial containers are often created using twin-sheet thermoforming to withstand heavy use and rough handling.
The materials used in thermoforming play a significant role in determining the quality, durability, and cost of the packaging. Below are some of the most common materials used in thermoforming:
Polypropylene is widely used in thermoforming for packaging due to its strength, durability, and resistance to chemicals and moisture. It is particularly useful for packaging food products, medical items, and consumer goods. Polypropylene is also recyclable, making it an eco-friendly choice for sustainable packaging solutions.
Applications of Polypropylene:
Food Packaging: Used for packaging frozen foods, dairy products, and ready-to-eat meals due to its heat resistance and durability.
Medical Packaging: PP is used for creating medical trays and containers that require durability and resistance to contamination.
Consumer Goods: Often used in packaging for household products like cleaning solutions and toiletries.
PET is a strong, lightweight material commonly used in thermoforming. It offers excellent clarity, making it ideal for packaging products where visibility is important, such as food packaging and retail displays. PET is also highly recyclable, making it a popular choice for sustainable packaging.
Applications of PET:
Food Packaging: PET is used for creating clear containers for packaged foods, including salads, snacks, and beverages.
Consumer Goods: Used for packaging products like cosmetics and electronics, providing both visibility and protection.
Environmental Benefits: PET’s recyclability makes it an environmentally friendly option, contributing to sustainability efforts in packaging.
ABS is a versatile thermoplastic known for its strength, toughness, and impact resistance. It is commonly used in thermoforming for applications that require durability and high impact resistance, such as automotive parts and heavy-duty packaging.
Applications of ABS:
Automotive Parts: ABS is used for creating durable components like dashboards, trim, and interior panels.
Heavy-Duty Packaging: Used in industrial packaging for items like tools, machinery, and equipment that require extra protection during transportation.
HIPS is a low-cost plastic that is easy to process and form. It is commonly used for creating clear, protective packaging solutions. HIPS is ideal for creating products like clamshell packaging and blister packs, as it offers good strength and impact resistance.
Applications of HIPS:
Consumer Goods Packaging: HIPS is widely used for packaging toys, electronics, and small consumer goods that need clear visibility and protection.
Food Packaging: Often used for creating trays and containers for fast food and takeaway products.
By choosing the right material for the job, thermoforming can provide a wide range of packaging solutions, ensuring that products are well-protected and presented in an appealing way.
Thermoforming machines offer essential benefits to the packaging industry, including cost-efficiency, customization, and sustainability. They enable faster production, reduced waste, and offer flexible design options. Packaging industries should integrate thermoforming machines to streamline operations, reduce costs, and enhance product presentation while supporting eco-friendly practices.
A: Thermoforming machines vary based on the process used. Common types include vacuum thermoforming, pressure thermoforming, and twin-sheet thermoforming. Each is suited for different applications, from simple packaging to more intricate designs requiring higher precision.
A: The cost of thermoforming machines depends on factors like machine type, material requirements, production volume, and customization needs. While vacuum thermoforming machines tend to be more affordable, advanced models for complex designs may cost more.
A: Yes, thermoforming machines are scalable for both small and large production runs. They offer high-speed production with quick turnaround times, making them suitable for industries needing large volumes of packaging.
A: Thermoforming supports sustainability by minimizing material waste and allowing the use of recycled plastics. Additionally, the process is energy-efficient, reducing the carbon footprint compared to other manufacturing methods.
