How to Calculate Thermoforming Machine Output

Investing in a thermoforming machine without an accurate output projection creates major risks. You might face severe production bottlenecks. You could also strand valuable capital. Operations and procurement leaders constantly struggle to predict manufacturing capacity. A common trap is relying solely on manufacturer-stated dry cycle times. These theoretical speeds ignore material behavior. They overlook necessary tooling changes and daily shop-floor realities. Relying on them leads to unrealistic expectations.

We designed this guide to provide a transparent, engineering-backed framework. You will learn to calculate true net yield effectively. We help you establish credible ROI projections. You can confidently evaluate equipment capabilities during the procurement phase. Proper calculation ensures your factory floor meets strict supply chain demands. By understanding the mechanical and thermal variables, you can forecast actual production volumes accurately.

Key Takeaways

• Baseline Calculation: True thermoforming machine output is a function of cycle time, mold cavitation, and Overall Equipment Effectiveness (OEE).

• The Cooling Bottleneck: Cycle times are rarely constrained by machine speed; they are dictated by material thickness, draw ratio, and cooling efficiency.

• Actual vs. Theoretical Yield: Real-world output calculations must factor in scrap rates, tooling changeovers, and maintenance downtime to establish credible production targets.

• Tooling Strategy Matters: Design for Manufacturing (DFM) and mold material choices (e.g., traditional aluminum vs. rapid prototyping) directly impact cycle limits and part quality.

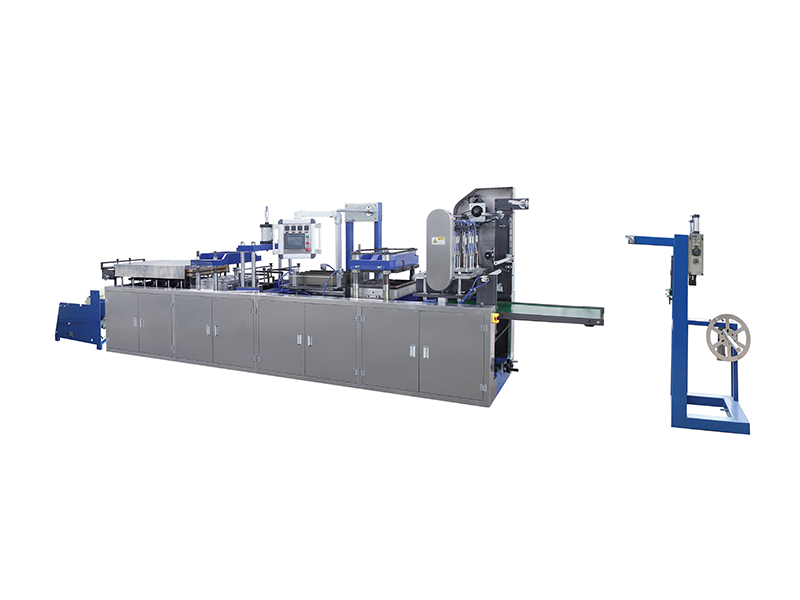

The Core Formula: Calculating Theoretical Thermoforming Machine Output

To project your daily manufacturing volume, you must start with a baseline calculation. This standard formula establishes your absolute maximum theoretical limit. It ignores human error and maintenance delays. It gives you a perfect-world scenario.

The baseline equation is straightforward: (60 minutes / Total Cycle Time in minutes) × (Parts per Mold) = Gross Hourly Output. If your total cycle time equals two minutes, you run 30 cycles per hour. If your mold holds four parts, your gross hourly output reaches 120 parts.

Deconstructing the cycle time requires understanding each active phase. A single machine cycle involves several distinct mechanical and thermal steps. You must account for all of them to calculate accurate thermoforming machine output.

• Heating Time: The duration needed to bring the plastic sheet to a formable state. Thicker gauges require extended heating durations.

• Index/Transfer Time: The mechanical speed moving the heated sheet into the mold area. Servo motors handle this faster than older systems.

• Forming/Vacuum Time: The exact duration required to pull the soft material firmly onto the tool. Complex details require longer vacuum application.

• Cooling & Ejection Time: The plastic must reach its heat deflection temperature (HDT) before safe removal. Removing parts too early causes warping.

Defining cavitation is equally crucial for this formula. Platen size dictates the maximum physical space available inside the equipment. You must factor in the individual part footprint. Always include necessary webbing and spacing between parts. Webbing holds the sheet taut during the vacuum process. Subtracting the webbing area from the platen size determines your maximum parts per cycle.

Critical Variables That Constrain Cycle Times

Mechanical speed rarely limits your actual cycle times. Thermal dynamics and material choices usually create the actual bottlenecks. Understanding these variables prevents overestimating your capacity.

Draw ratio limitations heavily influence production speed. The draw ratio compares the depth of a part to its surface opening. Deep draws stretch and thin the plastic material significantly. This stretching alters the required heating profile. It also demands a longer, more controlled cooling duration. A deep cup forms much slower than a shallow tray. You should use draw ratios as a key evaluation metric when comparing different equipment capabilities.

Material gauge and thermal properties also dictate processing speeds. Thin-gauge packaging cools very rapidly. Materials like PET or PVC process quickly. Heavy-gauge structural components behave differently. Materials like ABS or HDPE retain internal heat much longer. Thick materials drastically slow down your production cycles because they require extended cooling phases.

Heating zone density improves thermal efficiency. Legacy calrod heating systems apply heat unevenly. This forces operators to slow the cycle down to prevent burning. Modern machines utilize top-and-bottom heating elements. High-density zoned quartz heaters reduce overall cycle time. They ensure consistent, targeted heat penetration across the entire sheet.

Table 1: Material Gauge Processing Comparison

From Theoretical to Actual: Factoring in OEE and Scrap Rates

Theoretical speeds look great on paper. However, they never reflect daily shop-floor realities. Expecting a machine to run at peak speed indefinitely is a common procurement mistake.

Applying Overall Equipment Effectiveness (OEE) corrects this planning issue. Theoretical numbers must be multiplied by OEE factors for reliable ROI modeling. The OEE formula measures three core areas. It combines Availability, Performance, and Quality into a single percentage.

Consider the following factors to calculate a realistic thermoforming machine output for your factory:

1. Availability and Downtime: Factor in planned maintenance windows. Account for employee shift changes. Include realistic mold changeover times. Equipment rarely runs constantly throughout an entire shift. Tooling swaps can consume hours.

2. Quality and Reject Rates: Production inherently involves waste. You will experience edge-trim scrap. You will occasionally see webbing blowouts. Uneven wall thickness causes immediate quality rejects. Not every cycle produces a sellable part.

3. Performance Losses: Machines sometimes run slower than their rated speed. Operators reduce speed to prevent material burning. Air pressure drops can extend vacuum times. Small micro-stops add up over an eight-hour shift.

Industry experts rely on a standard rule of thumb discount. Planners usually reduce gross output projections by 15-20%. This discount forecasts highly realistic net deliverables. It prevents over-promising shipments to your supply chain partners.

The Impact of DFM and Tooling on Production Scale

Your mold design significantly controls your production speed. Poor tooling ruins fast equipment. You cannot maximize efficiency without optimizing your molds first.

Mold material heat transfer determines cooling speed. Temperature-controlled aluminum molds dissipate heat rapidly. They feature internal water channels. These channels enable the fastest possible cycles. Conversely, wood, epoxy, or 3D-printed prototyping molds retain heat. They lack internal cooling networks. These alternative materials slow down production drastically.

Design for Manufacturing (DFM) principles directly reduce scrap. Applying proper draft angles prevents part sticking during ejection. Radius optimization ensures smooth material flow into deep corners. Avoiding severe undercuts reduces complex ejection sequences. These engineering steps lower ejection time and minimize scrap rates. Good design keeps the machine running continuously.

Secondary operations require careful alignment with primary output. Machine speed means nothing if secondary trimming cannot keep pace. CNC routing or robotic trimming must match the primary cycle. If forming takes one minute but trimming takes three, trimming becomes the bottleneck. Production must be calculated holistically to find true limitations. We recommend mapping your entire workflow before purchasing.

Shortlisting Criteria: Matching Output Needs to Machine Capabilities

Buying the right equipment demands matching output goals to machine architecture. Different facilities have vastly different needs. An over-engineered system wastes capital. An under-engineered system chokes production.

Aligning output goals dictates your equipment choice. For low-volume, high-mix environments, prioritize fast tool-changeover features. Quick mold locks matter more than absolute cycle speed. Flexibility outpaces raw output here. For high-volume, low-mix environments, prioritize inline web-fed machines. Demand advanced cooling systems and automated stacking capabilities. Absolute consistency matters most for long runs.

Evaluating vendor claims protects your investment. Ask OEMs precise questions during the evaluation phase. Request a time-study simulation based on your specific part geometry. Ask them to account for your intended draw ratio. Their engineering answers will help you estimate actual thermoforming machine output reliably.

Compliance and energy efficiency also guide procurement. Advanced servo-driven machines stabilize production rates. Servo motors provide repeatable, precise movements. They do not fluctuate like older pneumatic cylinders. They meet stricter environmental and energy consumption standards. They perform much better than legacy systems.

Chart: Machine Architecture Comparison Chart

Conclusion

Calculating machine output requires managing multiple interconnected variables. It involves managing thermal dynamics and tooling efficiency. You must account for realistic downtime. It is never just about mechanical speed. Relying entirely on theoretical dry cycle calculations leads to major supply chain disruptions.

We strongly encourage buyers to request custom time-studies from equipment vendors. Supply them with your specific part drawings. Use OEE-adjusted calculations to finalize your shortlists. This realistic approach secures accurate ROI justification for your next capital purchase. It ensures your operations team can actually meet projected targets.

FAQ

Q: How does material thickness affect thermoforming cycle times?

A: Thicker materials require exponentially longer heating and cooling times. They must absorb more thermal energy to reach a formable state. They also take much longer to reach their heat deflection temperature before ejection. This heavy thermal demand directly reduces the overall cycles per hour.

Q: What is the ideal draw ratio for maximizing output?

A: Lower draw ratios generally maximize production speeds. They allow for faster cooling and result in lower scrap rates. High draw ratios require careful, slower heating to prevent material thinning. They also demand longer cooling durations inside the mold, noticeably slowing down the entire manufacturing cycle.

Q: How do you calculate parts per sheet?

A: Calculate this by dividing the usable machine platen area by the part footprint. You must account for standard webbing between parts. This clamping area is required to hold the sheet tight during forming. Failing to leave enough webbing causes material pull-out, leading to severe defects.

Q: What is a standard machine utilization rate in thermoforming?

A: Most commercial facilities target an Overall Equipment Effectiveness (OEE) of 75-85%. This realistic metric factors in tool setup times, routine maintenance, and standard defect rates. Expecting 100% utilization is entirely unrealistic and inevitably leads to severe supply chain shortfalls.
