MODEL-450/600B Customizable Automatic Mould Cutting Thermoforming Machine

MODEL-450/600B Customizable Automatic Mould Cutting Thermoforming Machine

Model: MODEL-450/600B
Suitable Sheet Materials: PLA, PET, PVC, Ps
Largest Forming Area: 600×450mm
Maximum Width: 620mm
Maximum Forming Depth: 80mm
Power: 20kw
Air Pressure: 0.6-0.8Mpa
Production Rate: 10-30 dies/min
Sheet Thickness: 0.10-1.0mm
Weight: 4200kgs
Floor Space: 9×2.5×2m (L×W×H)

Quantity:
Availability:





Inquire Add to Basket

Customizable Thermoforming Machine automatic thermoforming machine Mould Cutting Thermoforming Machine thermoforming machine

Product Description

Features

Application

Overview

The High-Speed Plastic Thin-Gauge Thermoforming Machine is a high-performance equipment specifically engineered to meet the demands of high-volume production in the plastic thermoforming industry. With its innovative design and advanced technology, this machine enables rapid and efficient production of thin plastic products, significantly increasing productivity while maintaining exceptional quality. It combines high-speed heating, precise forming, and quick cooling processes to achieve a fast cycle time, making it an ideal choice for manufacturers looking to boost their output without sacrificing product integrity. The machine's modular structure allows for easy customization and adaptation to different production requirements, ensuring maximum flexibility in the manufacturing process.

Suitable Sheet Materials

The MODEL-450/600B is designed to handle a variety of plastic materials, making it a versatile choice for different industries. The suitable sheet materials include:

· PLA (Polylactic Acid): A biodegradable plastic derived from renewable resources.

· PET (Polyethylene Terephthalate): Commonly used in packaging for its strength and clarity.

· PVC (Polyvinyl Chloride): Versatile and widely used in various applications.

· PS (Polystyrene): Offers excellent rigidity and clarity.

This wide range of suitable materials ensures that the MODEL-450/600B can meet the diverse needs of different industries, providing flexibility and efficiency in production.

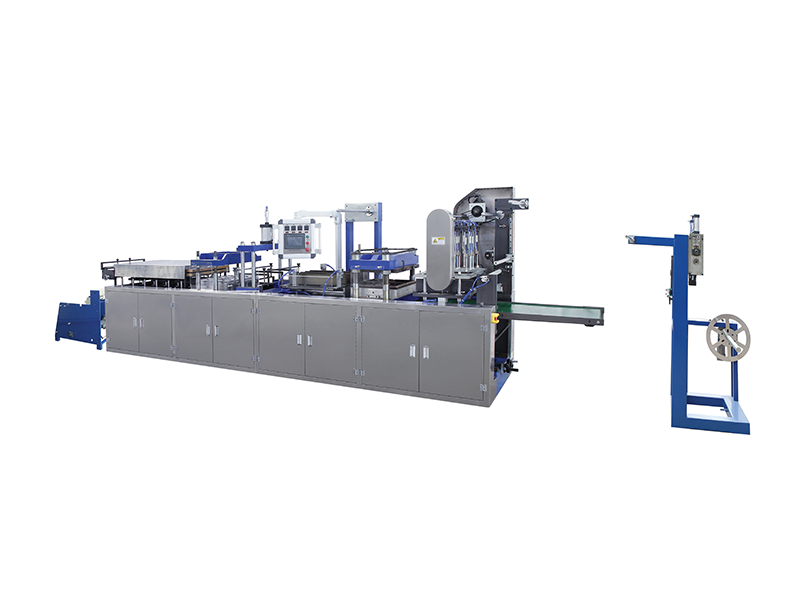

automatic thermoforming machine

1. Ultra-High-Speed Operation

The most notable feature of this thermoforming machine is its high-speed capabilities. It is equipped with powerful heating elements that can rapidly heat thin plastic sheets to the required forming temperature. The high-speed vacuum and pressure systems then quickly shape the heated plastic over the molds, followed by an efficient cooling mechanism that solidifies the formed products in a short time. This results in a significantly reduced cycle time, allowing for a much higher production rate compared to traditional thermoforming machines.

2. Advanced Material Handling System

The machine incorporates an intelligent material handling system that precisely feeds and positions the plastic sheets, ensuring accurate and consistent forming. The automatic sheet feeding mechanism can handle a wide range of sheet sizes and thicknesses, and it is designed to minimize material waste. Additionally, the system can be easily adjusted to accommodate different types of plastic materials, further enhancing the machine's versatility.

3. Enhanced Mold Compatibility

With its flexible mold mounting and adjustment features, the High-Speed Plastic Thin-Gauge Thermoforming Machine can work with a variety of molds. It supports quick mold changeovers, enabling manufacturers to switch between different product designs rapidly. The machine's precision mold alignment system ensures that each mold is accurately positioned, resulting in high-quality formed products with sharp details and consistent dimensions.

4. Robust and Durable Construction

Built with high-quality materials and components, the machine is designed to withstand the rigors of continuous high-speed operation. Its sturdy frame and reliable mechanical and electrical systems provide long-term stability and durability, reducing the need for frequent maintenance and repairs. This not only saves on maintenance costs but also ensures minimal production downtime, maximizing overall productivity.

1. Large-Scale Packaging Production

For companies involved in large-scale packaging manufacturing, such as those producing packaging for consumer goods on a mass scale, this high-speed thermoforming machine is a game-changer. It can rapidly produce large quantities of packaging products, such as plastic cups, bowls, and lids, to meet the high demand of the market. The machine's ability to maintain high quality during high-speed production ensures that the packaging products are both functional and visually appealing.

2. Disposable Product Manufacturing

In the production of disposable products like cutlery, plates, and trays, the High-Speed Plastic Thin-Gauge Thermoforming Machine offers a cost-effective and efficient solution. The high production rate allows manufacturers to produce large volumes of these products in a short period, reducing production costs and increasing profitability. Moreover, the machine's precision ensures that the disposable products meet the required quality standards for safe and convenient use.

3. Plastic Film and Sheet Conversion

The machine is also suitable for converting plastic films and sheets into various end products. It can be used to produce plastic bags, shrink wraps, and other flexible packaging materials. The high-speed operation and precise forming capabilities make it possible to produce these products with consistent quality and at a competitive price.

4. Consumer Electronics Packaging

In the consumer electronics industry, where the demand for stylish and protective packaging is high, this thermoforming machine can produce high-quality plastic packaging for electronic devices. Its ability to create complex shapes and incorporate features like clear windows and snap-fit closures makes it an excellent choice for packaging smartphones, tablets, and other consumer electronics products.
