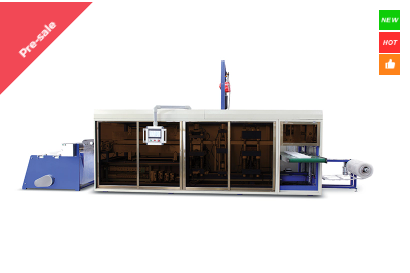

The MODEL-500/600L is a multi-station automatic thermoforming machine designed for producing thin-gauge plastic packaging and formed products from roll-fed sheet. The machine integrates forming, punching and cutting into a continuous production process, helping reduce separate processing steps and manual handling.
It supports PP+PE, Casting PP, PP, PLA, PET, BOPS, PVC, PS and Foam PS sheets, with a maximum forming area of 600 × 500 mm, maximum forming depth of 90 mm and production rate of 10–30 cycles per minute.
| Quantity: | |
|---|---|
The MODEL-500/600L is a multi-station automatic thermoforming machine designed for continuous production of thin-gauge plastic products. It integrates forming, punching and cutting into one coordinated production process, helping reduce separate processing steps and manual handling between operations.
The machine supports PP+PE, Casting PP, PP, PLA, PET, BOPS, PVC, PS and Foam PS sheets, with a maximum forming area of 600 × 500 mm and a specified production rate of 10–30 cycles per minute.
| 600 × 500 mm Maximum Forming Area | 620 mm Maximum Sheet Width | 90 mm Maximum Forming Depth | 10–30 Cycles / Minute |
The MODEL-500/600L is designed for manufacturers that require forming, punching and cutting to be completed within one multi-station thermoforming system.
It processes specified plastic sheet thicknesses from 0.10 to 1.50 mm and supports a range of thermoplastic materials including PP, PET, PLA, PS, PVC, BOPS and Foam PS.
With a maximum forming area of 600 × 500 mm, the machine can be used for food packaging, pharmaceutical trays, cosmetic packaging, hardware packaging and other thin-gauge thermoformed products, depending on product design and mould configuration.
The MODEL-500/600L can be configured with different moulds for a range of thin-gauge thermoformed products. Actual suitability depends on product geometry, material, sheet thickness and production requirements.
 Food Trays & ContainersSuitable for thin-gauge plastic trays, takeaway containers and other formed food-packaging products. |  Clear Plastic PackagingTransparent thermoformed trays and packaging for applications where product visibility is required. |
 Insert & Protection TraysFormed inserts and trays for holding, separating and protecting products. |  Custom Formed PackagingThermoformed packaging for pharmaceutical, cosmetic, hardware and other product applications. |
Plastic sheet is automatically fed into the machine and processed through heating, forming, punching and cutting stages to obtain the finished thermoformed product.
| 01 Sheet Feeding | → | 02 Heating | → | 03 Forming |
↓
| 04 Punching | → | 05 Cutting | → | 06 Finished Product |
01 Automatic Sheet FeedingThe automatic sheet feeding system uses a square-steel structure designed for stable and efficient sheet transport. Automatic feeding also helps improve feeding accuracy during continuous production. | 02 PID Temperature ControlThe machine uses a PID temperature-control system for precise heating control, with a specified temperature-control tolerance below 1°C. |
03 Pneumatic Sheet HolderThe sheet holder is controlled by a pneumatic cylinder and can move up and down, helping simplify operation and sheet handling during production setup. | 04 Movable Mould DeviceThe movable mould device is designed to make mould assembly and removal more convenient when changing products or production setups. |
| <1°C Specified PID Temperature-Control Tolerance |
The MODEL-500/600L supports a range of thermoplastic sheet materials. Material selection should be matched to product requirements, forming conditions and mould design.
PP+PE Casting PP PP PLA PET BOPS PVC PS Foam PS
Core technical data for preliminary MODEL-500/600L machine selection.
| Model | MODEL-500/600L |
| Suitable Sheet | PP+PE, Casting PP, PP, PLA, PET, BOPS, PVC, PS, Foam PS, etc. |
| Maximum Forming Area | 600 × 500 mm |
| Maximum Sheet Width | 620 mm |
| Maximum Forming Depth | 90 mm |
| Sheet Thickness | 0.10–1.50 mm |
| Production Rate | 10–30 cycles/min |
| Machine Power | 96 kW |
| Working Air Pressure | 0.6–0.8 MPa |
| Machine Weight | 6500 kg |
| Floor Space | 11 × 3 × 4 m (L × W × H) |
The MODEL-500/600L uses a movable mould device designed to simplify mould assembly and removal.
For a new thermoforming project, customers can provide product samples, drawings, product dimensions, sheet material and target production requirements for machine and mould evaluation.
| ✓ Forming, punching and cutting integrated into one production process |
| ✓ 600 × 500 mm maximum forming area |
| ✓ 0.10–1.50 mm specified sheet-thickness range |
| ✓ Supports multiple thermoforming sheet materials |
| ✓ PID temperature control with tolerance below 1°C |
| ✓ Movable mould device for more convenient mould handling |
MINGDU provides technical guidance for customer production projects, together with machine installation, commissioning and technical-personnel training.
Before machine selection, customers can provide the intended product, sheet material, thickness, product dimensions and production requirements so that the project can be evaluated more efficiently.
Information to Send for a Quotation• Product sample, photo or drawing • Plastic sheet material • Sheet thickness • Product dimensions (L × W × H) • Required production capacity |
The machine specification lists PP+PE, Casting PP, PP, PLA, PET, BOPS, PVC, PS and Foam PS sheets.
The maximum forming area of the MODEL-500/600L is 600 × 500 mm.
The specified sheet-thickness range is 0.10–1.50 mm.
The specified production rate is 10–30 cycles per minute. Actual output may vary depending on product design, material, mould layout and forming requirements.
The MODEL-500/600L uses a movable mould device designed to make mould assembly and removal more convenient. The required mould configuration depends on the specific product and production project.
