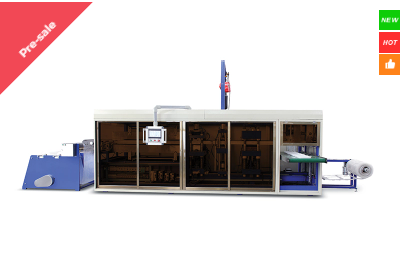

MODEL-500L High-Precision Plastic Thermoforming Machine

Overview

The High-Precision Plastic Thermoforming Machine is a cutting-edge solution for the plastic manufacturing industry, designed to deliver exceptional accuracy and quality in the production of plastic products. This machine operates by heating plastic sheets to a malleable state and then shaping them into precise forms using molds. With its advanced technology and robust construction, it can handle a wide variety of plastic materials, including PET, PVC, PP, and more. Whether you need to produce small, intricate components or large, complex parts, this thermoforming machine provides the reliability and precision required to meet the most demanding manufacturing standards. Its user-friendly interface and automated processes make it suitable for both experienced operators and those new to the thermoforming process, streamlining production and enhancing overall efficiency.

Features

1. Precision Temperature Control

Equipped with state-of-the-art temperature sensors and advanced control systems, this machine ensures uniform heating of plastic sheets. The ability to precisely regulate temperature down to the smallest degree allows for consistent material softening, preventing overheating or underheating that could lead to product defects. This precision is crucial for achieving accurate and repeatable results, especially when working with materials that have specific temperature requirements for optimal forming.

2. High - Resolution Mold Alignment

The High-Precision Plastic Thermoforming Machine features a sophisticated mold alignment system. Using high-precision linear guides and servo motors, it can position molds with micron-level accuracy. This ensures that the plastic sheet is evenly formed around the mold, resulting in products with consistent wall thicknesses, sharp edges, and detailed surface features. The ease of mold installation and adjustment further enhances the machine’s versatility, allowing for quick transitions between different product designs.

3. Automated Production Process

To maximize efficiency and minimize human error, the machine is designed with an automated production process. From sheet feeding and heating to forming, trimming, and ejection, each step can be programmed and controlled through the intuitive touchscreen interface. The built-in PLC (Programmable Logic Controller) system enables operators to set precise parameters for each stage of the process, and it can also store multiple production recipes for easy recall when repeating jobs. This automation not only speeds up production but also ensures that every product meets the same high-quality standards.

4. Advanced Material Handling

The machine comes with an intelligent material handling system that can accurately feed plastic sheets of various sizes and thicknesses. The automated sheet clamping mechanism securely holds the sheet in place during heating and forming, preventing any movement or shifting that could affect the quality of the final product. Additionally, the system can be adjusted to accommodate different types of plastic materials, providing flexibility in production and reducing the need for manual intervention.

Applications

1. Medical Device Manufacturing

In the medical field, precision and hygiene are of utmost importance. This thermoforming machine is ideal for producing medical trays, specimen containers, and disposable medical devices. Its ability to create products with consistent dimensions and smooth surfaces helps meet strict medical regulations and ensures the safety and functionality of the final products.

2. Aerospace Industry

For the aerospace sector, where lightweight and high-strength components are essential, the High-Precision Plastic Thermoforming Machine can produce interior trim parts, instrument covers, and other plastic components. The precision of the machine ensures that these parts fit perfectly within the aircraft’s complex structure, contributing to both the performance and aesthetics of the vehicle.

3. Consumer Electronics

In the production of consumer electronics such as smartphones, tablets, and laptops, this machine can be used to create protective cases, bezels, and other plastic enclosures. The ability to form complex shapes with high precision allows for the integration of features like buttons, ports, and camera cutouts, enhancing the functionality and design of the electronic devices.

4. Automotive Interior Components

The automotive industry benefits from the machine’s precision in manufacturing interior components such as door panels, center console covers, and dashboard trim. These parts not only need to be aesthetically pleasing but also fit precisely within the vehicle’s interior space. The High-Precision Plastic Thermoforming Machine can meet these requirements, producing components that enhance the overall quality and comfort of the automotive interior.
