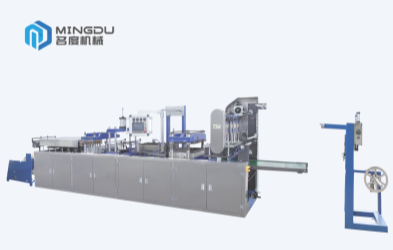

The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC plastic products.
Stacking with robots improves efficiency and reduces labor cost
Laser knife device, less mold cost, to prevent the loss of small orders
Compact structure, stable operation, simple operation, convenient maintenance
Servo adjustment, interface touching screen
Adjustable moving-trip, mould replacement is simple
Packaging Industry: Ideal for producing blisters, clamshell packaging, and other types of plastic packaging. It can form a variety of plastic materials to meet different packaging needs.
Food and Beverage Sector: Used to produce food - grade plastic containers, trays, and lids. The machine ensures the production of hygienic and safe packaging for food products.
Medical Field: Produces disposable medical trays, containers, and other medical - grade plastic products. The precision forming ensures the products meet medical standards.
Industrial Parts Production: Capable of forming various industrial plastic components, such as covers, housings, and insulation parts.
Consumer Goods: Produces plastic products for daily use, such as household items, toys, and electronic device cases.
| Model | MODEL-450/600 |
| Suitable Sheet | PLA, PET, PVC, PS |
| Largest Forming Area | 450×600mm |
| Maximum Width | 620mm |
| Maximum Depth | 80mm |
| Power | 28Kw |
| Air Pressure | 0.6-0.8Mpa |
| Production rate | 10-30die／min |
| Depth of Sheet Material | 0.10mm-1.0mm |
| Weight | 4300Kgs |
| Floor Space | 7×2.5×2m(L×W×H) |
