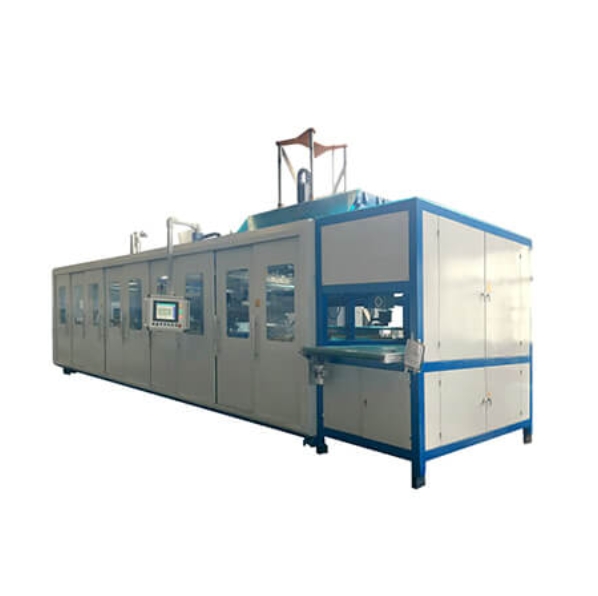

Constructed with a rigid alloy steel framework and corrosion-resistant components, the machine meets international standards such as CE and ISO 9001, ensuring reliability in harsh industrial environments. It accommodates a wide range of thermoplastic materials—including ABS, PC, PEEK, and PEI—with sheet thicknesses from 0.5mm to 6mm, making it ideal for industries where precision is non-negotiable, such as medical device manufacturing, aerospace component production, and high-end electronics.
Advanced Servo-Driven Alignment System: Equipped with laser-guided linear bearings and high-resolution encoders, the machine achieves ±0.05mm positional accuracy during sheet clamping and mold closure, eliminating defects like flash formation or misalignment. This ensures uniform wall thickness and seamless bonding of the two sheets.
Dual-Zone Adaptive Heating Technology: Independent upper and lower infrared heating panels (temperature range: 50°C–500°C) feature real-time thermal mapping to optimize heat distribution for different materials. Proprietary algorithms adjust heating profiles based on material type and part geometry, reducing energy waste by 25% while ensuring consistent sheet plasticity.
Intelligent Process Control Interface: A 19-inch touchscreen HMI integrated with a PLC system allows operators to store and recall up to 500 custom process recipes, including pressure (0–200 bar), vacuum (0–100kPa), and cooling parameters. This enables rapid setup for new part designs, reducing changeover time by 30% compared to conventional machines.
Integrated Post-Processing Capabilities: An optional high-precision water-jet trimming system ensures burr-free edges and precise cutouts for connectors or mounting features, eliminating the need for secondary operations. Additionally, a surface texturing module can apply micro-ribs, logos, or anti-slip patterns directly during the forming process.
Medical Device Manufacturing: Ideal for producing sterile fluid management systems, inhaler components, and diagnostic instrument housings that require biocompatible material compatibility (e.g., USP Class VI plastics) and smooth internal surfaces to meet FDA and ISO 13485 standards.
Aerospace & Defense: Fabricates lightweight, flame-resistant components such as aircraft interior panels, ducting systems, and avionics enclosures from high-temperature materials like PEI and PPS, ensuring compliance with FAR 25.853 fire safety regulations.
High-End Electronics: Manufactures protective enclosures for industrial control systems, IoT devices, and premium consumer electronics, delivering precise cutouts for connectors and seamless integration of EMI-shielding layers during the forming process.
Optical Components: Forms lens housings and light guides with optical-grade surface finishes (Ra ≤ 0.2μm), utilizing the machine's ultra-precise mold alignment to minimize optical distortion.
Q: What is the minimum feature size that can be formed with this machine?
A: The machine can consistently produce features as small as 0.5mm in diameter, such as micro-channels or threaded inserts, depending on material rigidity and part depth.
Q: How does the adaptive heating system handle different material thicknesses?
A: Infrared sensors measure sheet temperature in real time, and the PLC adjusts heating intensity and duration for each zone independently, ensuring uniform melting even for multi-layer or gradient-thickness sheets.
Q: Is the machine suitable for forming conductive plastic composites?
A: Yes, it can process conductive materials like carbon-fiber-reinforced ABS or antistatic PP, with special grounding systems to prevent electrostatic discharge during the forming process.
