Ever wondered how lightweight, durable plastic products are made? Twin sheet forming machines are key to this process. They produce hollow plastic parts used across industries like automotive, packaging, and consumer goods.
In this article, we’ll dive into how these machines work, their features, advantages, and the industries they serve.
A twin sheet forming machine works by simultaneously heating two sheets of plastic material. These sheets are then drawn into separate molds, which shape them into complex geometries. After forming, the two sheets are pressed together to create a hollow structure.
1. Heating: Two plastic sheets are heated at the same time to become flexible.
2. Drawing: The sheets are drawn into molds, shaping them into the desired form.
3. Joining: The heated sheets are then pressed together, creating a seamless, hollow part.
4. Vacuum and Pressure: Both vacuum and pressure are used to ensure the sheets conform tightly to the mold, preventing air pockets and ensuring precision.
Twin sheet forming differs from other methods like vacuum forming and injection molding.
● Vacuum Forming: In vacuum forming, a single plastic sheet is heated and then sucked into a mold. This method forms solid parts without the ability to create a hollow structure.
● Injection Molding: Injection molding injects molten plastic into a mold to form solid parts. Unlike twin sheet forming, it doesn't create hollow or double-walled structures.
Each method has its own advantages, but twin sheet forming excels in producing lightweight, durable, and complex parts, especially when a hollow design is required.
Twin sheet forming machines are often fully automated, meaning less manual labor and higher efficiency. The automation process allows for quicker production cycles, reducing the need for a large workforce. It also ensures consistent quality and reduces the chances of human error, which is crucial for high-volume manufacturing. In large-scale production, automation is vital for increasing output while lowering costs.
Twin sheet forming machines can process various types of plastic materials. Common ones include:
● Polypropylene (PP): Known for its durability and heat resistance, PP is used for products like hot beverage containers.
● Polystyrene (PS): A versatile plastic, PS is often used for clear cups or packaging materials.
● Polyethylene Terephthalate (PET): PET is great for creating clear, strong cups and containers, and it’s also recyclable.
In addition to plastics, twin sheet forming can integrate paper components like paper lids for hybrid packaging, which helps meet sustainability demands. This flexibility allows manufacturers to create eco-friendly products that combine plastic and biodegradable materials.
One of the standout features of twin sheet forming machines is their precision in molding. These machines can create custom molds, allowing for a variety of product shapes and sizes. Whether it’s creating intricate designs or parts with different surface textures, twin sheet forming offers significant versatility.
The ability to produce parts with varying wall thicknesses and internal chambers makes it especially useful for creating products like double-walled cups or containers that need extra insulation. The machines can also handle complex geometries, providing designers with more creative freedom and reducing the need for additional manufacturing steps.
Twin sheet forming machines are commonly used in the production of disposable plastic cups. These cups are often integrated with paper lids, offering a hybrid packaging solution that is both functional and environmentally friendly. The versatility of these machines allows for a wide range of cup sizes and designs, meeting the diverse needs of the beverage and food industries. Whether for coffee cups, take-out containers, or other single-use products, twin sheet forming ensures high efficiency and quality in production.
Beyond packaging, twin sheet forming is used in many other industries, including:
● Automotive Components: Parts like fuel tanks and air ducts benefit from the lightweight, durable nature of twin sheet forming. The ability to produce hollow parts helps reduce the weight of automotive components without compromising strength.
● Marine and Aerospace: Lightweight yet sturdy storage containers and structural parts are made using twin sheet forming. These products are crucial in industries where strength and weight reduction are essential, such as in aircraft and marine applications.
● Consumer Products: Twin sheet forming is used in manufacturing coolers, furniture, and sports equipment. These items benefit from the durability and insulation properties of the double-walled, hollow design.
● Industrial Packaging: Products like pallets, bins, and protective casings are commonly made with twin sheet forming. These items require durability and the ability to withstand heavy-duty conditions, making twin sheet forming a cost-effective solution for industrial packaging needs.
Advantage | Description |
Cost-Effective Production | - Reduces material waste by using two sheets to create hollow parts. - Lowers labor costs through automation. - Lower tooling costs compared to injection molding and other methods. |
Design Flexibility | - Can create complex and custom designs with minimal retooling. - Enables integration of hybrid materials for sustainable products. |
Durability and Lightweight Construction | - Parts have a strong-to-weight ratio, making them durable yet lightweight. - Ideal for portable products like automotive components and coolers. |
Sustainability | - Uses recycled plastics to support eco-friendly manufacturing. - Allows integration of biodegradable paper components, like paper lids with plastic cups. |
The sheet holders play a crucial role in securing the plastic sheets during the forming process. They hold the sheets in place while they are heated, ensuring proper alignment and preventing movement that could affect the quality of the final product.
The heating units are responsible for making the plastic sheets flexible. These units typically use infrared or convection heating. Infrared heating uses radiant heat to directly warm the plastic, while convection heating circulates hot air around the sheets to gradually raise their temperature to the required level for forming.
The mold assembly is where the magic happens. It consists of two molds—male and female—that shape the heated plastic sheets. These molds create the desired geometry of the final part, ensuring it matches the specifications.
Once the sheets are formed, the cooling systems quickly cool the parts to solidify them. The cooling process is critical for maintaining the shape and preventing warping. The trimming mechanisms are then used to remove any excess material, ensuring the final part has precise dimensions.
Twin sheet forming machines are equipped with PLC systems (Programmable Logic Controllers) to automate the production process. These systems control everything, from sheet feeding and heating to mold closing and part ejection. Automation ensures consistent results and reduces the need for manual intervention.
Real-time monitoring and diagnostics are also integrated into these machines, which are essential for quality control. These systems help detect any issues during production, allowing for quick adjustments and minimizing defects in the final product.
● Rising demand for eco-friendly solutions in disposable products.
● Twin sheet forming creates hybrid packaging, like plastic cups with paper lids, to meet sustainability goals.
● Supports environmentally conscious manufacturing practices while maintaining functionality and convenience.
● IoT integration makes production smarter and more efficient:
○ Real-time performance monitoring.
○ Optimizes production processes.
○ Speeds up issue resolution.
● The future of sustainability in twin sheet forming includes:
○ Increased use of biodegradable materials.
○ Allows for eco-friendly production without sacrificing quality.
● Rise of personalized production:
○ Customized packaging and consumer goods.
● On-demand manufacturing enables:
○ Quick adaptation of molds for customer-specific needs.
○ Efficient production of small batches.
● Ideal for responding to niche markets and changing consumer preferences.
A twin sheet forming machine is a versatile tool used to create hollow plastic parts. It works by heating and shaping two plastic sheets, then joining them together. This process offers benefits like cost-effectiveness, design flexibility, and sustainability. Twin sheet forming is essential in industries like packaging, automotive, and consumer goods, providing durable, eco-friendly solutions.
As industries focus on sustainability, twin sheet forming technology plays an increasingly vital role in modern manufacturing, helping create high-quality, sustainable products.

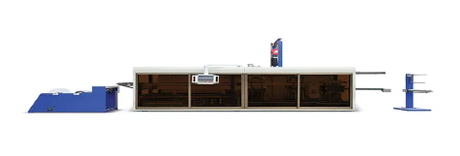

At Wenzhou Mingdu Machinery, we specialize in automatic plastic forming machines, backed by over 15 years of experience in developing cutting-edge process equipment. Our machines are designed to deliver stable performance and flexibility, capable of producing high-quality products like coffee lids, lunch boxes, and medicine trays from materials like PP, PS, PET, and PVC.
By choosing our twin sheet forming machines, you’ll benefit from cost-effective production, design flexibility, and sustainable solutions tailored to your business needs. Our people-oriented approach means we offer exceptional technical guidance, installation support, and training, ensuring your production line operates at its best.
Ready to explore how Mingdu can help drive your business forward? Contact us today to learn more about our twin sheet forming solutions and how we can help you achieve both high-quality results and sustainable growth.
Q: What are the main benefits of twin sheet forming over other molding processes?
A: Twin sheet forming offers cost-effectiveness, faster production times, and material versatility. Compared to injection molding, it has lower tooling costs and shorter cycle times. Unlike blow molding, it can produce hollow parts, reducing material waste.
Q: Can twin sheet forming produce parts in different colors or materials?
A: Yes, twin sheet forming allows for dual-material and dual-color parts. You can use different materials like PP and PET on each side, enabling diverse designs and functional features for various products.
Q: What types of industries benefit the most from using twin sheet forming machines?
A: Industries like packaging, automotive, and consumer goods benefit from twin sheet forming, offering solutions like coffee lids, fuel tanks, and coolers.
Q: How do I choose the right twin sheet forming machine for my business needs?
A: Choose a twin sheet forming machine based on your production volume, part complexity, and material compatibility. Wenzhou Mingdu Machinery offers tailored solutions to meet diverse industry needs.
