Thermoforming is a manufacturing process that involves shaping plastic sheets into specific forms using heat and pressure. Among the various types of thermoforming machines, the multi-station thermoforming machine stands out as one of the most efficient and versatile solutions in plastic processing. This advanced machine allows for the simultaneous operation of multiple processes within a single unit, including sheet feeding, forming, cutting, and stacking, all while maintaining high production rates and minimizing labor costs.
In this article, we will explore the concept of multi-station thermoforming machines, their components, advantages, and the specific offerings from Wenzhou Mingdu Machinery, a leading manufacturer in the field.

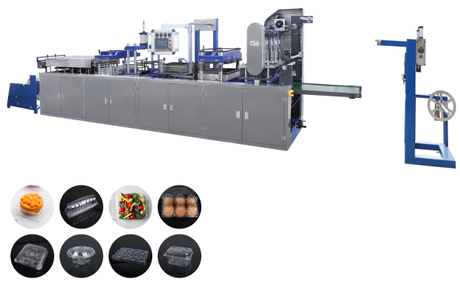

A multi-station thermoforming machine is designed to process plastic sheets through multiple stages or "stations" in a continuous workflow. Each station in the machine is dedicated to a specific function, such as feeding the sheet, heating it, forming the plastic over a mold, cutting it into precise shapes, and then stacking the finished products.
These machines are particularly useful in industries where high production volumes are needed, such as in the food packaging, medical tray, and cosmetic packaging industries. They are highly valued for their efficiency and flexibility in processing various types of plastic materials, including PP (Polypropylene), PET (Polyethylene Terephthalate), PVC (Polyvinyl Chloride), and PLA (Polylactic Acid).
The basic working principle of a multi-station thermoforming machine involves the use of multiple integrated stations that work together seamlessly to maximize production efficiency. Key components of such machines include:
| Component | Function |
|---|---|
| Unwinding Station | Feeds the plastic sheets into the system, ensuring a consistent flow. |
| Pre-Heating Station | Heats the plastic sheets to the required temperature for forming. |
| Forming Station | Shapes the heated plastic over a mold using pressure or vacuum. |
| Cutting Station | Cuts the formed plastic into precise shapes according to mold designs. |
| Stacking Station | Automatically stacks the finished products for packaging. |
| Cooling Station | Cools the formed plastic to solidify it and prepare it for further handling. |
These stations operate simultaneously, allowing the machine to process several sheets in parallel, making it much more efficient than single-station machines.
The primary advantages of using a multi-station thermoforming machine are its efficiency, flexibility, and cost-effectiveness. Let's delve into some of the core benefits these machines provide:
Higher Productivity:
Multi-station thermoforming machines can operate multiple processes at once. This reduces cycle times significantly and increases the overall production rate. Depending on the machine configuration, a typical multi-station thermoforming machine can produce up to 30 dies per minute, ensuring a continuous and efficient production process.
Versatility in Material Handling:
These machines are compatible with a wide range of materials such as PP, PET, PVC, PLA, and others. They can process different thicknesses (typically between 0.1mm and 1.5mm) and form complex shapes with ease.
Low Labor Costs:
Automation plays a crucial role in reducing human intervention. From feeding the sheets to stacking the finished products, much of the process is automated, minimizing the need for labor-intensive operations and reducing the risk of errors.
Cost-Effective Operation:
Multi-station thermoforming machines, while requiring an initial investment, offer long-term cost savings by maximizing production output with fewer resources. The ability to work with different materials further enhances their cost-effectiveness, as manufacturers can adapt to different market needs with minimal adjustments.
Quick Changeover Time:
These machines come with advanced features like movable mold devices and quick mold changes, allowing operators to switch between different product types and mold configurations quickly. This flexibility ensures faster transition times between production runs, boosting overall machine uptime.
Precision and Quality Control:
Features like PID temperature control and precision vacuum pressure systems ensure that each product meets the desired specifications. The temperature tolerance of ±1ºC ensures consistent results and maintains product quality across large production batches.
Remote Maintenance:
Many modern multi-station thermoforming machines come with remote maintenance capabilities. This feature allows engineers to diagnose issues remotely, making repairs and adjustments without the need for a physical visit, saving both time and money.
Space-Saving Design:
Despite their multiple stations, these machines are often designed with compact layouts, meaning that they can fit into factory spaces without requiring a large floor area. For instance, the MODEL-500/600L machine from Mingdu requires just 11×3×4 meters of space, making it suitable for smaller manufacturing floors.

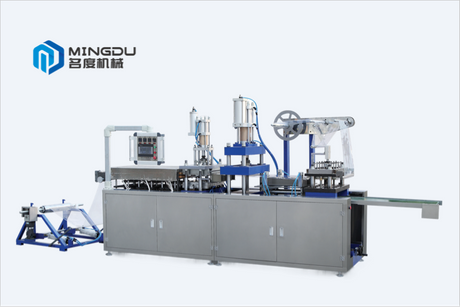

Wenzhou Mingdu Machinery has established itself as a leader in the manufacturing of high-speed multi-station thermoforming machines. One such example is the MODEL-500/600L, a high-performance machine specifically designed for the production of plastic lids. This model is known for its versatility, precision, and efficiency.
| Specification | Details |
|---|---|
| Suitable Materials | PP+PE, Casting PP, PLA, PET, PVC, PS, Foam PS, etc. |
| Largest Forming Area | 600×500mm |
| Maximum Width | 620mm |
| Maximum Forming Depth | 90mm |
| Power | 96kw |
| Air Pressure | 0.6-0.8Mpa |
| Production Rate | 10-30 dies/min |
| Sheet Thickness | 0.10mm-1.50mm |
| Machine Weight | 6500kgs |
| Floor Space | 11×3×4m (L×W×H) |
Automatic Sheet Feeder: Ensures accurate and consistent feeding of the plastic sheets into the machine for uninterrupted production.
Movable Cylinder-Controlled Sheet Holder: Simplifies the operation and enhances labor efficiency by making the sheet handling process smoother.
Precision PID Temperature Control: Provides precise control over the heating process, ensuring uniformity in the final product quality.
Quick Mold Change: Facilitates fast mold replacement, reducing downtime and ensuring that production can be switched between different product types effortlessly.
Low Failure Rate: The machine is designed for durability and reliability, with a low failure rate and an integrated alert system for quick troubleshooting.
These features make the MODEL-500/600L an ideal choice for manufacturers seeking an efficient, reliable, and cost-effective solution for their thermoforming needs.
Multi-station thermoforming machines are used in various industries, including:

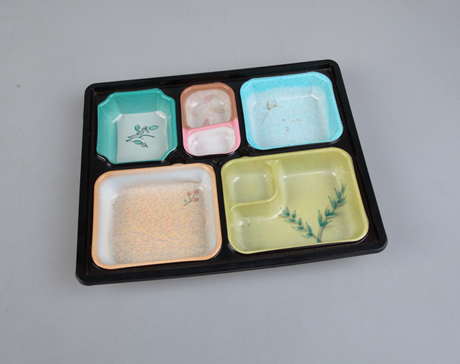

Food Packaging: For producing containers, trays, lids, and clamshells that are used in the packaging of fresh produce, snacks, and ready-to-eat meals.
Medical: In manufacturing medical trays, blister packs, and other protective packaging for pharmaceutical products.
Cosmetics: For creating containers and packaging for beauty products like creams, powders, and lotions.
Consumer Electronics: Producing trays and protective packaging for electronic devices.
Mingdu Machinery’s high-speed multi-station thermoforming machines provide manufacturers with a comprehensive solution for efficient plastic production. The company’s commitment to quality, innovation, and customer support ensures that its machines are not only reliable but also tailored to meet specific production needs.
For more information on Mingdu’s multi-station thermoforming machines or to request a quote, visit our product page and get in touch with our team today.
