Acrylic thermoforming is widely used for transparent covers, displays, signs, lighting components and other plastic parts where optical clarity and surface appearance are important.
Acrylic, also known as PMMA (polymethyl methacrylate), can be heated until flexible and then formed over or into a mold using vacuum, pressure or mechanical forming methods.
Its major advantages include excellent clarity, good surface appearance and weatherability. However, thermoforming acrylic also requires careful control of temperature, heating uniformity, mold design and cooling because PMMA is less forgiving of sharp stress concentrations than materials such as ABS.
This guide explains the practical factors manufacturers should consider when heating, forming and designing thermoformed acrylic parts.
Acrylic is an amorphous thermoplastic, which means it gradually softens as temperature increases rather than melting abruptly at one specific temperature.
This behavior makes acrylic suitable for processes including:
Vacuum forming
Pressure forming
Drape forming
Free blowing
Mechanical forming
Its main advantages include:
Excellent optical clarity
Good surface gloss
Good weather resistance
Availability in clear, translucent and colored sheets
Ability to form smooth curved surfaces
Good mold-detail reproduction under suitable conditions
Clear acrylic sheet can transmit approximately 92% of visible light, which is one reason PMMA remains widely used for displays, covers, lighting and glazing-type products.
There is no universal acrylic forming temperature.
The correct forming window depends strongly on whether the acrylic sheet is extruded, cast or impact-modified.
Typical ACRYLITE reference values include:
| Acrylic Type | Typical Forming Temperature |
|---|---|
| Extruded acrylic sheet | 290–320°F / 145–160°C |
| Cell-cast acrylic sheet | 340–380°F / 170–195°C |
These values are useful references rather than universal settings.
The correct temperature also depends on:
Sheet grade
Sheet thickness
Heating method
Part depth
Surface finish
Required mold detail
Forming speed
The important value is the actual acrylic sheet temperature, not simply the heater setting.
A heater may operate significantly hotter than the sheet itself.
If the sheet has not reached the correct forming condition, manufacturers may see:
Poor mold definition
Incomplete corners
High forming stress
Cracking
Excessive springback
Excessive heating may lead to:
Excessive sag
Surface marks
Bubbles or blistering
Uncontrolled thinning
Longer cooling cycles
For production, the sheet manufacturer's technical data should always be the starting point.
Not all PMMA sheet behaves the same way.
Extruded acrylic generally forms more easily because of its lower molecular weight.
It can provide:
Easier stretching
Good mold detail
Lower forming temperatures
Faster forming cycles
However, extruded sheet is also more sensitive to uneven heating.
Cell-cast acrylic has higher molecular weight and greater hot strength.
This can provide better resistance to uncontrolled stretching, but it normally requires:
Higher forming temperatures
More heating time
Greater forming force
More careful process control
ACRYLITE notes that higher-molecular-weight cast sheet has better hot strength but is more difficult to form, while lower-molecular-weight extruded acrylic forms more easily and reproduces detail well.
The right material therefore depends on the geometry and optical requirements of the finished part.
Uniform heating is one of the most important factors in thermoforming acrylic.
If one region becomes substantially hotter than another, the hotter area stretches more easily and may become thinner.
Uneven heating can cause:
Distorted shapes
Uneven wall thickness
Optical distortion
Poor mold detail
Internal stress
Radiant or infrared heating can work efficiently for thinner sheet because heat can reach the sheet core relatively quickly.
Thicker acrylic requires more time for heat to move from the surface into the center of the sheet.
Heating the surface too aggressively can cause it to overheat before the center reaches forming temperature.
For thicker parts or products requiring high optical quality, convection heating may therefore provide better temperature uniformity. ACRYLITE similarly recommends convection heating for thicker sheet because excessive radiant surface heating can lead to blistering before the core reaches the required temperature.
Pre-drying acrylic is not always necessary.
Properly stored acrylic sheet can often be formed directly.
However, material that has absorbed excessive moisture may develop:
Bubbles
Blisters
Surface defects
during heating.
ACRYLITE states that pre-drying is rarely necessary under normal storage conditions, but recommends drying high-moisture sheet before thermoforming to prevent blistering.
For production, keep sheet protected until use and follow the specific supplier's storage and drying instructions.
Optical appearance is one of the main reasons manufacturers choose PMMA.
Acrylic can produce:

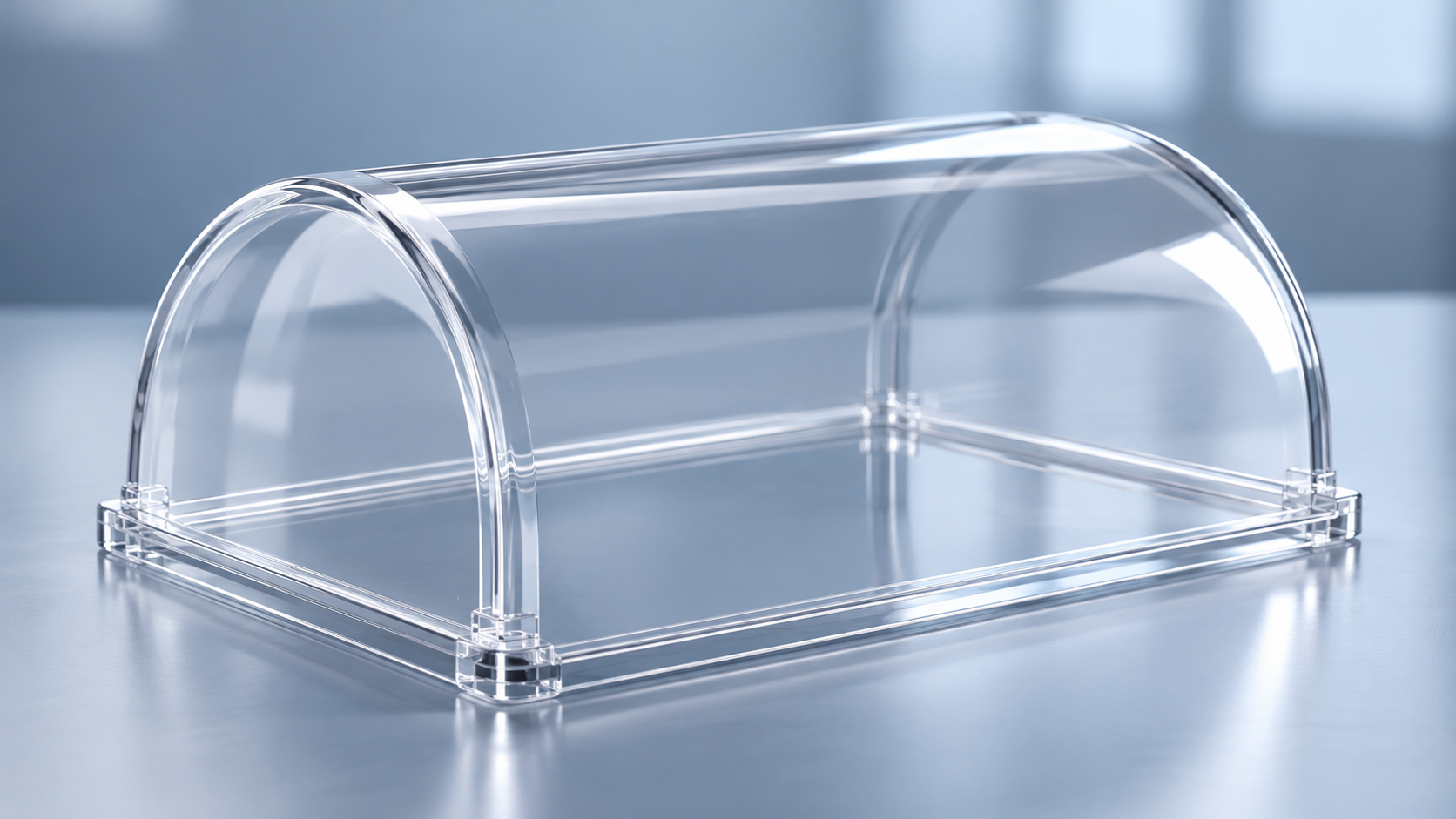

Clear covers
Transparent windows
Display components
Lighting lenses
Decorative panels
But thermoforming can reduce optical quality if the process introduces stress or surface damage.
Important factors include:
Clean sheet surfaces
Clean molds
Uniform heating
Smooth tooling
Controlled cooling
Proper forming speed
Dust or contamination trapped between the mold and a transparent acrylic sheet can become highly visible in the finished part.
For clear components, the forming area should therefore be kept especially clean.
Acrylic offers useful impact performance compared with ordinary glass, but standard PMMA is still relatively sensitive to notches, sharp corners and stress concentrations.
This becomes important during thermoforming and secondary machining.
Sharp transitions may increase the likelihood of:
Cracking
Crazing
Stress whitening
Failure around holes or trimmed edges
ACRYLITE specifically describes unmodified acrylic as a notch-sensitive material and warns that uncontrolled cutting or forming stresses can contribute to cracking.
For thermoformed acrylic parts, good design should therefore avoid unnecessarily sharp internal corners.
Mold design directly affects appearance, wall thickness and part release.
Acrylic sheet stretches around the mold during forming.
Very sharp corners concentrate stretching into a small area and can create:
Thin sections
High stress
Poor surface quality
Using smoother radii helps distribute the material more gradually.
Draft angles make the formed acrylic easier to remove from the mold.
Insufficient draft can increase:
Demolding force
Scratching
Internal stress
Part damage
The required draft depends on product depth, mold type and acrylic grade.
Air trapped between the sheet and mold must be removed quickly.
Poor mold venting can cause:
Rounded corners
Incomplete details
Trapped air
Poor surface reproduction
Vacuum holes should be positioned particularly carefully around deep pockets and fine mold features.
Good mold definition requires the right combination of:
temperature + vacuum or pressure + venting + forming speed.
Simply increasing forming pressure will not fix a sheet that is too cold.
Likewise, increasing temperature excessively may improve detail while creating unwanted wall thinning.
Higher-detail acrylic parts generally require forming toward the higher end of the recommended temperature range for that specific sheet.
For complex parts, manufacturers can also use:
Zoned heating
Pre-stretching
Plug assist
Improved mold venting
to control material distribution.
Acrylic can be processed using both vacuum forming and pressure forming.
Vacuum forming is suitable for many:
Signs
Covers
Display panels
Skylights
Guards
Shallow housings
Vacuum pulls the heated acrylic against the tool and is usually sufficient where extremely sharp detail is not required.
Pressure forming adds compressed air above the heated sheet while vacuum removes air beneath it.
This can improve:
Mold definition
Corner detail
Surface texture reproduction
Complex geometry
For acrylic products requiring more defined surfaces or detailed industrial geometry, a Pressure Forming Machine can provide more forming force than vacuum alone.
However, acrylic's optical surface should still be protected from unnecessary mold contact or excessive surface pressure.
A thermoformed PMMA part will not maintain the original sheet thickness everywhere.
As the acrylic stretches:
Deep walls become thinner
Corners may thin significantly
Shallow areas retain more material
The severity depends on:
Product depth
Draw ratio
Starting sheet thickness
Heating profile
Mold orientation
Plug assist
Forming temperature
For deep parts, thicker starting sheet is not always the only solution.
Better material distribution can sometimes be achieved through zoned heating or controlled pre-stretching.
Cooling is another important part of acrylic thermoforming.
The finished part must remain on the mold until it becomes dimensionally stable.
However, cooling must also be uniform.
Uneven cooling can introduce:
Warpage
Optical distortion
Internal stress
Dimensional variation
ACRYLITE recommends cooling both the surface and the interior of the sheet and warns that differential cooling can lead to poor surface quality, warping and forming stresses.
Manufacturers should therefore avoid directing intense cold air at only one region of the part.
Possible causes:
Sheet temperature too low
Insufficient vacuum or pressure
Poor mold venting
Possible causes:
Moisture in the sheet
Heating too rapidly
Excessive surface temperature
Possible causes:
Excessive forming stress
Sharp corners
Uneven heating
Aggressive trimming or machining
Possible causes:
High draw ratio
Uneven sheet temperature
Tight mold geometry
Possible causes:
Uneven heating
Mold surface defects
Uneven cooling
Excessive forming stress
When transparent appearance matters, process stability is especially important because defects that may be acceptable in an opaque part can become highly visible in clear acrylic.
Acrylic thermoforming is widely used for products such as:
Illuminated signs
Point-of-purchase displays
Transparent covers
Lighting diffusers
Machine guards
Protective windows
Skylights
Decorative panels
Retail fixtures
Instrument covers
It is particularly attractive where the final product requires both three-dimensional geometry and high optical clarity.
Acrylic is particularly strong when:
Optical clarity is a priority
Surface appearance matters
Outdoor weatherability is required
High surface hardness is useful
PETG may be preferable when easier deep drawing and higher impact resistance are more important.
Polycarbonate may be preferable where very high impact performance is required.
The correct material should therefore be selected according to the finished product rather than thermoformability alone.
Yes. Acrylic sheet can be thermoformed using vacuum forming, pressure forming, drape forming and other techniques.
Extruded acrylic may typically form around 145–160°C, while cell-cast acrylic may require approximately 170–195°C. Always follow the processing recommendations for the specific acrylic sheet grade.
Extruded acrylic is generally relatively easy to form. Cast acrylic has greater hot strength and usually requires higher temperatures and more careful process control.
Usually not when properly stored, but acrylic that has absorbed excessive moisture may need drying to prevent bubbles or blistering.
Yes. Pressure forming can be used when the part requires more detailed mold reproduction than vacuum alone can provide.
Acrylic can provide good service durability but remains sensitive to sharp notches and concentrated stresses. Proper radii, heating, cooling and trimming help reduce cracking and crazing.
Acrylic is an excellent thermoforming material when a finished product requires clarity, appearance, weatherability and smooth formed geometry.
Successful PMMA thermoforming depends heavily on using the correct temperature for the specific sheet type.
Extruded acrylic generally forms at lower temperatures and reproduces detail easily, while cast acrylic has greater hot strength but requires higher forming temperatures.
Uniform heating, smooth mold surfaces, adequate radii, proper venting and controlled cooling are especially important because optical defects and internal stresses can be highly visible in transparent parts.
For detailed acrylic products, vacuum forming may be sufficient for simple geometry, while pressure forming can provide greater mold definition when required.
