Polycarbonate thermoforming is used when a formed plastic part needs a combination of high impact strength, heat resistance, transparency and dimensional performance.
Polycarbonate, commonly abbreviated as PC, can be vacuum formed or pressure formed into protective covers, machine guards, transportation components, medical equipment parts and industrial housings.
However, thermoforming polycarbonate requires more process control than materials such as HIPS or PETG.
The most important factors are:
Proper pre-drying
Uniform sheet heating
Correct forming temperature
Controlled deep drawing
Mold temperature
Wall-thickness distribution
Controlled cooling
This guide explains the practical factors manufacturers should consider when thermoforming polycarbonate sheet.
Polycarbonate is one of several engineering plastics used in thermoforming. For a broader comparison of PC, ABS, PETG, HIPS, acrylic and other materials, see our Thermoforming Materials Guide.
Polycarbonate is an amorphous engineering thermoplastic known for its combination of toughness and thermal performance.
Typical advantages include:
Very high impact resistance
Good transparency in clear grades
Higher heat resistance than many common thermoforming plastics
Good dimensional stability
Good electrical properties
Ability to form complex shapes
Availability in flame-retardant and specialty grades
This makes polycarbonate particularly suitable for products where ordinary packaging plastics may not provide sufficient mechanical or thermal performance.
Typical applications include:

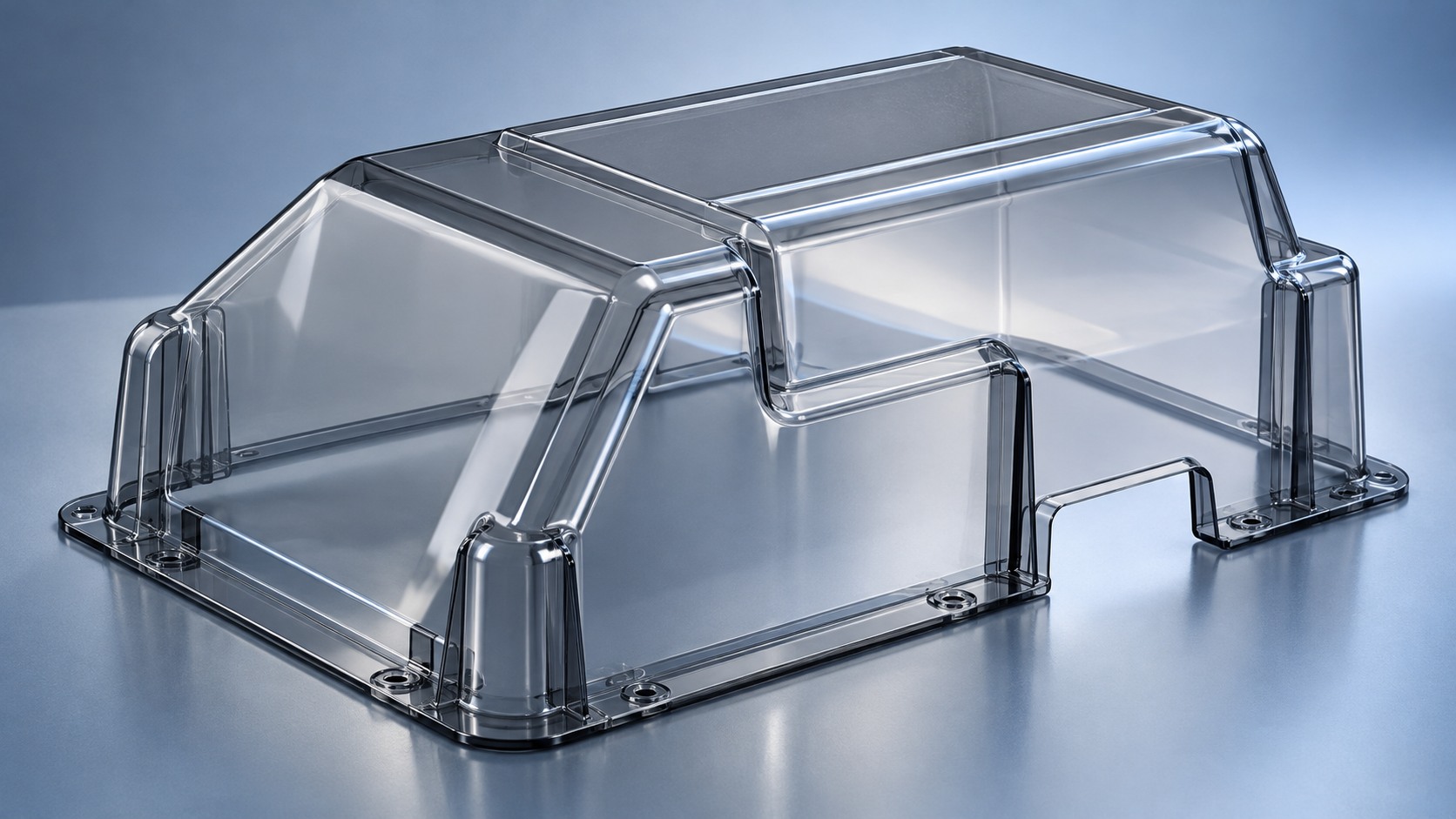

Machine guards
Protective covers
Equipment housings
Transportation glazing
Electrical enclosures
Medical equipment components
Transparent technical parts
Clear commercial polycarbonate grades can provide light transmission approaching 89% in thin sections, while standard grades can have heat-deflection temperatures above 120°C depending on the grade and test conditions.
There is no single temperature suitable for every polycarbonate sheet.
For TUFFAK polycarbonate sheet, Plaskolite gives a typical thermoforming sheet-temperature range of approximately:
340–415°F (171–213°C)
with an optimum range around:
350–375°F (177–191°C).
The actual forming temperature depends on:
Polycarbonate grade
Sheet thickness
Heater type
Heating from one or both sides
Product depth
Mold geometry
Forming method
Required surface detail
The important value is the actual sheet temperature, not simply the heater setting.
The sheet may show:
Poor mold definition
Incomplete corners
Excessive forming stress
High springback
Difficult deep drawing
Possible problems include:
Excessive sag
Local wall thinning
Surface marking
Difficult sheet control
Longer cooling time
Polycarbonate begins to soften rapidly once the sheet moves above its glass-transition region, so the forming process needs relatively tight temperature control.
Pre-drying is one of the most important differences between polycarbonate and many easier-to-form plastics.
Polycarbonate is hygroscopic, meaning it can absorb moisture from the surrounding air.
When moisture-containing sheet is heated to thermoforming temperature, absorbed water can turn into vapor.
The result may be:
Small bubbles
Blisters
Surface defects
Optical distortion
Reduced appearance quality
Plaskolite notes that polycarbonate sheet can reabsorb moisture after manufacturing and recommends drying thermoforming sheet in a dehumidifying or properly ventilated air-circulating oven before forming.
A common reference for polycarbonate sheet drying is approximately:
250°F / 121°C
before thermoforming.
However, drying time changes significantly with sheet thickness.
Thicker sheet needs more time because moisture must migrate from the center of the plastic to the surface.
This means there is no correct statement such as:
“Dry all polycarbonate for four hours.”
A thin sheet and a thick heavy-gauge sheet may require very different drying cycles.
Always follow the drying table supplied by the specific sheet manufacturer.
Another important point is timing.
Once dried polycarbonate sheet is removed from the oven, it begins absorbing moisture again from humid air.
For this reason, the sheet should normally move from drying to thermoforming without unnecessary delay.
One of the easiest warning signs is bubbling during heating.
If small bubbles or blister-like defects appear inside the sheet before forming, moisture is one of the first things to investigate.
Before changing forming pressure or mold temperature, check:
Drying temperature
Drying time
Oven airflow
Sheet thickness
Time between drying and forming
Sheet storage conditions
Process troubleshooting should start with material condition because no amount of pressure forming can remove moisture bubbles that already developed inside the sheet.
Uniform heating is particularly important when thermoforming polycarbonate.
If one region becomes much hotter than another, that section stretches more easily.
This can create:
Uneven sag
Uneven wall thickness
Local thinning
Distortion
For thicker polycarbonate sheets, heating both sides can improve heat penetration and reduce cycle time. Plaskolite specifically notes that top-and-bottom heating can shorten the heating cycle.
As polycarbonate reaches forming temperature, the sheet begins to sag.
A consistent sag profile is useful because it indicates that the sheet has reached a repeatable thermal condition.
If the sag is noticeably asymmetric, operators should investigate heater-zone balance before forming.
This is often more useful than relying only on elapsed heating time.
Yes.
Polycarbonate can be thermoformed into relatively deep and complex shapes, but deep drawing requires careful control of material distribution.
As the heated sheet stretches into a deep mold, material is redistributed from the original sheet area over a much larger surface.
The deepest areas normally become thinner.
Important factors include:
Draw ratio
Starting sheet thickness
Corner radii
Heating profile
Mold orientation
Forming speed
Plug assist
Pre-stretching
Simply starting with a thicker sheet does not always produce the best result.
For deep products, manufacturers often need to control where the material stretches.
Several process techniques can help.
Areas that need to stretch farther can be heated differently from areas where more material should be retained.
The objective is to create controlled material movement rather than uniform temperature for its own sake.
A mechanical plug can pre-stretch the sheet before final vacuum or pressure forming.
This can improve wall-thickness distribution in deep cavities.
Air can be used to pre-stretch the hot sheet before the mold engages.
This helps distribute material before final forming.
Very tight corners concentrate stretching.
Increasing the radius can reduce severe local thinning and lower forming stress.
Deep-draw design should therefore be treated as a combination of product geometry, heating and forming technique, not only material thickness.
Polycarbonate can be processed using both vacuum and pressure forming.
Vacuum forming can be suitable for:
Machine guards
Covers
Panels
Transparent shells
Moderately detailed housings
Vacuum pulls the heated polycarbonate against the mold.
For relatively simple geometry, this may provide sufficient detail.
Pressure forming adds compressed air to increase the forming force.
It becomes useful when the product requires:
Sharper mold detail
Better corner definition
More complex geometry
Detailed surface features
More controlled forming
For industrial polycarbonate components with demanding geometry, a Pressure Forming Machine can provide greater forming force than vacuum alone.
The best forming method still depends on the finished product rather than the material name.
One reason manufacturers select polycarbonate instead of PETG, HIPS or standard acrylic is its thermal performance.
Typical standard Makrolon polycarbonate grades show heat-deflection temperatures around 124–137°C, depending on load and grade, while their Vicat softening temperatures can be around 145°C.
This does not mean every thermoformed PC component can operate continuously at these temperatures.
Actual service-temperature capability depends on:
Polycarbonate grade
Mechanical load
Part thickness
Exposure time
Environmental conditions
Chemical exposure
Still, polycarbonate is generally a strong candidate where the finished product must tolerate more heat than ordinary packaging plastics.
Common examples include:
Electrical equipment
Industrial machinery
Transportation components
Protective technical housings
Clear polycarbonate is frequently selected when manufacturers need both transparency and impact strength.
Typical clear commercial polycarbonate can provide high visible-light transmission.
However, transparent parts make processing defects easier to see.
Important controls include:
Clean sheet surfaces
Proper pre-drying
Clean molds
Uniform heating
Controlled mold contact
Stable cooling
Dust, moisture bubbles or mold marks that might be acceptable in an opaque housing can become obvious in a transparent polycarbonate guard.
The mold should help the hot sheet form without creating unnecessary stress.
Draft makes the finished part easier to remove from the mold.
Insufficient draft increases demolding force and may introduce stress.
Sharp geometry concentrates material stretching and can cause severe thinning.
Generous radii improve material distribution.
Air trapped between the polycarbonate and mold can prevent full detail reproduction.
Vacuum holes should be positioned near:
Corners
Deep pockets
Fine details
Polycarbonate cools rapidly, so mold temperature affects both part definition and dimensional stability.
For TUFFAK thermoforming, Plaskolite gives typical metal mold temperatures around 99–121°C.
A mold that is too cold may freeze the sheet before it fully reproduces detailed geometry.
The formed polycarbonate should remain supported until it is dimensionally stable.
Removing the part too early can cause:
Warpage
Shape relaxation
Dimensional change
At the same time, polycarbonate cools relatively quickly, so machine movement and forming sequence need to operate without unnecessary delay once the sheet reaches forming temperature.
Production therefore needs to balance:
sufficient cooling + efficient cycle time.
Most likely areas to check:
Insufficient pre-drying
Moisture exposure after drying
Excessively rapid heating
Possible causes:
Uneven heater output
Poor heater zoning
Different sheet temperatures across the forming area
Possible causes:
High draw ratio
Tight corners
Excessive local heating
Poor material distribution
Consider zoned heating, plug assist or pre-stretching.
Possible causes:
Sheet temperature too low
Insufficient vacuum or pressure
Poor mold venting
Mold too cold
Possible causes:
Uneven cooling
Premature demolding
Residual forming stress
Polycarbonate thermoforming is commonly considered for:
Safety guards
Machinery covers
Transparent equipment housings
Transportation components
Protective glazing
Electrical enclosures
Medical equipment covers
Industrial panels
Technical transparent components
These applications take advantage of polycarbonate's combination of impact resistance, transparency and thermal performance.
All three materials can produce clear thermoformed products, but they serve different priorities.
| Requirement | Polycarbonate | PETG | Acrylic |
|---|---|---|---|
| Impact resistance | Excellent | Good | Moderate |
| Heat resistance | High | Moderate | Good |
| Thermoforming ease | More demanding | Very good | Good |
| Pre-drying importance | High | Often lower | Depends on condition |
| Optical clarity | Very good | Very good | Excellent |
| Deep forming | Good with process control | Very good | Grade-dependent |
Choose polycarbonate when impact strength and heat performance are especially important.
Choose PETG when easy forming and deep transparent shapes are the priority.
Choose acrylic when exceptional optical appearance and weatherability are more important than extreme impact resistance.
Polycarbonate itself does not determine the machine.
Manufacturers should evaluate:
Sheet dimensions
Sheet thickness
Required forming temperature
Heating capacity
Heater-zone control
Product depth
Mold size
Forming pressure
Cooling requirements
Target output
For parts requiring high detail or deeper industrial geometry, a Pressure Forming Machine may provide useful additional control.
The complete process should be evaluated as:
drying → heating → material distribution → forming → cooling → trimming.
Skipping the drying stage when working with moisture-sensitive polycarbonate can undermine every step that follows.
Yes. Polycarbonate can be vacuum formed and pressure formed into transparent and opaque industrial components.
A typical TUFFAK polycarbonate reference range is approximately 171–213°C, with an optimum range around 177–191°C. The correct temperature depends on the grade, thickness and product geometry.
In most conventional high-temperature thermoforming applications, pre-drying is strongly recommended because polycarbonate absorbs moisture that can produce bubbles when heated.
A common reference is approximately 121°C, but drying time varies significantly with sheet thickness and material grade. Follow the sheet manufacturer's drying table.
Yes. Polycarbonate can form deep parts, but good wall-thickness distribution may require zoned heating, plug assist, pre-stretching or larger mold radii.
Yes. Pressure forming is useful when polycarbonate products require sharper detail, more complex geometry or better mold reproduction.
Polycarbonate is a high-performance thermoforming material when the finished part requires impact resistance, heat resistance, transparency and durable industrial performance.
Its biggest processing difference compared with many easier thermoforming plastics is moisture sensitivity.
Proper pre-drying should therefore be treated as part of the thermoforming process, not as an optional preparation step.
After drying, successful production depends on uniform heating, correct forming temperature, controlled material distribution and stable cooling.
For deep or detailed components, pressure forming, plug assist and controlled heating can help improve mold definition and wall-thickness distribution.
When developing a new polycarbonate thermoforming project, evaluate the sheet grade, drying requirements, product geometry, mold and machine together rather than treating each factor separately.
