What Is Twin Sheet Thermoforming And How Does It Benefit Industrial Applications?

Twin sheet thermoforming is an innovative plastic manufacturing process that creates strong, lightweight hollow parts by simultaneously forming two separate sheets of thermoplastic material. Unlike traditional single sheet thermoforming, which shapes only one plastic sheet at a time, twin sheet thermoforming uses two heated sheets that are formed and then fused together, resulting in durable, complex hollow structures. This method offers distinct advantages for various industrial applications due to its design flexibility and material efficiency.

What Is Twin Sheet Thermoforming and How Does It Work?

Twin sheet thermoforming is a specialized manufacturing process where two separate plastic sheets are heated, formed over matched molds, and then joined to create hollow parts. Unlike single sheet thermoforming, which shapes only one heated plastic sheet over a mold, twin sheet thermoforming uses two sheets that are formed independently and then fused while still hot. This fusion creates a single piece with a hollow cavity, offering structural advantages and the ability to form more complex geometries.

The process typically begins with loading two thermoplastic sheets into a machine. Each sheet is heated until it reaches a pliable state, then simultaneously lowered onto two molds that mirror each other. Using vacuum or pressure, the sheets conform precisely to their mold shapes. Immediately afterward, the molds close together, and the heated sheets are pressed to fuse at the interface. Once cooled, the hollow thermoformed part is ejected and trimmed to its final shape.

Key differences from single sheet thermoforming include:

Hollow Structure Formation: Twin sheet thermoforming produces double-walled hollow parts without the need for secondary assembly or welding, which is often necessary with single sheet processes.

Integrated Features: Complex internal structures such as ribs, cavities, or reinforcement can be formed as part of the molded piece.

Material Efficiency: The ability to create lightweight but strong components reduces material consumption compared to solid parts.

Overall, twin sheet thermoforming allows manufacturers to create intricate, functional, and robust plastic parts in an efficient and cost-effective manner.

What Materials Are Used in Twin Sheet Thermoforming?

Material choice is a critical factor in twin sheet thermoforming, as it directly influences product performance, durability, and cost. Common thermoplastics used in this process include:

High-Density Polyethylene (HDPE): Known for excellent chemical resistance, toughness, and affordability, HDPE is widely used in industrial containers, pallets, and chemical tanks.

Acrylonitrile Butadiene Styrene (ABS): ABS offers superior impact resistance, surface finish, and dimensional stability, making it popular in automotive interior panels, medical device housings, and consumer products.

Polycarbonate (PC): Valued for its high strength, transparency, and heat resistance, polycarbonate suits demanding applications such as protective equipment and electronic enclosures.

Selecting the right material depends on the application’s mechanical requirements, environmental exposure, and budget considerations. For example, HDPE may be ideal for rugged industrial uses where cost and chemical resistance are priorities, while ABS might be chosen for applications requiring a glossy finish and higher impact strength.

Balancing cost and performance is essential. Twin sheet thermoforming enables the use of thinner sheets without sacrificing structural integrity, which can reduce raw material costs. Additionally, the process allows combining different colors or material grades on each sheet, enabling both aesthetic and functional customization.

What Are the Main Advantages of Twin Sheet Thermoforming?

Twin sheet thermoforming offers numerous advantages that distinguish it from other plastic forming methods like blow molding or injection molding:

Stronger Hollow Structures: The fusion of two sheets creates a double-wall structure that enhances mechanical strength and rigidity. This makes parts more resistant to impact, bending, and load-bearing compared to single-walled blow molded parts.

Lightweight Yet Durable: By optimizing wall thickness and structural design, twin sheet thermoformed parts maintain durability while reducing weight, which is particularly valuable in automotive and aerospace sectors aiming to improve fuel efficiency.

Design Flexibility: The process supports complex geometries, integrated hinges, ribs, and multi-cavity designs without additional assembly. This flexibility enables manufacturers to innovate product features and consolidate parts, saving time and costs.

Material and Color Combinations: Different sheets can be fused with varying colors, textures, or material properties, enabling multi-functional and visually appealing products.

Cost Efficiency: Compared to injection molding, twin sheet thermoforming generally requires less expensive tooling and offers faster mold modifications. It is especially cost-effective for medium to large production runs.

The combination of these benefits makes twin sheet thermoforming an excellent choice for industries seeking both high performance and economical manufacturing.

Which Industries Benefit Most from Twin Sheet Thermoforming?

Twin sheet thermoforming has gained widespread adoption across multiple industries, thanks to its adaptability and efficiency:

Automotive Industry: Many automotive parts, including trunk liners, door panels, dashboards, and under-hood components, are produced using twin sheet thermoforming. The lightweight nature of these parts contributes to overall vehicle fuel efficiency, while the strength ensures durability and safety.

Medical Sector: Medical equipment housings, trays, and protective cases benefit from twin sheet thermoforming’s ability to produce easy-to-clean, strong, and precise components. The process supports sterilizable materials and compliant designs required in healthcare settings.

Industrial and Logistics: Pallets, protective containers, and storage bins manufactured via twin sheet thermoforming offer excellent load capacity and chemical resistance. These parts are essential in supply chain management, warehousing, and industrial handling.

Consumer Products: Items such as sports equipment, protective cases, and durable housings utilize this process to deliver both aesthetic appeal and functional robustness.

Agriculture and Outdoor Equipment: Components exposed to harsh environmental conditions benefit from the durability and chemical resistance provided by twin sheet thermoformed plastics.

These industries leverage twin sheet thermoforming to improve product quality, reduce weight, and optimize production efficiency.

How to Ensure Quality in Twin Sheet Thermoformed Products?

Quality assurance is vital to maximize the benefits of twin sheet thermoforming. Ensuring product quality involves multiple factors:

Design Considerations: Early-stage design must focus on wall thickness uniformity, appropriate draft angles, and smooth radii to facilitate forming and prevent defects such as thinning or warping.

Mold Precision: High-precision molds with tight tolerances guarantee dimensional accuracy and consistent fusion between the sheets. Quality mold materials and machining are essential for longevity and repeatability.

Process Control: Maintaining optimal heating temperatures, forming pressures, and cooling rates is critical to produce parts with desired mechanical properties. Advanced machines provide precise control over these parameters.

Inspection and Testing: Regular dimensional checks, impact tests, and surface finish inspections verify the integrity and performance of the finished product. Non-destructive testing methods can also be employed to detect internal flaws.

Material Quality: Using certified, consistent thermoplastic sheets prevents variability that could compromise fusion or part performance.

Implementing rigorous quality control throughout the production cycle reduces scrap rates, enhances product reliability, and builds customer trust.

Conclusion

Twin sheet thermoforming stands out as a forward-looking solution for manufacturers aiming to produce high-strength, lightweight, and intricately designed plastic parts with operational efficiency. Compared to injection molding or blow molding, this process offers superior flexibility for hollow part creation without the need for complex assembly steps.

If your projects require strong yet lightweight parts with customizable design features, twin sheet thermoforming could offer cost-effective advantages and shorten lead times. The ability to work with a variety of thermoplastics and integrate multi-functional design elements makes it a highly adaptable choice.

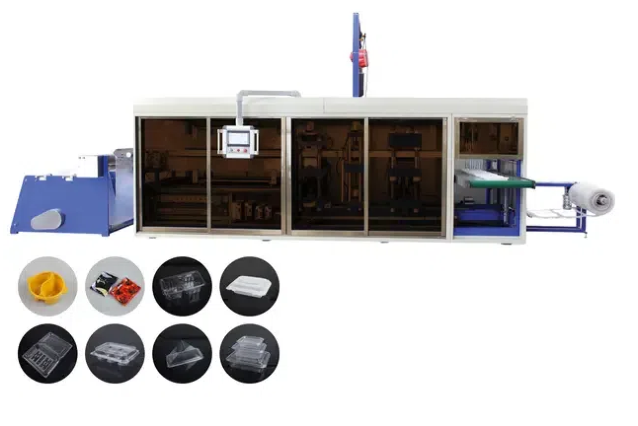

Wenzhou Mingdu Machinery, with over 15 years of expertise in automatic plastic forming machines, offers advanced twin sheet thermoforming equipment engineered for stability, precision, and interchangeability. Our machines accommodate diverse product needs ranging from automotive components to industrial containers.

Explore how twin sheet thermoforming can enhance your manufacturing capabilities. Contact us today for detailed information and personalized solutions tailored to your production goals.
