PETG thermoforming is widely used when a plastic part needs a combination of clarity, impact resistance, detailed forming and good material distribution.
PETG, or polyethylene terephthalate glycol-modified, is a transparent copolyester commonly supplied as plastic sheet. It can be vacuum formed or pressure formed into trays, transparent packaging, medical components, retail displays, guards and other formed products.
Compared with many transparent plastics, PETG material is particularly attractive because it can handle deep draws and detailed mold features while maintaining good optical appearance.
However, successful PETG thermoforming still depends on controlling sheet temperature, heating uniformity, sheet thickness, mold design and cooling.
This guide explains how PETG plastic behaves during thermoforming, typical forming temperatures, common applications and how PETG compares with PET.
For a broader comparison of PET, PP, ABS, HIPS, PVC, polycarbonate and other plastics, see our Thermoforming Materials Guide.
PETG is a glycol-modified polyester.
The glycol modification changes the way the polymer behaves during processing and helps reduce crystallization, giving PETG a relatively broad thermoforming window.
For manufacturers, this means PETG plastic sheet can generally be heated, stretched and formed into complex shapes without the rapid whitening or crystallization problems that can occur with some PET materials.
Typical PETG characteristics include:
High transparency
Good impact resistance
Good thermoformability
Deep-draw capability
Good mold-detail reproduction
Chemical resistance to many common substances
Easy cutting, routing and fabrication
Availability in clear and selected colored grades
Commercial PETG sheets are widely used for thermoformed trays, POP displays, machine guards, medical applications and other products where both appearance and durability matter. Curbell describes PETG as particularly suitable for deep draws and precise molded-in details, while Plaskolite reports approximately 86% light transmission for its VIVAK sheet.
PETG is considered one of the more forgiving transparent plastics for thermoforming.
The main reasons are its amorphous structure and relatively broad softening range.
During heating, PETG becomes flexible without immediately developing the crystallization behavior that can complicate forming with standard APET.
This provides several practical advantages.
PETG can stretch into relatively deep molds while maintaining useful material integrity.
That makes it suitable for products such as:
Deep trays
Medical device packaging
Retail display components
Protective covers
Transparent housings
For especially deep parts, plug assist or pre-stretching may still be required to control wall thickness.
PETG can reproduce:
Ribs
Radii
Recesses
Raised features
Detailed cavity geometry
This becomes useful when pressure forming is used for parts requiring stronger surface definition.

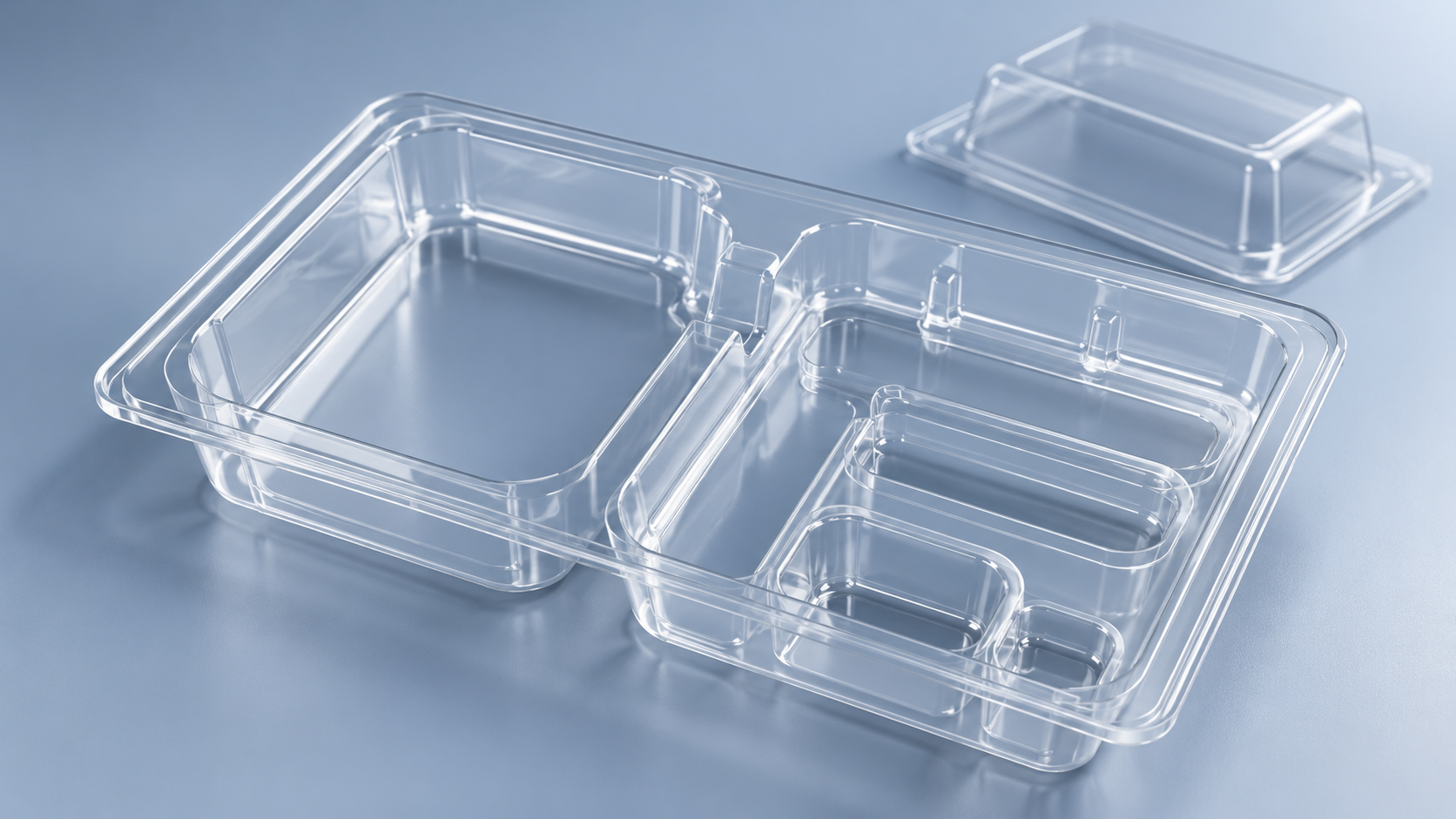

One of PETG's strongest advantages is the ability to produce transparent formed parts.
This matters for products where the user needs to see what is inside the package, such as:
Medical trays
Retail packaging
Product displays
Protective covers
Heating uniformity is important because excessive heat or contamination can reduce surface quality even when the base material has excellent clarity.
There is no single PETG forming temperature for every sheet grade.
For Plaskolite VIVAK PETG sheet, the manufacturer's fabrication guide lists a typical sheet forming temperature of:
280–320°F (approximately 138–160°C).
This should be treated as a useful reference, not a universal setting.
The actual processing window depends on:
PETG grade
Sheet thickness
Sheet color
Heater type
Distance from heaters
One-sided or two-sided heating
Product depth
Mold geometry
Cycle time
The most important value is the actual sheet temperature, not simply the temperature setting of the heater.
A heater may operate at a much higher temperature than the PETG sheet itself.
One practical indicator is uniform sheet sag.
As PETG approaches the correct forming condition, the heated sheet softens and begins to sag.
The sag should be relatively uniform.
If one section hangs much lower than another, this usually indicates uneven heating.
For repeatable production, operators should monitor:
Sheet temperature
Sag profile
Heating time
Heater-zone settings
Part definition
Wall thickness
Once a stable combination is found, the heating cycle can be repeated much more consistently.
Many commercial PETG sheets can be thermoformed without a separate pre-drying step.
Curbell, for example, states that PETG sheet generally does not require drying before thermoforming.
However, this should not be treated as a rule for every PETG product.
Storage conditions, sheet grade, coatings and supplier specifications can vary.
The safest approach is to check:
Sheet manufacturer's TDS
Storage recommendations
Moisture exposure
Surface condition
If bubbles or unusual surface defects appear during heating, material condition should be checked before assuming that the machine is the problem.
PETG plastic sheet is available across a wide range of thicknesses.
The correct thickness depends on the finished product rather than PETG itself.
Thin sheet is commonly used for:
Packaging trays
Blister-style products
Retail packaging
Medical trays
Protective inserts
High-volume products can be produced using roll-fed or automated thin-gauge thermoforming systems.
Thicker PETG may be used for:
Machine guards
Protective covers
Displays
Housings
Medical or laboratory components
Thicker material generally needs:
More heating energy
More time for heat penetration
Greater attention to temperature uniformity
Longer cooling
Plaskolite notes that heavier gauges benefit from slower, more uniform heating and that two-sided heating may improve productivity once sheet thickness increases.
For a new project, sheet thickness should be selected according to the minimum required final wall thickness, not simply the original flat-sheet thickness.
Like every thermoforming material, PETG becomes thinner as it stretches.
The deepest areas of the product normally experience the greatest reduction in thickness.
Wall distribution is influenced by:
Draw ratio
Part depth
Corner radius
Starting sheet thickness
Heating profile
Mold orientation
Vacuum timing
Forming pressure
Plug assist
For deep PETG trays or packaging cavities, increasing the starting sheet thickness is only one solution.
Other methods can include:
Zoned heating
Plug assist
Pre-blowing
Larger corner radii
Modified mold geometry
A well-designed process distributes material rather than simply compensating for excessive thinning with more plastic.
PETG is widely considered for healthcare-related products because selected grades combine transparency, toughness and thermoformability.
Applications may include:
Medical device trays
Protective packaging
Orthotic components
Face masks
Check sockets
Equipment covers
Transparency can be particularly useful when clinicians or operators need to inspect a product without removing it from the formed part.
Some commercial PETG products are available in FDA-compliant grades, but this does not mean every PETG sheet is automatically suitable for every medical application.
Manufacturers should confirm:
Material grade
Regulatory requirements
Sterilization method
Chemical exposure
Packaging validation
before selecting a PETG sheet for a medical product.
PETG is also well suited to products where visual appearance is part of the buying experience.
Common applications include:
Clear retail trays
Product covers
Display packaging
Point-of-purchase displays
Store fixtures
Transparent inserts
Its transparency allows customers to see the product, while its impact resistance gives the formed part better durability than more brittle transparent plastics.
PETG can also be cut, printed and fabricated after forming, making it useful for display and retail systems that combine thermoformed parts with additional decoration or assembly.
PETG can be used with both vacuum and pressure forming.
Vacuum forming is suitable for many:
Trays
Covers
Packaging products
Display components
Protective parts
The heated PETG plastic sheet is pulled against the mold using vacuum.
For relatively shallow or moderate-depth parts, this can provide good definition with a comparatively straightforward process.
Pressure forming adds compressed air to create greater forming force.
It may be preferred when a PETG part requires:
Sharper details
More defined corners
Improved mold reproduction
Complex geometry
Better cosmetic appearance
For applications requiring this additional forming control, MINGDU's Pressure and Vacuum Forming Machine combines vacuum and pressure capabilities for suitable thermoforming projects.
For high-volume lightweight trays and packaging, a Thin-Gauge Thermoforming Machine may be more appropriate depending on sheet thickness, product size and required output.
PETG and PET are closely related materials, but they should not be treated as interchangeable.
The main difference for thermoforming is how they behave during heating.
| Factor | PETG | PET / APET |
|---|---|---|
| Clarity | Excellent | Excellent when processed correctly |
| Thermoforming window | Relatively broad | Generally narrower |
| Deep draws | Very good | More process-sensitive |
| Crystallization during heating | Reduced | Requires greater control |
| Impact performance | Good | Generally more rigid |
| Mold detail | Very good | Good |
| Heat resistance | Moderate | Can be higher depending on grade |
| Common applications | Medical trays, displays, retail parts, guards | Food trays, clamshells, high-volume packaging |
Eastman has compared its amorphous copolyester sheet with APET and notes that the copolyester maintains a wider forming window and is less prone to haze from crystallization during thermoforming.
PETG may be the better choice when the product requires:
Deep forming
Strong mold detail
High transparency after forming
Impact resistance
Relatively forgiving process conditions
PET or APET may make more sense when:
The product is conventional high-volume food packaging
Greater stiffness is important
The existing production line is optimized for PET
Material and recycling requirements favor PET
There is therefore no universal winner.
The correct choice depends on the product, regulatory requirements, production volume and thermoforming equipment.
Possible causes:
Uneven heating
Heater hot spots
Incorrect zone settings
What to check:
Adjust heating zones and confirm actual sheet temperature across the forming area.
Possible causes:
Sheet too cold
Insufficient vacuum
Poor mold venting
Increase sheet temperature gradually and inspect the vacuum system and vent holes.
Possible causes:
High draw ratio
Tight corners
Excessive local heating
Consider plug assist, pre-stretching or changing the mold geometry.
PETG can attract dust because of static charge.
Dust on either the sheet or mold may become visible in a transparent finished product, so cleanliness is particularly important when optical appearance matters. Plaskolite specifically recommends controlling dust and foreign particles during PETG vacuum forming.
Possible causes include:
Mold temperature too high
Insufficient draft
Difficult geometry
Review mold temperature and draft rather than simply increasing cooling time.
PETG itself does not determine the machine configuration.
Start with the finished product.
Important information includes:
Sheet dimensions
Sheet thickness
Product depth
Mold dimensions
Required detail
Number of cavities
Target output
Cutting method
For thin PETG trays and packaging, an automated Thin-Gauge Thermoforming Machine can integrate high-speed sheet feeding, forming and downstream operations.
For deeper products or parts requiring additional mold definition, a Pressure and Vacuum Forming Machine can provide more control over the forming process.
The most suitable machine should be evaluated as a system combining:
PETG sheet + heating + mold + forming force + cooling + trimming.
Yes. PETG is widely used for thermoforming because it combines good clarity, impact resistance, deep-draw capability and a relatively forgiving forming window.
A typical reference range for VIVAK PETG sheet is approximately 280–320°F (138–160°C), but the correct temperature depends on the specific grade, sheet thickness and machine. Always check the sheet manufacturer's processing recommendations.
Many commercial PETG sheets do not require pre-drying for normal thermoforming. However, the supplier's instructions and material storage conditions should always be checked.
PETG can maintain very good clarity after thermoforming when it is heated uniformly and processed within the proper temperature window.
PETG is generally easier to form into deep or complex transparent parts because of its broader processing window. PET is widely used for high-volume packaging and may offer greater stiffness and different economic or recycling advantages.
Yes. PETG is suitable for vacuum forming as well as pressure forming.
PETG is one of the most useful transparent plastics for thermoforming when a product requires clarity, impact resistance and complex forming.
Its relatively forgiving processing behavior makes PETG suitable for medical trays, retail packaging, displays, covers and other transparent formed components.
A typical PETG forming temperature may fall around 138–160°C for specific commercial sheet grades, but temperature should never be treated as a fixed universal setting.
Good production depends on uniform heating, proper sheet thickness, mold design, wall-thickness control and stable forming conditions.
When evaluating a new PETG thermoforming project, consider the material, product drawing, mold and machine together rather than selecting the plastic or equipment independently.
