High-speed thermoforming relies on continuous throughput, but the end-of-line is often where overall equipment effectiveness (OEE) goes to die. Manual counting, sorting, and packing simply cannot keep pace with modern cycle times. These outdated methods create artificial bottlenecks across the plant floor. They directly increase labor costs and drive up scrap rates due to unnecessary handling damage.

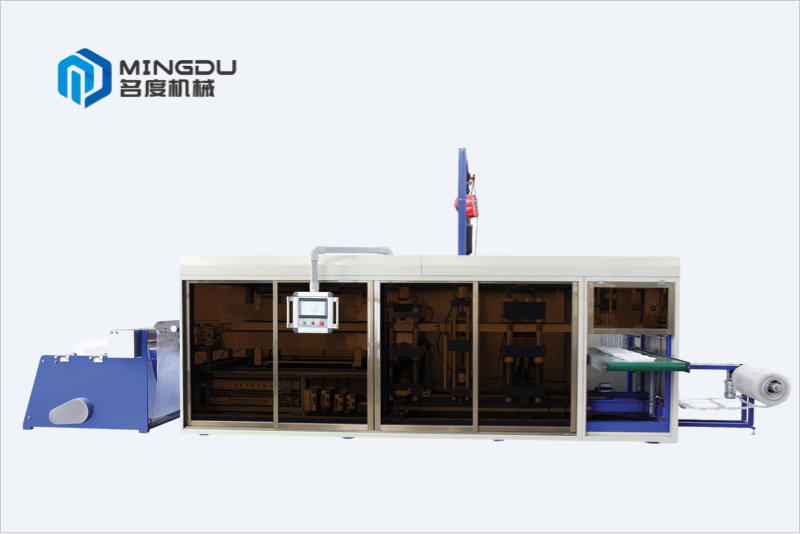

Transitioning to an automated stacking thermoforming machine is a significant CapEx decision. This guide breaks down the operational thresholds, system configurations, and ROI models. We will help plant managers determine if automation is the right immediate step. You will learn how to evaluate your current production limits. We will explore various stacking mechanisms suited for different product geometries. Finally, we will outline the hidden costs and vendor evaluation metrics required for a successful operational upgrade.
Production speed mismatches reveal the fundamental mathematical limits of human hands. A fast forming station often outpaces a manual packing station. Operators must then throttle down the machinery. This intentionally destroys your OEE. You lose valuable production capacity. A modern press running at high speeds requires equally fast extraction. Human operators max out at a specific cycle limit. Pushing past this limit leads to chaos on the shop floor.
High-cavitation tooling demands further expose these manual limitations. Consider running 50-cavity or 64-cavity molds. Manual sorting becomes physically impossible here. Operators will inevitably drop parts. They lose count accuracy quickly. Disorganized piles of plastic lead to immediate product damage. A robust thermoforming part stacking system eliminates these errors. It aligns, counts, and ejects parts in uniform batches. This allows the press to run at its true mechanical limit.
Quality and contamination risks present another major threshold. Manual handling directly hurts part integrity. Fingers leave visible prints on clear plastics. Static electricity from human movement attracts ambient dust. Squeezing parts during packing causes micro-crushing. Hands-free handling remains critical for regulatory compliance. FDA regulations and ISO 14644 cleanroom standards require minimal human intervention. Medical device packaging cannot tolerate biological contamination from operators.
Labor volatility forces many facilities to rethink their strategies. Reliance on manual labor carries high operational risks. Unexpected absenteeism disrupts production schedules constantly. Repetitive strain injuries create serious ergonomic liabilities. You spend significant capital training new packers every quarter. High turnover rates destabilize your output consistency. Automation stabilizes your workforce costs. It transforms unpredictable human labor variables into predictable machine performance metrics.
Best Practice: Conduct a weekly speed audit. Compare your machine's theoretical maximum speed against your actual run speed. If packing labor dictates your run speed, you have reached the automation inflection point.
Plant managers must choose the right mechanical configuration. Different product shapes demand specific handling methodologies. Selecting the wrong system creates downstream jamming issues.
Down-stacking systems dominate the high-volume packaging sector. They work best for standard geometries like beverage cups and simple lids. We evaluate them primarily on simplicity and raw speed. Parts eject downward directly into receiving magazines. However, they do require highly specific tooling designs. You must build your molds to support this downward ejection path.
Up-stacking systems serve entirely different production needs. They work best for complex parts needing precise nesting control. They provide incredibly gentle handling. Parts push upward into receiver plates or cages. Operators can conduct visual quality inspections easily before ejection. This configuration prevents heavy parts from crushing the items stacked below them.
Robotic pick-and-place units utilize multi-axis automation. They work best for A-B stacking and irregular shapes. They handle frequent product changeovers exceptionally well. Flexibility and programmability remain their key evaluation metrics. However, they carry a higher initial capital cost. They also reach lower top speeds compared to dedicated mechanical stackers. You trade raw speed for maximum adaptability.
Rotary stacking and tip stacking mechanisms solve unique geometry problems. They work best for extremely lightweight items. These systems manage shallow containers perfectly. Standard stackers often struggle here. Air drafts cause lightweight items to float or misalign. Tip stackers rotate the parts into a horizontal magazine. This securely captures stacked plastic trays before they can drift away.
Configuration Comparison Chart
| System Type | Best Application | Primary Advantage | Main Limitation |
|---|---|---|---|
| Down-Stacking | Standard cups, simple lids | Maximum cycle speed | Requires dedicated mold design |
| Up-Stacking | Complex, heavy containers | Gentle handling, easy inspection | Slower than down-stacking |
| Robotic Pick-and-Place | Irregular shapes, A-B nesting | High flexibility, quick changeovers | Higher initial cost, complex programming |
| Rotary / Tip Stacking | Ultra-lightweight trays | Prevents static float and drift | Limited to shallow draft geometries |
Implementing an automated system uncovers several physical challenges. Static electricity represents a major implementation reality. Fast-moving plastic webs generate high static charges. Automated systems must aggressively integrate ionizing bars. Static eliminators prevent lightweight parts from misaligning during the stacking process. Neglecting static control guarantees persistent machine jams.
Managing nesting and de-nesting tolerances requires extreme precision. Precise automation ensures parts stack tightly. You want maximum shipping density. However, parts must not permanently lock together. A strong vacuum effect ruins product usability for the end consumer. Machine programmers must calibrate the stacking force carefully. They establish specific spacing intervals to prevent vacuum locking.
Tooling changeover realities dictate actual machine uptime. Single-Minute Exchange of Dies (SMED) principles apply heavily here. A highly efficient stacker loses its value if recipes take hours to configure. Quick-change receiver plates and modular magazines are mandatory. Operators must swap these components without specialized hand tools.
Proper integration requires seamless communication across the entire line. Upstream and downstream equipment must sync flawlessly. Data and mechanical handshakes connect the stacker. It links the forming press directly to downstream palletizing robotics. Reliable thermoforming product handling relies on these continuous digital handshakes. A failure in data transfer causes catastrophic line collisions.
Follow these sequential steps to ensure proper system integration:
Common Mistake: Failing to test new materials during the integration phase. Recycled PET (rPET) carries different static properties and shrinkage rates compared to virgin polypropylene (PP). Always calibrate stacking parameters for each specific material blend.
End-to-end continuity transforms a raw manufacturing process into a finished goods engine. Automated stacking serves as a critical operational bridge. It connects forming and trimming directly to end-of-line packaging tasks. This includes bagging, cartoning, and case packing. Building a reliable automatic plastic packaging line requires seamless physical transitions. Conveyor speeds must match stacker output exactly. Accumulation tables provide necessary buffer zones during minor downstream faults.
Data acquisition adds immense value to modern manufacturing setups. Automated lines capture precise production data continuously. You get exact unit counts and accurate reject rates. Batch tracking becomes an effortless background process. Direct ERP integration eliminates all manual counting errors. Traceability ensures strict compliance during customer quality audits. Plant managers can view real-time OEE dashboards from remote offices.
Space constraints often present significant engineering hurdles. Physical realities of the plant floor matter deeply. Automated lines demand a much larger linear footprint. Traditional manual stations allow workers to pack in tight circular clusters. Machines require rigid linear pathways. Careful layout planning prevents workflow bottlenecks. You may need to relocate auxiliary equipment like chillers or granulators. Ensure sufficient clearance for forklift traffic around the new automated discharge zones.
Focusing on hard cost savings provides a clear justification for capital expenditure. Use a strict formulaic approach to calculate your return on investment. Look at labor reduction across multiple operating shifts. Multiply your required manual headcount by their fully burdened wages. Next, factor in the increased throughput. Unthrottled press speeds generate more sellable units per hour. Finally, include reductions in material scrap. Automated handling virtually eliminates crush damage and contamination rejections.
Smart buyers must model hidden costs accurately. Do not focus solely on the sticker price. Evaluate your projected energy consumption carefully. Pneumatic cylinders use significantly more energy than electric servo drives over time. Account for mandatory preventative maintenance contracts. Budget for specialized operator training programs. Complex PLC systems require higher-level technical skills to troubleshoot. You will likely need to upskill your current maintenance crew.
Applying strict vendor evaluation criteria minimizes installation risks. Never purchase a system based on theoretical specifications alone. Require comprehensive factory testing before authorizing shipment.
Automated stacking is no longer an optional luxury for high-volume producers. It functions as a baseline requirement in modern manufacturing. Manual packing stations inherently throttle production speeds and increase contamination risks. Implementing targeted automation maximizes the financial return of your primary thermoforming press. It stabilizes your labor costs and guarantees consistent part quality across every shift.
Technical buyers should take immediate action to evaluate their lines. Conduct a thorough line-speed audit this week. Identify your slowest manual packing bottlenecks accurately. Calculate the exact percentage of OEE lost to human handling limitations. Gather this data and request a detailed cycle-time simulation from prospective equipment vendors. Proactive evaluation ensures your next capital investment directly eliminates your biggest operational constraints.
A: Cycle speeds vary heavily by technology. Mechanical down-stackers easily handle up to 40 cycles per minute for standard parts. Servo-driven systems provide smoother acceleration, pushing limits further. Multi-axis robotic systems generally operate slower, typically managing 15 to 25 cycles per minute, prioritizing flexibility over raw speed.
A: Dedicated mechanical stackers struggle to handle both extremes efficiently. Shallow trays often require tip stackers to prevent static floating. Deep-draw containers need longer vertical strokes. However, modular systems using interchangeable robotic end-of-arm tooling can bridge this gap, allowing one base unit to handle multiple geometries.
A: A-B nesting requires alternating part orientations to prevent vacuum locking. Automated systems manage this using servo-driven rotating receiver tables or multi-axis robots. The robot flips every second part 180 degrees before placing it in the magazine, ensuring perfect A-B alignment without slowing the forming press.
A: Industry benchmarks show retrofitting yields an ROI within 12 to 24 months. This timeframe depends heavily on your shift structure, local labor rates, and the baseline speed of your press. Operations running 24/7 see much faster returns due to compounded labor savings and increased throughput.
