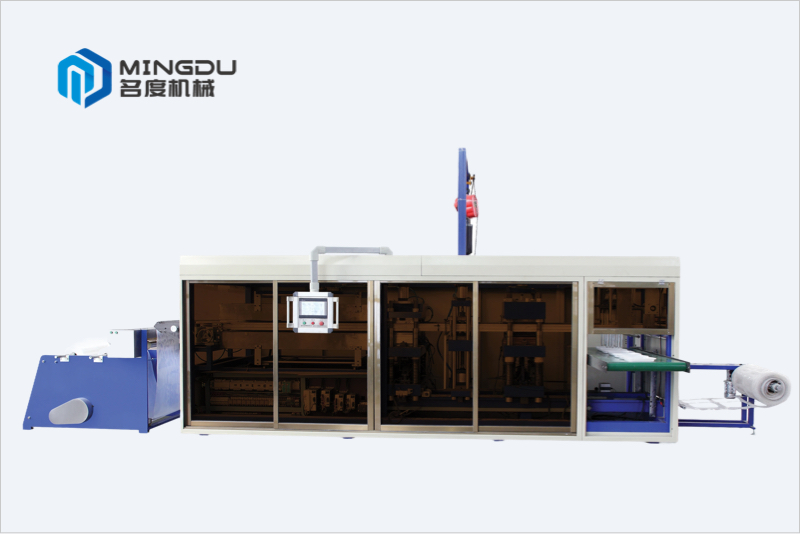

Procuring an automatic thermoforming machine represents only half the total investment. Facility readiness ultimately dictates your true time-to-value. Many businesses drastically underestimate the massive infrastructure upgrades these high-speed lines demand. Under-specifying your utility connections leads to heavily delayed commissioning. It directly causes inconsistent part quality during production runs. Poor utility planning can even void expensive OEM machine warranties. We created this comprehensive guide to help you prevent these costly operational setbacks.
Plant managers and production engineers need a rigorous, tested framework. You must accurately assess and prepare your facility infrastructure long before the delivery truck arrives. In the following sections, we explore exact utility specifications. You will learn how to properly size electrical drops, pneumatic pipelines, and industrial cooling systems. We also cover crucial spatial logistics to ensure maximum operational uptime. By the end of this guide, you will know exactly how to prepare your site for seamless installation.
Standard facility utilities rarely support high-speed automatic lines without significant modification. Most factory infrastructure accommodates steady, predictable energy draws. Thermoforming equipment behaves differently. These machines demand massive, instantaneous surges of power and air. When you integrate new equipment, your baseline utilities quickly become a severe production bottleneck. Properly mapping your thermoforming machine utility requirements prevents these early failures. You cannot treat industrial thermoformers like simple plug-and-play appliances.
We must align infrastructure planning directly to overall equipment effectiveness (OEE). Stable power and consistent air pressure prevent frustrating micro-stoppages. Micro-stoppages silently ruin production runs. You lose valuable raw plastic film during these brief, recurring faults. Consistent utilities guarantee continuous forming cycles. They keep your heater banks stable and your indexing servos perfectly timed. When utilities fluctuate, your OEE plummets.
Consider the compounding implementation risks of reactive planning. Retrofitting heavy electrical power drops later creates immense facility disruption. Upgrading central air compressors post-installation halts entire production floors. This reactive approach crushes your initial ROI timeline. Expanding pipe diameters after pouring concrete floors costs exponentially more than doing it correctly upfront. Facility managers must proactively engineer these systems before finalizing the machine purchase order.
Understanding thermoforming machine power requirements prevents catastrophic electrical failures on the floor. There is a critical difference between peak startup loads and continuous operational draw. When you first energize the heating ovens, the energy demand spikes massively. Heating thick plastic sheets from ambient room temperatures demands intense, immediate amperage. Once the ceramic or quartz ovens reach their setpoints, the continuous current draw drops significantly. If you size your electrical panels only for this continuous running load, your main breakers will trip every morning during startup.
Voltage and phase stability remain equally vital for modern machinery. You must install dedicated three-phase power drops isolated from other heavy equipment. Voltage fluctuations wreak havoc on sensitive PLC (Programmable Logic Controller) components. These power dips also disrupt servo motor synchronization. If your drive servos lose their precise timing, your indexing accuracy disappears entirely. This leads to misaligned cuts and wasted material.
We must evaluate essential security and safety dimensions constantly. Proper machine grounding protects operators from fatal electrical shocks. Localized disconnect switches allow rapid maintenance and emergency shutdowns. You must adhere strictly to regional electrical codes, including UL or CE standards. Never bypass these safety regulations to accelerate an installation schedule. Faulty wiring poses extreme fire hazards in environments processing flammable plastics.
As a highly actionable step, always demand a detailed electrical load profile from your vendor. Require this specific documentation from the equipment OEM before finalizing your internal facility upgrades. Share this load profile directly with your electrical contractor to ensure panel capacities match the peak startup demands perfectly.
Compressed air literally drives the physical forming process. However, many facilities severely misunderstand the relationship between pressure (PSI) and volumetric flow (CFM). High pressure is entirely useless if you lack sufficient air volume. When the machine platens close, the system needs a massive, instantaneous burst of air to shape the plastic. If your flow capacity is too low, the line pressure drops instantly. We use local accumulator tanks to solve this specific problem. These dedicated reserve tanks sit right beside the machine. They store high-volume air to prevent severe pressure drops during the critical forming phase.
Air quality and regulatory compliance dictate your end-product safety. Strict filtration standards like ISO 8573-1 are mandatory. Sourcing highly dry, oil-free compressed air for thermoforming is strictly non-negotiable. If you manufacture medical trays or food packaging, contaminated air destroys product viability instantly. Oil particulates also severely degrade internal pneumatic valve seals. This chemical degradation causes premature valve failure and unexpected machine downtime.
When implementing your pneumatic system, pay close attention to your air line sizing. Do not use restrictive quick-disconnect fittings anywhere near the main supply. Small fittings artificially throttle air delivery to the primary machine manifold. Ensure your internal pipe diameters match the machine inlet specifications exactly to prevent dangerous airflow bottlenecks.
Table 1: Compressed Air Quality Reference Guidelines
| Application Type | Required ISO 8573-1 Class | Oil Tolerance | Moisture (Dew Point) |
|---|---|---|---|
| Standard Industrial Packaging | Class 2.4.2 | < 0.1 mg/m³ | +3°C |
| Food Grade Packaging | Class 1.2.1 | < 0.01 mg/m³ | -40°C |
| Medical / Cleanroom | Class 1.1.1 | Strictly Zero (Oil-Free) | -70°C |
Industrial cooling dictates your maximum production speed. Managing mold cooling water ensures absolute thermal stability across long production shifts. We draw a direct link between precise cooling features and profitable production outcomes. Strict temperature control dictates your cycle times. It guarantees wall thickness consistency across every cavity. It also controls material shrinkage rates perfectly. If the aluminum mold runs too hot, the plastic sticks and tears. If it runs too cold, the material warps upon ejection.
You need a rigorous framework for evaluating chiller sizing metrics. Do not guess your cooling tonnage requirements. Proper sizing focuses heavily on the specific heat of the plastic polymer being formed. Different materials, like PET or Polypropylene, require drastically different thermal removal capacities. You must also calculate your maximum desired throughput in pounds per hour to size the chiller correctly.
Follow these essential steps when sizing your cooling infrastructure:
Flow rate and pressure matter just as much as raw temperature. You must maintain adequate GPM (gallons per minute) from your pumps. High GPM ensures turbulent water flow through the internal mold cooling channels. Turbulent flow transfers heat significantly faster than slow, laminar flow. Efficient heat transfer shrinks your cycle times dramatically.
Maintenance realities dictate your long-term success. Water quality remains a constant industrial battle. You must manage system pH levels carefully. Use proper industrial filtration to catch metal scale and debris. Apply anti-scaling chemical treatments regularly. These proactive steps prevent clogged mold channels, ensuring uniform cooling over years of operation.
A phenomenal machine fails quickly in a poorly planned space. Optimizing your thermoforming factory layout guarantees better utility access and smoother operations. Spatial logistics impact every single daily task. You must choose carefully between overhead utility drops and concrete floor trenches. Overhead drops keep the factory floors perfectly clear but require highly robust ceiling trusses. Floor trenches look incredibly clean but frequently accumulate water or industrial debris. Your routing choice directly impacts how forklifts navigate the production floor.
You must allocate substantial maintenance clearances around the entire line. Do not just measure the static machine footprint. You need extra open space for safe, heavy tooling removal using overhead cranes. Jumbo film roll loading requires wide, unobstructed aisles for material handling equipment. Electrical cabinet doors must open fully to 90 degrees without hitting walls or structural pillars.
Ventilation and exhaust systems require heavy upfront planning. Machine oven arrays generate immense ambient heat into the factory. You need serious HVAC planning to maintain a safe, comfortable operator environment. Proper overhead ventilation also prevents localized overheating around sensitive electronic cabinets.
We make a transparent assumption here regarding real-world facilities. Ideal layouts are rarely possible in existing buildings. Existing structural columns and low roof heights always constrain your spatial choices. Prioritize safety clearances first. Then, prioritize smooth raw material flow. You can compromise on aesthetic utility routing, but never compromise on operator safety.
Proper vendor accountability prevents installation disasters. You must extract specific, highly accurate documentation from the equipment manufacturer early in the process. Ask for certified utility drawings containing exact connection point coordinates. Demand acceptable tolerance ranges for voltage, water pressure, and air volume. Do not accept generic sales brochures as technical guidelines.
Contractor handoff requires meticulous organization. Outline exactly how to package these OEM specifications for your internal facility teams. If you use external MEP (Mechanical, Electrical, and Plumbing) contractors, give them a consolidated requirements packet. Clear documentation prevents contractors from making dangerous assumptions about pipe sizes or breaker ratings.
We strongly propose a strict pre-shipment utility sign-off protocol. Your facility manager must physically verify every single utility drop before the machine arrives on the receiving dock. Test the air pressure at the drop. Measure the voltage across all three phases. Verify the chiller flow rate. Ensure your facility is 100% ready before rigging the machine into place.
A high-performance thermoforming machine is truly only as reliable as the core utilities feeding it. Skimping on electrical capacity, pneumatic volume, or cooling tonnage severely limits your production speed and part quality. We advise engaging your facility engineers simultaneously with the machine procurement process. Never treat infrastructure upgrades as an afterthought.
By mapping out peak loads, ensuring pure air supply, and optimizing your factory floor layout, you guarantee a smooth, profitable commissioning phase. Take action today by reviewing your current facility capacities. Direct your internal teams to contact the sales engineering team for a comprehensive site evaluation, or request the specific utility requirement datasheets for your targeted machine models.
A: Only if the central system has verifiable excess capacity (CFM) and a dedicated accumulator tank near the machine. This tank handles sudden volumetric demands without starving other plant equipment. You must also ensure the central air meets strict ISO filtration standards for dryness and oil removal.
A: Temperature instability leads immediately to part warping, uneven plastic shrinkage, and extended cooling times. This fluctuation degrades both your final part quality and your overall hourly output. Consistent temperature control is absolutely vital for maintaining tight dimensional tolerances.
A: Plan a minimum of 12-16 weeks prior to the delivery date. This timeframe accounts for local municipal permitting, extended lead times on heavy electrical gear like transformers, and the scheduling availability of specialized plumbing and electrical contractors.
