When selecting a plastic manufacturing process, engineers and product designers face a critical decision. Both pressure forming and vacuum forming are valuable subsets of thermoforming, but they serve distinctly different needs. The central challenge involves balancing the demand for high-quality aesthetics and complex geometries against tooling budgets and production lead times. Many guides offer basic definitions, but making an optimal choice requires a deeper analysis. This article moves beyond the fundamentals to evaluate which process truly optimizes the Total Cost of Ownership (TCO) and elevates end-product performance for your specific application. You will learn to identify the key differentiators—from applied force to tooling strategy—that determine the success of your project.
Pressure Forming provides 5–7x the force of vacuum forming, enabling injection-molded quality (sharp corners, textures, undercuts) at a fraction of the tooling cost.
Vacuum Forming remains the most cost-effective solution for large, simple parts where internal dimensional consistency is prioritized over external aesthetics.
Tooling Strategy: Vacuum forming typically utilizes male molds (focus on inside dimensions); pressure forming utilizes female molds (focus on outside aesthetics and textures).
The "Sweet Spot": Pressure forming is the primary alternative to injection molding for annual volumes between 100 and 5,000 units.
The fundamental difference between Pressure Forming and vacuum forming lies in the amount and type of force used to shape the heated plastic sheet. This single variable dictates everything from geometric possibilities to surface finish.
Vacuum forming is the simpler and more established of the two thermoforming processes. The procedure is straightforward:
A plastic sheet is heated until it becomes pliable and elastic.
The soft sheet is draped over or lowered onto a mold.
A vacuum pump removes the air from the space between the sheet and the mold surface.
The pressure of the surrounding atmosphere (approximately 14.7 pounds per square inch, or psi, at sea level) pushes the sheet down, forcing it to conform to the mold's shape.
The critical limitation here is the force itself. You are working with a maximum of one atmosphere of pressure. This is sufficient for simple shapes, trays, and covers, but it results in naturally rounded edges and "soft" features. The material is pulled into place rather than being actively driven, which limits its ability to capture fine detail.
Pressure forming elevates the process by adding a second, more powerful force. It combines the initial vacuum suction with a blast of positive air pressure applied to the top side of the plastic sheet. This compressed air acts like a piston, actively driving the material into every crevice of the mold.
The process leverages a sealed pressure box above the plastic sheet. While the vacuum below removes air, the compressed air above applies pressure typically ranging from 60 to 100 psi, and sometimes even higher. This force, which is 5 to 7 times greater than atmospheric pressure, enables incredible precision. It allows the plastic to be pushed into tight radii, sharp corners, and intricate mold details, perfectly capturing textures with features smaller than one micrometer (<1μm).
The significant difference in applied force directly translates to a vast gap in aesthetic and geometric potential. Pressure forming bridges the quality gap between traditional thermoforming and injection molding, often at a much lower tooling investment.

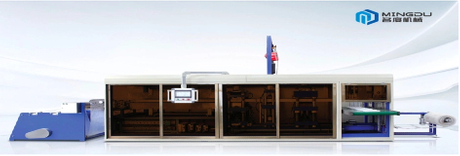

A modern Pressure Forming Machine excels at replicating the exact texture of the mold surface directly onto the part. This capability opens up a world of design possibilities:
Textured Finishes: You can achieve finishes like leather grain, brushed metal, or matte surfaces in-mold, giving the final product a premium look and feel.
Molded-In Branding: Logos, text, and model numbers can be crisply molded directly into the part, eliminating the need for labels or decals.
Color and Finish Consistency: By using pre-colored plastic sheets, the color is inherent to the material, preventing chips, scratches, or flaking associated with painted parts.
A major benefit of this is the elimination of secondary operations. For many medical and industrial enclosures, pressure forming removes the need for post-process painting, silk-screening, or shielding. This not only saves costs but also simplifies the supply chain and shortens lead times.
In Vacuum Forming, as the plastic stretches into a deep draw or a sharp corner, it often thins out excessively. This phenomenon, known as "webbing," creates weak points and prevents the formation of crisp lines. The limited force simply can't push the material uniformly into tight spaces.
Pressure forming overcomes this challenge. The high, evenly distributed pressure forces the material into corners and against vertical walls, maintaining more consistent material thickness. This makes it possible to achieve "zero-degree" draft angles (perfectly vertical walls) and sharp, clean lines that are visually indistinguishable from an injection-molded part.
Undercuts are features that prevent a part from being pulled directly off a simple, one-piece mold. Examples include snap-fit tabs, recessed handles, or ventilation louvers. These are generally impossible to create with standard vacuum forming.
Pressure forming tools can incorporate sophisticated mechanisms like moving cores, slides, and pneumatic side-actions. These tool components move into place to form the undercut feature and then retract before the part is ejected. This capability allows for the creation of highly complex, multi-functional parts in a single forming cycle, further reducing the need for assembly or secondary fabrication.
The choice between processes also dictates the tooling approach. The type of mold—male or female—and its material composition are determined by the part's critical requirements.
Understanding the difference between mold types is crucial for ensuring dimensional accuracy where it matters most.
Vacuum Forming (Male Molds): This process most often uses a male mold, where the plastic sheet is formed over a convex tool. The surface of the mold directly touches the inside surface of the part. This is the ideal strategy when you need to control the internal dimensions precisely, for instance, to ensure a cover fits perfectly over an internal component or chassis. The exterior surface, however, will have less defined features.
Pressure Forming (Female Molds): This process typically uses a female mold, where the plastic sheet is pushed into a concave cavity. Here, the mold surface touches the outside of the part. This approach is chosen when the external "show-side" aesthetics are paramount. It allows for perfect replication of texture, logos, and sharp details on the surface that users will see and touch.
Thermoforming tooling is significantly more affordable and faster to produce than the hardened steel tools required for injection molding. However, costs and capabilities vary within the thermoforming world.
Tooling Material | Primary Use | Cost | Durability |
|---|---|---|---|
Wood / MDF | Low-volume prototypes (Vacuum Forming) | Lowest | Low (1-50 parts) |
Epoxy / Urethane | Prototypes and short runs (Both) | Low to Medium | Medium (50-500 parts) |
Temperature-Controlled Aluminum | Production runs (Pressure Forming & High-Volume Vacuum Forming) | High | High (10,000+ parts) |
Temperature-controlled aluminum molds are standard for pressure forming. The internal channels for heating and cooling allow for precise temperature regulation, which is essential for managing material shrinkage, reducing cycle times, and ensuring part-to-part consistency. Despite being more complex, thermoforming tooling lead times are typically 50–70% faster than those for injection molding steel tools.
Choosing the right process is not just a technical decision; it's an economic one. Analyzing the total cost of ownership (TCO) requires looking beyond the initial tool price to consider unit cost, secondary operations, and production volume.
There is a clear trade-off. Vacuum forming has the lowest tooling cost, making it attractive for prototypes and very low-volume projects. Pressure forming tooling is more expensive due to its robust construction and temperature control features. However, the higher initial investment can lead to a lower TCO. The "break-even" point occurs when the higher tooling cost of a Pressure And Vacuum Forming Machine setup is offset by savings from eliminating secondary operations like painting, assembly, or labeling.
The optimal process often aligns with your expected annual production volume. Here is a general framework:
Low Volume (1–100 units): Vacuum forming is the undisputed champion here. Its low tooling cost and rapid setup make it perfect for prototypes, custom one-offs, and initial pilot runs.
Mid Volume (100–5,000 units): This is the "Pressure Forming Sweet Spot." For these volumes, the cost of injection molding tooling is often prohibitive. Pressure forming delivers injection-molded quality for products like high-end medical device enclosures, industrial equipment housings, and aerospace components without the massive capital expenditure.
High Volume (5,000+ units): As volumes climb, the higher unit price of thermoforming starts to add up. At this stage, it becomes economically viable to invest in expensive steel tooling for injection molding, as the lower per-part cost will eventually offset the initial investment.
The cost of a "finished" part goes beyond the forming machine. Always factor in the cost of secondary operations, which can include:
CNC Trimming: Both processes require trimming the part from the excess plastic sheet. 5-axis CNC routing is standard for achieving tight tolerances.
Bonding and Assembly: Parts may need to be joined using solvent bonding, ultrasonic welding, or mechanical fasteners.
Finishing: This includes painting, silk-screening, EMI/RFI shielding, and adding inserts or hardware.
Pressure forming often integrates features that significantly reduce these downstream costs, reinforcing its value in the mid-volume production range.
Successfully implementing either process requires careful planning around material behavior, design principles, and quality control.
A wide range of thermoplastic resins are compatible with both processes, including ABS, PC (Polycarbonate), PETG, HDPE, and TPO. However, the chosen material will behave differently under high pressure. "Material memory" and shrinkage rates are more pronounced in pressure forming. An experienced manufacturing partner will account for these factors in the tool design, ensuring the final part dimensions are accurate after cooling.
Failing to account for the material's specific shrink rate in the CAD model can lead to parts that are out of tolerance. Always consult your material supplier's datasheet and collaborate with your thermoformer during the design phase.
Adhering to DFM principles is critical for avoiding defects and ensuring a smooth production run. Key considerations include:
Draft Angles: All vertical walls should have a slight taper (draft) to facilitate easy removal from the mold. Pressure forming can accommodate near-zero draft, but 1-3 degrees is a safe practice.
Ribbing: Adding ribs can enhance structural integrity and stiffness without increasing wall thickness, but they must be designed to form correctly.
Vent Hole Placement: Tiny vent holes in the mold are essential for allowing trapped air to escape. Poor placement can lead to air bubbles or incomplete feature formation.
For many applications, parts must meet stringent regulatory standards. Pressure-formed parts are frequently used in highly regulated industries. For example, medical enclosures can be made from UL 94-V0 rated flame-retardant plastics and produced in facilities that comply with ISO 13485 quality management standards for medical devices. This level of compliance is a testament to the process's precision and repeatability.
The path to choosing the right thermoforming process is clear when you focus on your project's core priorities. The decision hinges on the balance between cost-effective simplicity and high-fidelity complexity.
Here is the path to your choice:
Choose Vacuum Forming for scale and simplicity. If your part is large, has a relatively simple design, and your primary concern is controlling internal dimensions on a tight budget, vacuum forming is your ideal solution.
Choose Pressure Forming for aesthetics and complexity. If your part requires sharp details, textured surfaces, molded-in branding, and complex features like undercuts—and needs to rival injection molding quality—pressure forming is the clear winner.
Your next step should be to engage a manufacturing partner for a Design for Manufacturability (DFM) review. By submitting your CAD files, you can get expert feedback on your design and receive comparative quotes for prototypes and production tooling, ensuring you make the most informed and cost-effective decision.
A: No, a direct conversion is generally not feasible. A pressure forming machine requires a fundamentally different architecture, including a robust frame to withstand high pressures, a sealed pressure box that clamps over the plastic sheet, and a high-volume compressed air supply system. These components are not part of a standard vacuum former.
A: Vacuum forming is overwhelmingly the preferred method for very large parts with simple geometries, such as hot tub liners, truck bed liners, and shipping pallets. The tooling is less complex and more cost-effective at that scale, and the aesthetic requirements do not typically demand the precision of pressure forming.
A: Pressure forming generally has lower tooling costs and faster cycle times than RIM, making it better for mid-volume production. RIM is often used for very large, rigid, and lightweight structural parts (like automotive bumpers) and can create much thicker walls than thermoforming. The choice depends on the trade-off between tooling cost, part weight, and structural requirements.
A: While tolerances depend on part size, material, and complexity, pressure-formed parts can typically hold tolerances of +/- 0.020 to +/- 0.040 inches. For critical features, even tighter tolerances can be achieved through careful tool design and process control, often rivaling those of injection molding for specific applications.
