Plastic thermoforming is a widely used manufacturing process that transforms plastic sheets into various shapes and sizes. The process involves heating a plastic sheet until it becomes pliable, then forming it over a mold to create a desired product. As technology advances, plastic thermoforming machines have evolved, offering increased efficiency, versatility, and precision. This guide will explore the technology behind plastic thermoforming machines, their applications, and the benefits they provide to various industries.
Thermoforming is a manufacturing process that involves heating plastic sheets until they become soft and pliable. The softened sheet is then shaped over a mold using vacuum or pressure, allowing it to take on the mold's shape. Once cooled, the plastic retains its new form. There are two main types of thermoforming: vacuum forming and pressure forming. Vacuum forming uses suction to pull the plastic sheet into the mold, while pressure forming utilizes air pressure to push the sheet into the mold.
1. Single Station Machines: These machines perform one process at a time, which may include heating, forming, and trimming. They are often used for smaller production runs and prototyping.
2. Multi-Station Machines: Designed for higher production rates, multi-station machines can perform multiple processes simultaneously. They often feature automated loading and unloading systems.
3. Roll-Fed Thermoforming Machines: These machines use a continuous roll of plastic film, feeding it into the heating and forming areas. This method is ideal for high-volume production of consistent products.
4. Sheet-Fed Thermoforming Machines: In this setup, individual sheets of plastic are used, which allows for more customization but can be slower than roll-fed machines.
The first step in the thermoforming process is heating the plastic sheet. The sheet is placed in a heating chamber where it is subjected to controlled temperatures. The temperature and duration of heating depend on the type of plastic being used. Common materials for thermoforming include polystyrene (PS), polyvinyl chloride (PVC), polyethylene (PE), and polypropylene (PP).
Once the plastic reaches the desired temperature, it is removed from the heating chamber and quickly positioned over the mold. The forming method—either vacuum or pressure—is then applied. In vacuum forming, the air is removed from beneath the sheet, allowing atmospheric pressure to push the sheet onto the mold. In pressure forming, air pressure is applied to force the sheet into the mold.
After the plastic has been formed, it needs to cool to retain its shape. Cooling can be accomplished through ambient air or by using cooling systems that circulate chilled water or air around the mold.
Once cooled, the formed part is removed from the mold. Any excess material is trimmed away, and finishing processes such as drilling, printing, or additional surface treatments may be applied to enhance the final product.
Plastic thermoforming machines are versatile and used across a wide range of industries. Here are some notable applications:

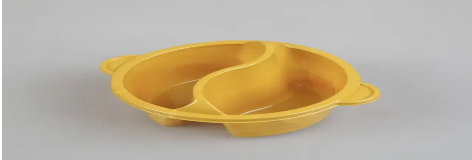

One of the most common applications of thermoforming is in the packaging industry. Thermoformed plastic containers, trays, and clamshells are used to package food, medical supplies, electronics, and consumer goods. The lightweight and durable nature of thermoformed packaging helps protect products during transport while maintaining shelf appeal.
In the automotive sector, thermoforming is used to create interior components such as dashboard covers, door panels, and instrument panels. The ability to produce complex shapes with precision makes thermoforming an attractive option for automotive manufacturers seeking to enhance vehicle aesthetics and functionality.
Thermoforming machines play a critical role in the medical industry by producing sterile packaging for medical devices and instruments. Custom trays and containers help organize and protect delicate instruments, ensuring they remain clean and safe for use.
From plastic containers to decorative items, consumer goods manufacturers leverage thermoforming to create a variety of products. The process allows for high customization and quick turnaround times, making it ideal for producing small to medium-sized batches of consumer products.
Thermoforming machines are also utilized in industrial settings to create protective covers, equipment housings, and various components for machinery. The durability and versatility of thermoformed products make them suitable for demanding environments.
Thermoforming is often more cost-effective than other manufacturing methods, especially for short to medium production runs. The reduced material waste and lower tooling costs contribute to overall savings.
The thermoforming process allows for rapid production, making it ideal for industries that require quick delivery of products. The ability to produce prototypes quickly also enables faster product development cycles.
Thermoforming machines can produce complex shapes and sizes, accommodating a wide range of design requirements. This flexibility is particularly beneficial for custom projects.
Thermoformed plastic products are lightweight, which is advantageous for shipping and handling. The lightweight nature of these products also contributes to energy savings in transportation.
Many thermoforming machines can utilize recycled materials, reducing environmental impact. Additionally, the energy efficiency of the process contributes to sustainable manufacturing practices.
While plastic thermoforming offers numerous benefits, it is not without challenges. Some potential issues include:
1. Material Limitations: Not all plastics are suitable for thermoforming. The material must have specific properties, such as the ability to be heated and shaped without losing integrity.
2. Surface Quality: Achieving a consistent surface finish can be challenging, especially with thicker materials. Manufacturers must pay close attention to heating and cooling processes to ensure high-quality results.
3. Tooling Costs: While tooling costs are generally lower than other methods, they can still represent a significant investment, particularly for complex molds.
As technology continues to advance, several trends are emerging in the field of plastic thermoforming:
Automation: The integration of automation in thermoforming processes is expected to increase efficiency and reduce labor costs. Automated systems can handle loading, unloading, and quality inspection.
Smart Manufacturing: The adoption of Industry 4.0 technologies, such as IoT sensors and data analytics, is poised to enhance monitoring and control throughout the thermoforming process, leading to improved quality and reduced waste.
Sustainable Materials: The demand for eco-friendly materials is driving innovation in thermoforming. Manufacturers are exploring bio-based plastics and recycled materials to meet sustainability goals.
Customization: As consumer preferences shift towards personalized products, thermoforming technology is evolving to accommodate more custom shapes and designs.
1.What industries commonly use thermoforming?
· Industries include packaging, food service, medical devices, automotive parts, consumer products, and more. Thermoforming is particularly popular for applications requiring lightweight and durable packaging.
2.Can thermoforming be automated?
· Yes, many modern thermoforming machines are equipped with automation features for loading, unloading, and trimming, which increases efficiency and reduces labor costs.
3.What factors influence the choice of a thermoforming machine?
· Key factors include the type of materials used, desired production volume, part complexity, budget, and space availability in the manufacturing facility.
Plastic thermoforming machines play a vital role in modern manufacturing, offering a cost-effective and efficient method for producing a wide range of products. With applications spanning various industries—from packaging to automotive—thermoforming continues to evolve, driven by advancements in technology and a growing focus on sustainability. As manufacturers explore new materials and innovative processes, plastic thermoforming is poised to remain a key player in the future of manufacturing.
