The thermoforming process transforms a flat thermoplastic sheet into a three-dimensional product through controlled heating and forming. After the sheet becomes pliable, it is shaped over or inside a mold using vacuum pressure, positive air pressure, mechanical force, or a combination of methods. The formed part is then cooled, released, trimmed, and inspected. This manufacturing method is used for packaging, food trays, medical components, automotive interiors, protective covers, and industrial parts. Its results depend on material selection, sheet thickness, mold design, heating uniformity, and production requirements.
Key Takeaways
What Is the Thermoforming Process?
What Are the Main Steps in Thermoforming?
How Do Heating and Forming Work Together?
Which Materials Are Used in Thermoforming?
How Does Mold Design Affect Thermoformed Parts?
What Are the Common Thermoforming Defects?
Where Are Thermoformed Plastic Parts Used?
How Does Product Development Work for Thermoforming?
How to Choose Thermoforming Equipment
Questions to Ask a Thermoforming Machine Supplier
Frequently Asked Questions
Conclusion
The thermoforming process heats a thermoplastic sheet and shapes it over or inside a mold.
The main stages include product design, material selection, clamping, heating, forming, cooling, trimming and inspection.
Vacuum forming, pressure forming and mechanical forming use different methods to bring the heated sheet into contact with the mold.
Material type, sheet thickness, mold design and heating uniformity all influence the finished product.
Thermoformed plastic parts are used in packaging, food service, medical products, transportation, agriculture, consumer goods and industrial equipment.
Equipment should be selected according to the product shape, forming area, material, thickness, production volume and required automation.
The thermoforming process is a plastic manufacturing method that uses heat to soften a thermoplastic sheet before forming it over or inside a mold. Once the material cools, it retains the shape of the mold and can be trimmed or finished to create the final product.
Unlike processes that begin with liquid resin or molten plastic, thermoforming starts with a solid plastic sheet. This makes the process suitable for a wide range of products, from thin packaging trays to larger industrial covers and interior components.
A typical thermoforming manufacturing process includes:
Product and mold design
Selection of a suitable thermoplastic sheet
Clamping the sheet in the machine
Heating the sheet evenly
Forming the softened sheet against a mold
Cooling and stabilizing the formed part
Trimming excess material
Inspecting and finishing the product
The exact forming method depends on the product design. Some machines use vacuum pressure to pull the heated sheet against the mold. Others combine vacuum and positive air pressure to improve detail reproduction. Mechanical tools may also be used to assist stretching or control the sheet during forming.
Thermoforming is often selected when manufacturers need flexible tooling, formed sheet products, large surface areas or a practical solution for low to medium production volumes. The process can also be adapted for automated production when feeding, forming, cutting and stacking are integrated into one machine line.
The thermoforming production process should begin with a product design review. Before a mold is manufactured, engineers should evaluate whether the shape can be formed consistently from a heated sheet.
Important design factors include:
Overall length, width and height
Forming depth
Wall thickness requirements
Corner radius
Draft angle
Undercuts
Surface texture
Cutting line
Product stacking method
Required assembly features
A shape that looks suitable on a computer drawing may still create forming difficulties if it contains deep cavities, sharp corners or difficult undercuts. Reviewing manufacturability at the beginning can reduce tooling changes and production problems later.
The product design should also consider the final use of the part. A food tray may require clean edges and consistent stacking. An industrial cover may need rigidity and impact resistance. A medical packaging component may require accurate cavities and controlled handling.
The next step is selecting the sheet material. Different thermoplastics have different forming characteristics, stiffness, surface properties and temperature requirements.
The selected material should match:
Product function
Required rigidity
Impact resistance
Transparency
Chemical exposure
Heat performance
Surface appearance
Regulatory or customer requirements
Target production cost
Common materials include PP, PET, PS, PVC, ABS and polycarbonate. The material supplier’s sheet specification should be reviewed together with the thermoforming machine supplier because sheet grade and thickness can affect the process settings.
A material that performs well for a shallow tray may not be suitable for a deep industrial part. Similarly, a transparent sheet may require more careful heating control to maintain consistent appearance across the finished part.
The plastic sheet is secured in a clamping frame before heating. The frame must hold the sheet firmly and maintain its position throughout the process.
Stable clamping helps ensure:
Accurate sheet alignment
Consistent forming position
Repeatable cavity dimensions
Correct cutting location
Better material distribution
If the sheet shifts during heating or forming, the finished part may have an uneven edge or different wall thickness from one cavity to another.
For automated equipment, the sheet-feeding system should place each sheet in the same position. The relationship between feeding, clamping, heating, forming and cutting must remain stable over repeated cycles.
Heating makes the thermoplastic sheet flexible enough to form. The goal is not simply to make the sheet hot. The sheet must reach a suitable and relatively uniform forming condition across the entire forming area.
Heating performance is influenced by:
Material type
Sheet thickness
Heater arrangement
Heating time
Distance from the heating elements
Number of heating zones
Sheet color
Surface finish
Machine cycle requirements
If some areas of the sheet are too cold, the material may not stretch properly. This can produce incomplete corners, weak details or excessive forming force. If another area becomes too hot, it may sag too far or become thinner than intended.
Multi-zone heating allows manufacturers to adjust different sections of the sheet according to the mold layout. This can be useful for products with different cavity depths or uneven geometry.
The correct heating settings should be established through material testing and production trials. General material names alone are not enough because different sheet grades and thicknesses may respond differently.
Once the sheet reaches the required forming condition, it is brought into contact with the mold. The machine then applies one or more forming methods to shape the material.
The main methods include:
Vacuum forming
Pressure forming
Mechanical forming
Plug-assisted forming
Combined forming methods
Vacuum forming removes air between the sheet and mold so that the sheet is drawn against the mold surface. Pressure forming adds positive air pressure to improve contact and reproduce more detailed features.
Mechanical assistance may be used to help guide the material into a deep cavity or improve material distribution before vacuum or air pressure is applied.
The suitable method depends on:
Product geometry
Forming depth
Surface detail
Material behavior
Required dimensional accuracy
Production volume
Mold design
For a detailed explanation of the vacuum-specific forming sequence, manufacturers can refer to the vacuum forming process. This current article focuses on the broader thermoforming process and the relationship between different forming methods.
After forming, the plastic must cool while it remains in the required shape. Cooling allows the material to regain rigidity and stabilize its dimensions.
Cooling time depends on:
Material type
Sheet thickness
Product wall thickness
Mold temperature
Product size
Mold construction
Required cycle time
Cooling system design
Releasing a part too early can result in warping, shrinkage or loss of detail. Keeping the part in the mold for too long, however, can reduce production efficiency.
Cooling should be as consistent as possible across the product. Uneven cooling may cause one side of the part to contract differently from another. This can affect assembly, stacking, sealing or the fit between connected components.
After cooling, the formed sheet is removed from the mold and excess material is trimmed away. Depending on the machine and product, trimming may be carried out through a cutting die, punching tool, laser system, CNC equipment or manual finishing.
Trimming affects:
Product dimensions
Edge quality
Stacking performance
Assembly fit
Appearance
Operator safety
Material recovery
Packaging products often require clean and consistent edges because uneven trimming can affect lidding or stacking. Industrial components may require additional drilling, machining, surface treatment or assembly after forming.
The final step is inspection. Manufacturers may check:
Overall dimensions
Forming depth
Wall thickness
Edge position
Surface finish
Cavity shape
Warping
Cracks or tears
Product weight
Stacking consistency
Inspection results should be used to adjust the process when necessary. Changes may involve heating zones, forming timing, vacuum or pressure settings, cooling duration, mold ventilation or trimming alignment.
A stable thermoforming process is achieved through continuous control of these connected variables rather than by adjusting one setting in isolation.
Heating and forming are closely related. The sheet must be flexible enough to follow the mold but stable enough to maintain controlled material distribution.
If the sheet is not heated sufficiently:
The material may resist stretching
Deep areas may not form completely
Corners may show stress marks
The machine may require more forming force
Cracks or tears may occur
If the sheet is overheated:
Excessive sagging may occur
The wall thickness may become uneven
The material may stick to the mold
Surface appearance may change
Product dimensions may become unstable
The mold also affects how the sheet responds to heating. A mold with deep cavities, narrow sections or multiple levels may require different temperature distribution from a simple shallow mold.
For industrial thermoforming plastic parts, the heating pattern should be evaluated together with the product layout. A multi-cavity mold may not need exactly the same temperature in every zone if the cavities have different shapes or depths.
The forming method also affects heating requirements. Vacuum forming, pressure forming and mechanically assisted forming may place different demands on material flexibility and temperature control.
The most suitable plastic depends on the finished product, not only on the forming method.
| Material | Common Characteristics | Applications to Consider | Process Considerations |
|---|---|---|---|
| PP | Flexible, lightweight and resistant to many chemicals | Food packaging, containers and selected industrial parts | Heating and cooling settings should match the sheet grade |
| PET | Clear, relatively rigid and suitable for transparent packaging | Trays, containers, covers and packaging products | Uniform heating helps maintain appearance and dimensions |
| PS | Lightweight, rigid and widely used in formed packaging | Food trays, containers and disposable products | Product depth and sheet thickness affect material distribution |
| PVC | Versatile and available in different formulations | Packaging and selected formed components | The exact formulation should be confirmed before production |
| ABS | Tough and suitable for formed covers and housings | Automotive, industrial and consumer components | Heating must be controlled around corners and deeper sections |
| PC | Strong and impact-resistant for selected applications | Protective covers and industrial components | Mold design and forming conditions should be tested carefully |
PP may be considered for packaging and containers that require flexibility or chemical resistance. Its forming conditions depend on sheet thickness, formulation and product geometry.
When planning a PP project, the machine supplier should review the product drawing and confirm whether the proposed heating and forming system is suitable for the selected PP sheet.
PET may be selected when transparency and rigidity are important. It can be used for trays, containers and protective packaging.
Surface appearance can be affected by heating uniformity, sheet quality and mold condition. Scratches or contamination on the sheet may become more visible after forming.
PS is often considered for lightweight and rigid formed packaging. It may be suitable for food trays, disposable containers and inserts.
The correct PS sheet thickness depends on the required strength, tray size, cavity depth and stacking requirements.
PVC, ABS and PC may be used for different packaging, industrial and consumer applications. Their forming behavior varies according to the sheet grade and product structure.
Manufacturers should request technical confirmation based on the exact material specification rather than assuming that all sheets of the same plastic type will process identically.
Mold design affects product dimensions, material distribution, release behavior and surface quality.
The mold should reflect the product’s required shape while allowing the heated sheet to stretch into the cavity. Deep cavities may require more material movement and careful heating control.
Draft angles help the formed product release from the mold. Parts with vertical walls or undercuts may be more difficult to remove and may require special tooling solutions.
Draft angles should be considered during product design instead of being treated as a correction after mold production.
Very sharp corners can concentrate stretching in a small area. This may lead to local thinning or incomplete forming.
Suitable corner radii allow the material to flow more evenly and can improve product strength and appearance.
Venting allows trapped air to escape during vacuum-assisted forming. Poor ventilation can produce incomplete details, air pockets or surface irregularities.
Vent locations should be planned according to the cavity shape and areas where air may become trapped.
For repeated production, cooling consistency is important. The mold should be reviewed for suitable cooling arrangements, particularly when the product has thick sections or a large surface area.
The mold and cutting system should be aligned so that the finished part can be separated accurately. This is especially important for trays and containers that must stack evenly after trimming.
| Defect | Possible Causes | Areas to Check |
|---|---|---|
| Uneven wall thickness | Uneven heating or excessive stretching | Heating zones, sheet thickness and mold depth |
| Incomplete forming | Low sheet temperature or insufficient air removal | Heating, vacuum system and mold vents |
| Webbing or folds | Poor cavity spacing or uncontrolled material movement | Mold layout and forming sequence |
| Warping | Early release or uneven cooling | Cooling time and mold temperature |
| Cracking | Excessive stretching or unsuitable forming condition | Material, thickness and product geometry |
| Surface marks | Contaminated sheet or damaged mold | Sheet storage, mold surface and handling |
| Poor edge quality | Misaligned cutting or unstable sheet position | Clamping, mold alignment and trimming |
| Dimensional variation | Inconsistent process conditions | Temperature, pressure, timing and machine stability |
Uneven wall thickness is common when the sheet stretches more in some areas than others. It may be influenced by forming depth, corner shape, sheet temperature and mold geometry.
Possible improvements include adjusting the heating pattern, changing the sheet thickness, improving pre-stretching or reviewing the product design.
Incomplete forming may occur when the sheet cannot reach the bottom or side of the mold cavity. Possible causes include insufficient heating, blocked vents, unsuitable vacuum performance or an overly complex shape.
The entire forming sequence should be checked rather than increasing vacuum settings alone.
Webbing appears as folds or unwanted material bridges between nearby sections of the mold. It may be caused by poor cavity spacing, excessive material movement or an unsuitable forming sequence.
Increasing cavity spacing, adjusting the mold design or changing the forming approach may help.
Warping may occur when the product is released before it has stabilized or when different areas cool at different rates.
Review the cooling process, mold temperature and release timing before making changes to the material.

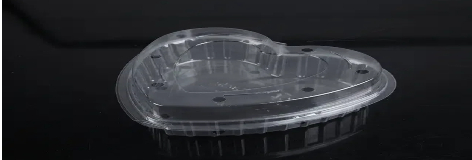

Thermoformed plastic parts are used across many industries because the process can produce thin packaging, medium-sized components and larger formed surfaces.
Food packaging applications may include:
Trays
Containers
Lids
Clamshells
Bakery inserts
Produce packaging
Takeaway packaging
The machine configuration depends on product dimensions, material, sheet thickness, cavity count, trimming requirements and downstream sealing or packing equipment.
Thermoforming may be used for selected medical trays, device packaging, protective covers and equipment components.
Product requirements should be reviewed carefully because packaging design, material selection, handling and downstream processes may vary for different healthcare products.
Industrial thermoforming plastic parts may include interior panels, covers, liners, housings and protective components.
Thermoforming can be considered when manufacturers need lightweight formed surfaces, design flexibility or parts that are difficult to produce economically through another process.
Applications may include:
Machine covers
Protective guards
Equipment housings
Tool trays
Industrial enclosures
Component separators
The correct material and sheet thickness depend on impact, chemical, temperature and dimensional requirements.
Thermoformed plastic is also used for displays, storage products, protective packaging, household components and custom product inserts.
A successful thermoforming project should connect design, materials, tooling and production planning from the beginning.
The design team should confirm that the part can be formed and released from the mold. Draft angles, corner radii, forming depth and trimming lines should be considered before finalizing the design.
The material should be selected according to performance, appearance, thickness, availability and forming behavior.
Material testing may be required when a product uses a new sheet grade or an unusual combination of depth and geometry.
The mold should include suitable cavity geometry, ventilation, cooling arrangements and trimming references.
The mold construction should also reflect the expected production volume. A prototype or small-batch project may require a different tooling approach from a long-term automated production line.
Before full production, trial forming can help confirm:
Heating settings
Forming method
Vacuum or pressure performance
Cooling time
Product release
Wall thickness
Trimming accuracy
Finished appearance
After trials, the process may need adjustments. The goal is to create a stable production window rather than rely on one exact machine setting.
The right equipment should be selected according to the product and production plan.
The forming area must accommodate the finished product, mold border and cutting clearance. For multi-cavity molds, it also determines how many products can be arranged in one cycle.
Confirm the materials and thickness range that the machine is designed to process. The exact sheet grade should be discussed with the supplier.
Consider whether the product requires:
Vacuum forming
Pressure forming
Combined vacuum and pressure forming
Mechanical assistance
In-line cutting
Separate trimming

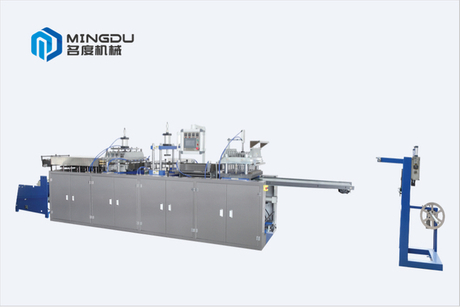

MINGDU’s Pressure And Vacuum Forming Machine category can be reviewed for projects that require flexible forming methods.
For higher production volumes, automatic feeding, forming, punching, cutting and stacking may reduce manual handling and improve process coordination.

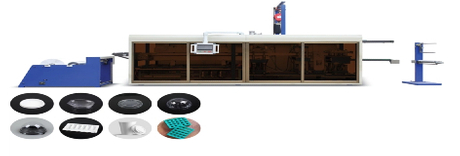

For thinner packaging sheets and high-speed production, manufacturers can review the Thin-Gauge Thermoforming Machine category.
A Multistation Thermoforming Machine may be considered when several production steps need to be coordinated in one continuous workflow.
If the factory produces different products, mold changeover time can affect equipment utilization. Ask how molds are installed, adjusted and stored, and whether machine recipes can be saved for different products.
Check whether cutting and stacking are integrated or require separate equipment. The appropriate choice depends on product shape, production volume, edge requirements and downstream packaging.
Before requesting a quotation, prepare the product drawing, material information, sheet thickness and target output.
Ask the supplier:
Which thermoplastic materials can the machine process?
What sheet thickness range is supported?
What forming area is available?
What is the maximum practical forming depth?
Which forming method is recommended for the product?
How is the sheet heated and controlled?
How is the mold vented and cooled?
How are formed parts trimmed?
Is automatic stacking available?
How long does mold changeover take?
What utility connections are required?
Can the supplier carry out forming trials?
What information is required to estimate output?
Which downstream packaging equipment must be considered?
A supplier should base the recommendation on the product rather than provide a generic machine model. Drawings, samples and material information allow the forming process to be evaluated more accurately.
The thermoforming process heats a thermoplastic sheet until it becomes flexible, forms it over or inside a mold and cools it until it retains the required shape. The finished product is then trimmed and inspected.
The main steps include product design, material selection, sheet clamping, heating, forming, cooling, trimming, finishing and inspection.
Common materials include PP, PET, PS, PVC, ABS and polycarbonate. The suitable material depends on the product’s function, appearance, thickness and processing requirements.
Vacuum forming uses vacuum pressure to draw the heated sheet against the mold. Pressure forming adds positive air pressure to improve contact with the mold and may reproduce sharper details.
Uneven thickness may result from inconsistent heating, excessive stretching, deep cavities, sharp corners, unsuitable sheet thickness or an unsuitable mold design.
Thermoforming can be considered for large formed surfaces and components. Suitability depends on the available forming area, material, product geometry, mold structure and production requirements.
Manufacturers can reduce defects by using suitable sheet material, controlling heating uniformly, improving mold ventilation, matching the forming method to the product and allowing enough cooling time.
Equipment should be selected according to product dimensions, forming area, material, sheet thickness, forming depth, mold layout, production volume, cutting method and automation requirements.
The thermoforming process transforms a flat thermoplastic sheet into a three-dimensional product through controlled heating, forming, cooling and finishing.
Product design, material selection, mold construction and machine configuration all influence the final result. Vacuum forming, pressure forming and mechanically assisted forming each have different advantages and should be selected according to the product geometry and production target.
For manufacturers, the most important evaluation points include forming area, sheet thickness, forming depth, heating uniformity, mold ventilation, cooling control, trimming accuracy and automation level.
A well-planned thermoforming production process can support applications in food packaging, medical products, automotive components, industrial equipment and consumer goods.
If you are developing a new thermoformed plastic part, prepare your product drawing, sample, material specification and target output before requesting a machine recommendation.
Contact MINGDU to discuss your thermoforming requirements.
