Scaling production requires transitioning from manual or pre-made pouch packaging to automated rollstock systems. Selecting the wrong equipment leads to excessive film waste, tooling bottlenecks, and compromised seal integrity. Procurement and engineering teams must navigate a fragmented market of equipment types, including shuttle versus inline and flexible versus rigid systems. They must balance throughput requirements against stringent industry compliance, such as FDA washdown or ISO cleanroom standards. This guide provides a comprehensive evaluation framework for selecting a Thermoforming Machine. It breaks down gauge compatibility, tooling agility, industry-specific hardware requirements, and Total Cost of Ownership (TCO). Evaluating these parameters ensures capital investments align with production goals, material constraints, and facility infrastructure.
Gauge Dictates Architecture: Material thickness is the primary filter; thin-gauge (<3mm) requires inline roll-fed systems, while heavy-gauge (>1.5mm) demands shuttle or rotary machines.
Tooling Agility Drives ROI: For high-mix, low-volume operations, multi-station machines (2-4 stations) with sub-30-minute changeovers and compatibility with 3D-printed rapid tooling outperform traditional heavy-duty setups.
Compliance is Hardware-Deep: Medical and high-end food applications require specific engineering, such as zero-dust longitudinal cutting, IP69k washdown ratings, and FMEA/IOV validation protocols.
TCO Extends Beyond CapEx: Long-term profitability relies on evaluating scrap recovery systems, energy-efficient ceramic heaters, and the reliability of core components (e.g., Busch vacuum pumps).
The thermoforming process operates through a continuous, synchronized sequence driven by programmable logic controllers (PLCs) and servo motors. Understanding this sequence helps operators identify potential bottlenecks and optimize cycle times.
Film Feeding & Heating: The bottom film (web) is fed via servo-driven chains. It passes over contact heating plates or radiant ceramic heaters to reach a precise softening temperature, which varies based on the polymer structure.
Forming: The softened film enters the forming station. It is drawn into a die cavity using vacuum suction, positive air pressure, or mechanical plug-assist. This step dictates the structural integrity and wall thickness of the final package.
Product Loading: Operators or robotic systems load the product into the formed pockets. High-speed lines often utilize Delta robots with vision guidance for automated pick-and-place loading, ensuring exact placement without damaging the formed web.
Top Film Sealing: The top web is applied over the loaded pockets. During this stage, systems integrate standard vacuum, Modified Atmosphere Packaging (MAP), or Vacuum Skin Packaging (VSP) before applying thermal sealing pressure to bond the top and bottom webs.
Cutting, Inspection & Scrap Recovery: Cross-cutting and longitudinal slitting separate the continuous web into individual packs. Advanced systems integrate visual inspection cameras to verify seal integrity and detect foreign contaminants. Edge trim is automatically rewound onto tensioned spools for recycling.
Selecting the correct architecture depends entirely on the material thickness required for the application. Thin-gauge systems handle materials under 3mm (0.125 inches) and utilize inline roll-fed mechanisms. They process high-volume disposable food containers, medical blisters, and retail clamshells. These systems offer excellent compatibility with PET, PETG, and PVC, prioritizing rapid cycle times and continuous throughput.
Heavy-gauge systems process sheets ranging from 1.5mm to 9.5mm (0.060 to 0.375 inches). These rely on shuttle or rotary thermoformers with sheet-fed mechanisms. They produce low-to-medium volume industrial parts, appliance liners, and heavy-duty material handling trays. Heavy-gauge machines commonly process high-heat resistant ABS, HDPE, and PP, requiring longer heating and cooling cycles.
Specification | Thin-Gauge Systems | Heavy-Gauge Systems |
|---|---|---|
Material Thickness | < 3mm (0.125 inches) | 1.5mm - 9.5mm (0.060 - 0.375 inches) |
Feeding Mechanism | Inline Roll-Fed | Sheet-Fed (Shuttle/Rotary) |
Primary Applications | Food packaging, medical blisters | Industrial parts, appliance liners |
Common Materials | PET, PETG, PVC, Polystyrene | ABS, HDPE, Polypropylene (PP) |
Production Volume | High-volume, continuous | Low-to-medium volume, batch |
Flexible film thermoformers optimize speed and cost-efficiency. They easily produce over 10,000 packs per hour depending on the die configuration. These machines suit lightweight packaging, such as fresh meats, cheeses, and pastas, utilizing standard vacuum or MAP technologies to extend shelf life without requiring structural rigidity.
Rigid film machines engineer structural integrity and premium presentation. They support deep draws up to 180mm, ribbed structural designs, and advanced VSP formats. A rigid Thermoforming Machine requires higher clamping forces and more robust cutting stations to punch through dense polymer structures cleanly.
Single-station machines require lower capital expenditure but occupy a larger footprint relative to their output. They operate with slower cycle times because heating, forming, and trimming occur sequentially in the same physical space. They suit consistent, single-product runs where changeovers happen rarely.

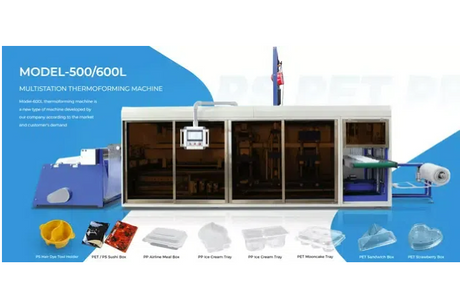

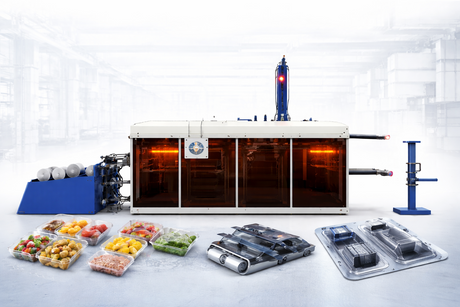

Multi-station systems feature 2 to 4 distinct stations. They utilize a modular design that executes heating, forming, and trimming simultaneously on different segments of the web. This parallel processing significantly increases throughput. They fit small-to-medium batches requiring flexible production flows and frequent tool changes.
Standard vacuum packaging removes ambient air to extend shelf life. It serves as the baseline standard for durable goods, processed meats, and hardware. MAP injects specific gas mixtures, like nitrogen and carbon dioxide, to prevent crushing and preserve color and freshness. MAP integration requires precision gas mixers, buffer tanks, and inline gas analyzers to ensure the residual oxygen levels remain below specified thresholds.
VSP drapes a highly transparent, flexible film tightly over the product. It seals the top film to the entire exposed surface of the bottom tray, acting like a second skin. Advanced sustainable formats, such as LeafSkin™ or Darfresh®, utilize paperboard bases instead of plastic trays. This innovation reduces plastic use by up to 80% while maintaining excellent barrier properties.
Plug-assist forming uses a mechanical plunger, often made of syntactic foam, to pre-stretch the heated film before vacuum application. This technique pushes material into the corners of the mold, ensuring uniform wall thickness and preventing webbing in deep-draw containers. Pressure forming combines vacuum with positive air pressure (up to 100 psi) to force the sheet against the mold cavity, achieving superior detail, sharp radii, and textured finishes.
Twin-sheet forming heats and forms two separate sheets simultaneously. The machine presses them together while the plastic remains pliable to create hollow, double-walled structures. When evaluating a Thermoforming Machine, operators must assess the draw ratio, which determines maximum depth and surface area coverage, and the clamping force, which dictates compatible material density.
Food-grade thermoformers require strict sanitary design principles. Equipment must feature sloped stainless-steel surfaces (304 or 316L grade) to prevent water pooling and bacterial growth. Stand-offs must separate components to allow thorough cleaning access. Furthermore, IP67 or IP69k rated electronics, sensors, and servo motors are necessary to withstand daily high-pressure, high-temperature caustic washdown procedures without electrical failure.

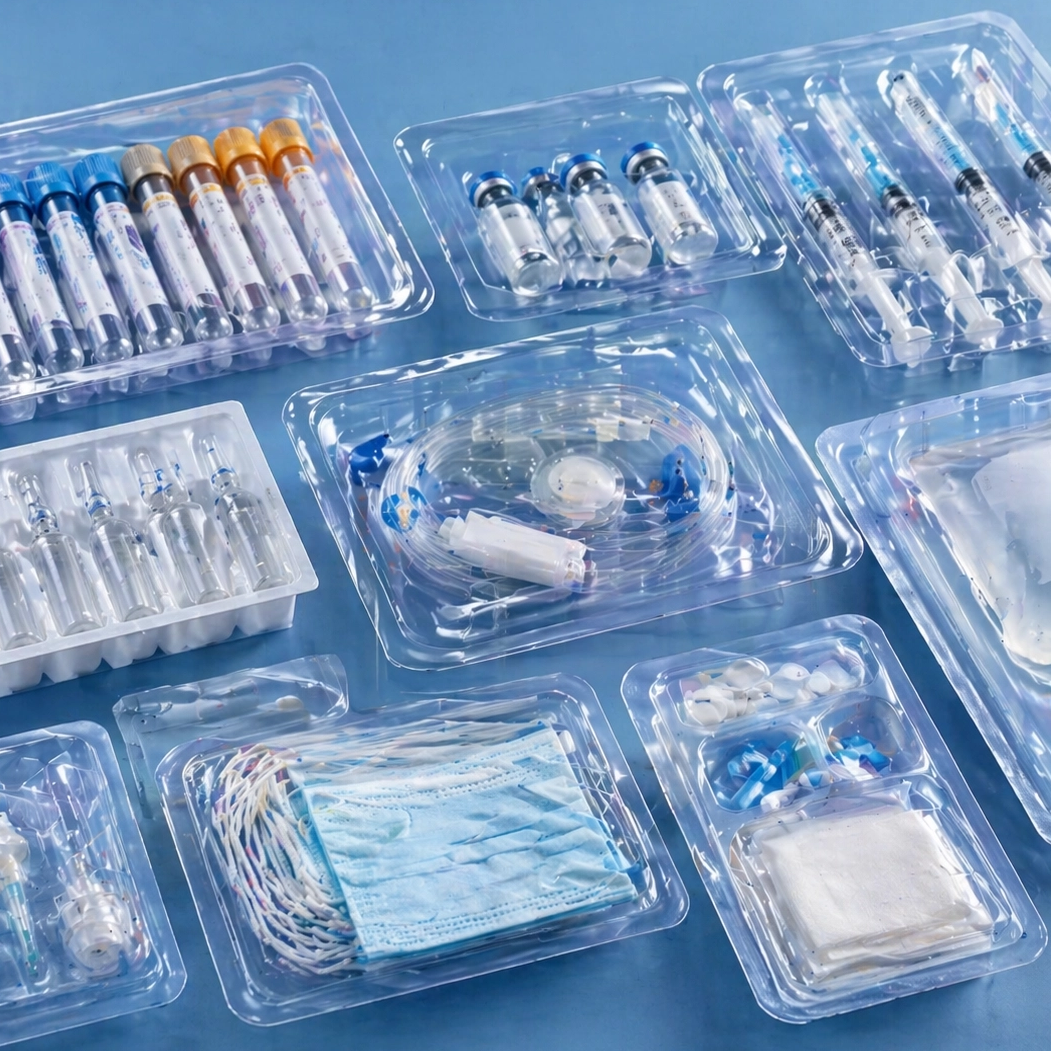

Medical device packaging demands rigorous particulate control to meet ISO Class 7 or 8 cleanroom standards. This mandates zero-dust longitudinal cutting systems. These systems use rotary crush cutting or specialized shear cutting rather than traditional abrasive blades to maintain cleanroom integrity. Precision components, such as anodized aluminum lifts, stainless steel construction, and lubrication-free IGUS bushings, prevent airborne contamination from grease or metal shavings.
Validation and traceability represent non-negotiable requirements for medical manufacturers. Equipment software must support FMEA (Failure Mode and Effects Analysis) and IOV (Installation and Operational Verification) protocols. Vendors must provide Instrument Calibration Certificates for all temperature and pressure sensors. The PLC must maintain CFR 21 Part 11 compliant user-access logs, recording every parameter change with a time-stamped electronic signature.
CNC machined aluminum molds remain the industry standard for high-volume, continuous production runs. Aluminum offers superior thermal conductivity, allowing for the integration of complex water-cooling channels that rapidly dissipate heat and shorten cycle times. However, machining these molds requires significant lead times and high upfront costs.
3D printed resin molds (SLA) provide an agile alternative for prototyping and small batch production. They allow for 24-hour turnaround times and support complex geometries that are difficult to machine. Engineers can easily integrate micro-air vents directly into the CAD model for optimized vacuum draw. While resin molds lack the thermal conductivity of aluminum, they drastically reduce the cost of entry for new product launches.
Facility managers must evaluate equipment based on tool-less changeover capabilities. Legacy machines require wrenches, hoists, and hours of downtime to swap heavy die sets. Modern systems feature slide-out die sets on precision rails, automated film splicing stations, and recipe-driven servo adjustments. Operators select a pre-programmed recipe on the HMI, and the machine automatically adjusts heating temperatures, index lengths, and forming pressures. These features reduce changeover times to under 30 minutes, boosting Overall Equipment Effectiveness (OEE) in high-mix environments.
Procurement teams must weigh initial CapEx against long-term reliability. Tier 1 global leaders, such as MULTIVAC, ULMA, and ILLIG, require high CapEx, often ranging from $200,000 to over $400,000 for inline roll-fed systems. They offer unmatched reliability, global field service support, and advanced proprietary technologies. Tier 2 regional brands, such as Hualian or UTIEN, offer lower CapEx—often one-third the price of Tier 1. They utilize standard premium components like Busch vacuum pumps, SMC pneumatics, and Siemens PLCs, providing excellent cost-to-performance ratios for mid-sized operations.
Vendor Tier | Estimated CapEx | Key Advantages | Target User |
|---|---|---|---|
Tier 1 (Global Leaders) | $200k - $400k+ | Unmatched reliability, global support, proprietary tech | Enterprise, 24/7 continuous production |
Tier 2 (Regional/High-ROI) | $70k - $150k | Standard premium components, high ROI, lower entry cost | Mid-market, high-mix/low-volume facilities |
Energy efficiency directly impacts OpEx. Independent heating zones and insulated ceramic heaters reduce power consumption by directing heat only where needed. Furthermore, advanced machines utilize edge-trim reduction technologies. By narrowing the required clamping edge and supporting thinner gauge compatibility, these systems cut plastic waste by up to 40%. This improves the product's Life Cycle Assessment (LCA) and lowers raw material expenditures.
Buying a used Thermoforming Machine presents a viable cost-saving strategy, with prices ranging from $25,000 for single-station shuttles to $150,000 for roll-fed systems. However, rigorous inspection prevents costly retrofits. Buyers must verify heating bank temperature uniformity using thermal imaging. They must test vacuum pump capacity and check for system leakage. Inspectors should look for wear or warping on clamping frames, verify the alignment of forming stations, and flush mold cooling circuits to check for severe corrosion or calcification.
The optimal equipment choice aligns precisely with material gauge specifications, batch variability, and strict industry compliance requirements. Facilities must define their film type, draw depth, and throughput needs before evaluating vendor tiers. Prioritizing tooling changeover speeds and energy efficiency ensures long-term profitability and operational agility.
To execute a successful equipment acquisition, follow these steps:
Audit current scrap rates and energy consumption to establish a baseline for ROI calculations.
Request physical sample runs using specific film structures from shortlisted vendors to verify seal integrity and draw uniformity.
Require vendors to provide a comprehensive TCO breakdown, including preventative maintenance schedules and spare parts pricing.
Verify facility utility capacities, including compressed air CFM, electrical load, and chilled water availability, prior to finalizing the purchase order.
A: A thermoforming machine integrates forming, filling, and sealing into one continuous automated process using rollstock film. A standard vacuum packaging machine only removes air and seals pre-made pouches, requiring manual loading and separate packaging materials.
A: Choose thin-gauge (inline roll-fed) for materials under 3mm, ideal for high-volume food or medical packaging. Choose heavy-gauge (shuttle/rotary) for materials over 1.5mm, suited for durable industrial parts or appliance liners.
A: Standard rigid film thermoforming machines can typically achieve draw depths up to 180mm. However, achieving this requires specific techniques like plug-assist forming to ensure uniform wall thickness.
A: Yes, modern advanced thermoformers can process PCR plastics and utilize specialized formats like LeafSkin™ or Darfresh®, which use paperboard bases to reduce plastic consumption by up to 80%.
A: Plug-assist forming uses a mechanical plunger to pre-stretch the heated film before vacuum is applied. It is necessary for deep-draw containers to prevent webbing and ensure uniform material distribution.
A: With tool-less mechanisms, slide-out die sets, and recipe-driven servo adjustments, a modern multi-station machine can complete a mold changeover in under 30 minutes.
A: Medical-grade machines require zero-dust longitudinal cutting systems, anodized aluminum and stainless steel construction, lubrication-free bushings, and software compliant with FMEA and CFR 21 Part 11 traceability standards.
