Medical packaging requires more than a formed plastic container. Trays, device packs and protective packaging must maintain consistent dimensions, clean edges and reliable product protection throughout production, handling and transportation. Choosing the right thermoforming machine for medical packaging is therefore essential for manufacturers that need repeatable quality and efficient output.
A suitable machine should match the packaging design, sheet material, forming depth, mold structure and production volume. Depending on the product, manufacturers may use vacuum forming, pressure forming or a multi-station thermoforming system to produce medical trays, instrument trays, device packaging and blister packs.
This guide explains the main requirements for medical packaging thermoforming, compares common package types and materials, and outlines the key specifications to review before selecting equipment.
Medical packaging is often designed around a specific instrument, component or healthcare product. Even a small dimensional variation can affect product positioning, lid sealing, stacking, labeling or compatibility with a downstream packaging process.
A reliable medical packaging thermoforming machine should provide stable control over several stages of production, including sheet heating, forming, cooling, trimming and stacking. Consistent temperature distribution is especially important because uneven heating can cause differences in wall thickness, deformation or incomplete forming.
The cavity of a medical tray or device pack must correspond closely to the packaged product. Accurate forming helps prevent excessive movement inside the package and supports a consistent fit from one production cycle to the next.
For commercial production, the machine should produce similar parts over long runs. Repeatability depends on temperature control, forming pressure, vacuum stability, mold design, material consistency and machine structure.
Medical trays and device packaging may require smooth surfaces, clear edges and clean trimming. Rough edges or incomplete cuts can create handling problems and may damage the package or the product inside it.
A high-quality medical device packaging machine should therefore be evaluated as a complete production system rather than by forming speed alone.
The terms used for medical packaging can describe different package structures and applications. Understanding these differences helps manufacturers choose the appropriate forming method and mold configuration.
Package Type | Typical Purpose | Main Design Considerations |
|---|---|---|
Medical trays | Hold, protect and organize medical products | Cavity layout, product fit, stacking and edge quality |
Device trays | Secure medical devices or components | Dimensional accuracy, retention features and product protection |
Instrument trays | Organize surgical or clinical instruments | Deeper cavities, separators, drainage features and handling |
Blister packs | Display or protect individual products | Small cavities, surface quality, sealing area and cutting accuracy |
Medical trays are commonly used to organize products during storage, transport or packaging. Their design may include multiple cavities, locating features, separators or reinforced edges.
The mold should be designed around the product geometry and the required clearance. If the cavity is too shallow, the product may move during transportation. If it is too deep or narrow, loading and unloading may become difficult.
Device trays are formed around particular medical devices or components. They may require precise locating points, retaining features or custom cavity shapes.
For these applications, pressure forming can be useful when the package contains fine details or requires sharper definition. However, the final selection should depend on the product geometry, sheet material and required production volume.
Instrument trays may include several cavities or compartments for organizing medical instruments. Their design can be more complex than a simple single-cavity tray.
Manufacturers should consider mold ventilation, forming depth, wall thickness distribution and trimming access. Large or deep instrument trays may also require careful control of material stretching during forming.
Blister packs generally use a formed plastic cavity combined with a backing material or sealing layer. They are often used for small medical products, components or accessories.
The forming process must create consistent cavities and a clean sealing area. The thermoforming unit may form the plastic part, while additional downstream equipment may be required for product loading, sealing, inspection and final cutting.
Material selection affects forming performance, transparency, stiffness, impact resistance, chemical compatibility and final package appearance. Common materials considered for medical packaging include PET, PP, PVC and PS.
PET is often selected when transparency, stiffness and a clear presentation are important. It can be suitable for certain trays, display-oriented packs and protective packaging applications.
When using PET, the machine must provide suitable heating control because the sheet needs to reach a consistent forming condition before entering the mold.
PP offers good chemical resistance and is used in a variety of packaging applications. It may be considered for trays and containers where flexibility, durability or specific material performance is required.
PP processing conditions can vary according to sheet composition, thickness and product design. Manufacturers should confirm the required heating profile and forming parameters before finalizing the machine configuration.
PVC can provide good clarity and forming performance for selected packaging applications. It may be used for certain blister-style packages and protective plastic components.
Because material formulations and packaging requirements vary, the supplier should review the exact sheet specification rather than relying only on the material name.
PS is known for its rigidity and ease of forming in many packaging applications. It may be used for trays, containers and other formed packaging products where stiffness and cost efficiency are important.
The appropriate material depends on the final product, packaging requirements, regulatory expectations and customer specifications. A machine supplier should confirm material compatibility through technical review and, when necessary, forming trials.
The choice between vacuum forming and pressure forming depends mainly on product geometry, surface detail, dimensional requirements and production objectives.
Vacuum forming uses negative pressure to draw a heated plastic sheet against a mold. It can be suitable for products with relatively simple shapes, moderate detail and larger forming areas.
Advantages may include:
Suitable for many tray and container designs
Relatively simple forming process
Flexible mold options
Practical for a wide range of plastic sheets
Suitable for selected medium-volume applications
A Pressure And Vacuum Forming Machine can be considered when a manufacturer needs flexibility across different forming requirements.
Pressure forming uses positive air pressure together with vacuum to press the heated sheet more closely against the mold surface. This can help produce sharper details, more defined edges and improved surface reproduction.
Pressure forming may be suitable for:
Medical device trays with detailed cavities
Packages with sharper edges or textured surfaces
Components requiring more defined features
Products that need improved dimensional consistency
Applications where appearance and detail are important
MINGDU’s Pressure Forming Machine product range is designed for high-precision plastic forming applications, including packaging and medical-related products.
Before choosing a forming method, review:
Product dimensions and cavity geometry
Required forming depth
Sheet material and thickness
Surface details and edge definition
Required production rate
Mold cost and changeover requirements
Trimming, stacking and downstream packaging processes
For a simple tray, vacuum forming may be sufficient. For a detailed medical device tray, pressure forming may provide better definition. The correct decision should be based on actual product samples, drawings and production targets.
When evaluating a thermoforming machine for medical packaging, manufacturers should review more than the advertised cycle speed.
The forming area must accommodate the product layout, mold border and required spacing between cavities. A larger forming area may support more cavities per cycle, but it also requires suitable heating, vacuum and mold support.
Forming depth affects material distribution and mold design. Deep cavities may require special attention to sheet heating, plug assistance, pre-stretching and cooling.
The machine should process the sheet thickness required by the final package. Thin sheets may require precise heating control, while thicker sheets may need greater forming force and longer heating or cooling times.
The mold determines much of the final product geometry. It should include suitable ventilation, cooling channels, trimming references and locating features for the intended package.
Production speed should be considered together with cavity count, cycle time, material thickness and product quality. A high nominal speed does not automatically mean higher finished-product output if the process generates excessive scrap or requires frequent adjustments.
For automated production, in-line cutting and robotic stacking can reduce manual handling. These functions may improve production consistency and simplify the transfer of finished trays to inspection or packing operations.

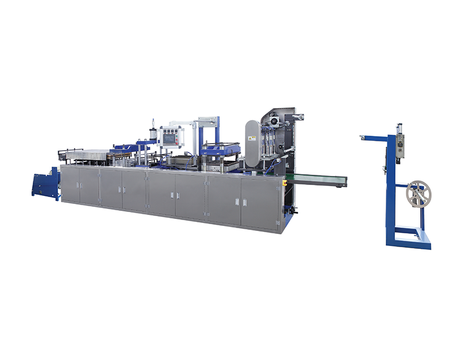

The MINGDU MODEL-450/600 product page lists a 450 × 600 mm forming area, up to 80 mm forming depth, 0.1–1.0 mm sheet thickness and a production rate of 10–30 dies per minute. Actual suitability should be confirmed against the customer’s product drawing, material and mold design. View the custom automatic thermoforming machine for medical use.
A multi-station system separates several production functions into coordinated working stations. Depending on the machine configuration, the process may include:
Sheet feeding
Sheet heating
Pre-stretching or plug assistance
Vacuum or pressure forming
Cooling
In-line cutting or trimming
Product transfer
Robotic stacking
A Multistation Thermoforming Machine can help integrate these steps into a continuous production workflow.
For medical packaging, a multi-station design may be useful when the manufacturer needs stable output, reduced manual handling and consistent processing across long production runs. It can also support different mold configurations when multiple tray or package designs are produced on the same production line.
However, automation should be matched to actual production needs. A small-volume project may not require every available station, while a high-volume packaging operation may benefit from automated feeding, cutting and stacking.
Before purchasing equipment, prepare detailed information about the product and production process. Important questions include:
Which sheet materials can the machine process?
What sheet thickness range is supported?
Can the machine run PET, PP, PVC or PS?
What is the maximum forming depth?
Can the machine produce the required cavity shape?
What mold size is recommended?
How will the mold be cooled and vented?
Is pressure forming required, or is vacuum forming sufficient?
How long does mold changeover take?
Can the machine support multiple product designs?
What is the expected finished output per hour?
Does the machine include automatic sheet feeding?
Are cutting and stacking integrated?
How is cycle time calculated?
How are rejected parts and production scrap handled?
What are the machine dimensions and power requirements?
What air pressure and utility connections are required?
What training is included?
What spare parts should be prepared?
How are remote support and after-sales service provided?
The phrase “sterile medical packaging machine” may refer to a complete packaging process that includes forming, loading, sealing, inspection and controlled production conditions. A thermoforming machine creates the formed package, but it does not independently guarantee sterility. Any sterile packaging project should be reviewed together with the customer’s validation, sealing and production requirements.
MINGDU thermoforming equipment can be considered for a range of plastic packaging applications, depending on the product design, sheet material, mold and machine configuration.
Potential applications include:
Medical device trays
Instrument trays
Protective trays for medical components
Blister-style medical packaging
Cosmetic and healthcare product packaging
Small plastic housings and formed inserts
Multi-cavity packaging trays
Customized protective packaging
The most suitable machine depends on the required forming method and production target. Pressure forming may be appropriate for detailed products, while pressure and vacuum systems can provide greater process flexibility. Multi-station machines may be considered for automated production with forming, cutting and stacking in one workflow.
MINGDU’s custom automatic plastic thermoforming machine for medical use is listed for PLA, PET, PVC and PS sheet materials and can be configured according to specific production requirements.
A thermoforming machine for medical packaging heats plastic sheet and forms it over or into a mold to create trays, device packs, instrument trays and other protective packaging components.
Not always. Pressure forming may be preferable for trays with fine details, sharp edges or more demanding dimensional requirements. Vacuum forming can be suitable for simpler tray designs. The correct choice depends on the product and mold.
PET, PP, PVC and PS are commonly considered, although the final material depends on the product, packaging requirements and customer specifications. Material compatibility should be confirmed with the machine supplier.
It may be possible when the machine supports mold replacement and the products fall within its forming area, depth and material range. The supplier should review each product design before confirming compatibility.
A thermoforming machine forms the plastic package. Sterilization, sealing, loading and validation are separate processes unless they are specifically integrated into a complete packaging line.
Selecting a thermoforming machine for medical packaging requires a complete review of product geometry, material, sheet thickness, forming depth, mold design, production speed and automation requirements.
Medical trays, device trays, instrument trays and blister packs may require different forming approaches. Vacuum forming can provide a practical solution for many simpler designs, while pressure forming may be more suitable for detailed cavities and sharper features. A multi-station system can integrate heating, forming, cutting and stacking for automated production.
If you are planning a new medical packaging project, prepare the product drawing, sample, material information, sheet thickness and required output before contacting a supplier.
