Medical device packaging faces intense dual pressures. Manufacturers demand absolute zero-tolerance for contamination. They also require scalable, cost-predictable production lines. You need a reliable bridge between rigid regulatory compliance and commercial viability. Proper processing maintains the sterile barrier flawlessly. It guarantees high-volume output and tooling efficiency simultaneously.
This guide provides a robust framework for evaluating your thermoformed packaging options. You will learn how to mitigate implementation risks effectively. We will help you select a manufacturing partner capable of meeting strict standards. You can achieve FDA and ISO compliance without sacrificing production speed. Keep reading to discover how optimized packaging designs protect both patients and your bottom line.
Material-Sterilization Alignment: Selection of polymers (e.g., PETG, APET) must be dictated by the chosen sterilization method (EtO, Gamma, E-beam, or Autoclave) to prevent degradation or barrier failure.
Compliance is Non-Negotiable: Viable partners must operate certified ISO Class 7 or 8 cleanrooms and hold ISO 13485 certification to ensure traceability and minimize bio-burden.
Cost vs. Flexibility: Thermoforming offers significantly lower tooling costs and faster lead times compared to injection molding, making it ideal for both rapid prototyping and automated, high-volume runs.
Design for Manufacturability (DFM): Upfront optimization of complex geometries prevents material thinning, reduces scrap, and ensures compatibility with automated peeling and sealing lines (e.g., Tyvek® lidding).
Device manufacturers constantly balance strict regulatory compliance against speed. You must accelerate time-to-market while controlling unit costs tightly. This business problem requires a manufacturing process capable of rapid iteration. medical packaging thermoforming delivers exactly this balance. It outpaces traditional methods like injection molding across several critical dimensions.
Tooling economics dictate project viability for many medical devices. Aluminum thermoforming molds cost significantly less than steel injection molds. You typically see a 60% to 80% reduction in upfront tooling expenditure. This capital efficiency frees up resources for clinical trials and regulatory filings.
Speed to market represents another massive advantage. You can transition from a prototype to full production validation rapidly. Engineers often use 3D-printed or ren-shape molds for initial prototyping. This allows physical testing within days. Once validated, manufacturers cut multi-cavity aluminum production molds in weeks. Injection molding often requires months for tooling alone.
Medical devices require robust physical protection during global transit. You must prevent punctures and abrasions to maintain the sterile barrier. Thermoforming achieves highly precise cavity designs for complex medical devices. Engineers design custom undercuts and support ribs for surgical kits and implants. These features lock heavy or sharp devices securely in place.
Common Mistake: Relying on standard off-the-shelf trays for sharp instruments. Always design custom cavities tailored to the exact center of gravity of your device. This prevents movement and catastrophic sterile barrier breaches.
Manufacturing Process Comparison
Evaluation Metric | Thermoforming | Injection Molding |
|---|---|---|
Upfront Tooling Cost | Low (Aluminum/Composite) | High (Hardened Steel) |
Lead Time to Prototype | 1-3 Weeks | 6-12 Weeks |
Design Flexibility | High (Easy modifications) | Low (Expensive rework) |
Wall Thickness Variations | Requires precise DFM control | Highly uniform |
Different medical products demand entirely different packaging architectures. We categorize these solutions based on their end-use environment and sterilization needs. Understanding these categories helps you specify the right geometry and material.
Sterile trays form the backbone of operating room packaging. We see these primarily used for orthopedic implants, cardiovascular devices, and surgical instruments. They must survive terminal sterilization and maintain hermetic seals for years.
Key features include custom snap-fits and deep-draw cavities. Undercuts hold heavy titanium joints securely during rough shipping. The tray must also present the instrument intuitively to the surgical nurse. Aseptic presentation is a critical design requirement here.
Retail pharmacies and clinical diagnostic labs rely heavily on blister packs. You will use these for OTC pharmaceuticals, diagnostic test kits, and non-sterile disposables. They prioritize consumer safety and supply chain efficiency.
Tamper-evident sealing remains a non-negotiable feature for these formats. They offer high visibility, letting users inspect the product before opening. Furthermore, blisters offer excellent high-volume automation compatibility. Automated lines can fill and seal millions of units weekly.
Not all medical packaging goes to the end-user. Work-In-Progress (WIP) trays handle component transit between manufacturing facilities. They also serve internal automated assembly lines effectively.
WIP trays require precise stackability for storage efficiency. Engineers design them for robotic pick-and-place indexing. If the trays house sensitive medical electronics, they must include ESD (Electrostatic Discharge) protection. This prevents static from destroying expensive circuit boards during assembly.
Selecting the wrong polymer guarantees packaging failure. You must evaluate materials based on features-to-outcomes. Match the substrate properties to both the physical device weight and the terminal sterilization process.
We rely on four primary material families in medical packaging. Each responds differently to radiation, gas, and heat.
PETG (Polyethylene Terephthalate Glycol): This is the industry standard for rigid trays. It offers high optical clarity and excellent impact resistance. PETG remains fully compatible with EtO (Ethylene Oxide) and Gamma sterilization.
APET (Amorphous Polyethylene Terephthalate): APET serves as a cost-effective alternative to PETG. You can use it for certain non-sterile products or specific sterile applications. It processes easily but has slightly different impact characteristics.
HIPS (High-Impact Polystyrene): HIPS provides a highly rigid, opaque substrate. We recommend it for heavier devices requiring extreme structural support. It forms easily but shows sensitivity to certain sterilization methods.
Polycarbonate & Polypropylene: These materials offer exceptional heat resistance. You must specify them if your device requires Autoclave or steam sterilization. Standard PETG will warp and melt under Autoclave temperatures.
The thermoformed tray only represents half of the sterile barrier. The formed flange must provide a consistent, defect-free surface. This ensures hermetic sealing with Tyvek®, medical-grade papers, or foil substrates.

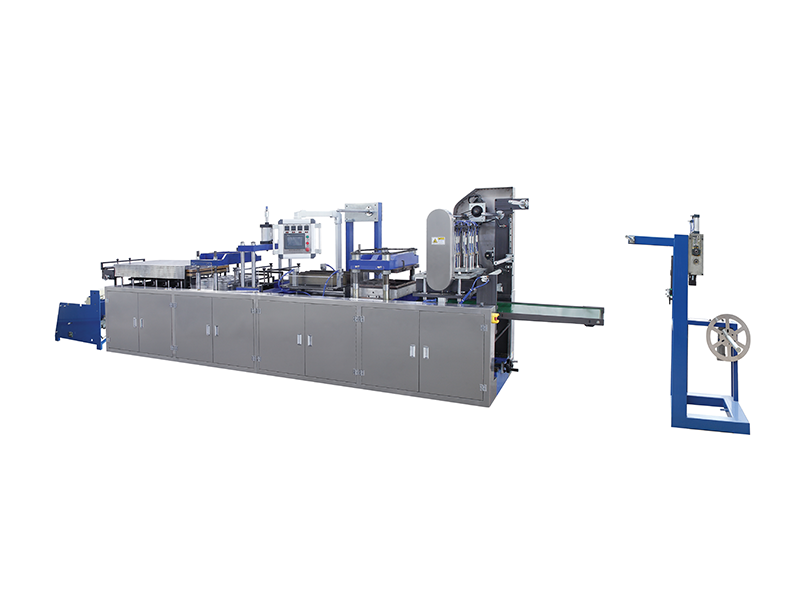

Any warp, dip, or thinning on the flange compromises the seal. An incomplete seal allows microbial ingress, triggering immediate product recalls. Always specify precise draft angles and flange widths during the design phase. A modern thin gauge thermoforming machine ensures flat, stress-free flanges for perfect Tyvek adhesion.
Medical manufacturing operates under intense regulatory scrutiny. You cannot separate the packaging process from the overall device compliance strategy. Your packaging partner must act as an extension of your own quality system.
Manufacturers must align packaging processes with FDA 21 CFR Part 820 requirements. This federal regulation dictates strict quality system rules for medical devices. In Europe, the Medical Device Regulation (MDR) imposes similarly stringent traceability standards. Proper packaging design and validation satisfy these legal mandates.
Airborne particulates pose a massive risk to sterile medical devices. You must minimize airborne particulate counts prior to sealing the tray. ISO Class 7 and Class 8 cleanroom environments control this bio-burden effectively.
ISO Class 8: Limits particles to 3,520,000 per cubic meter (0.5µm size). Often used for secondary packaging or less critical components.
ISO Class 7: Limits particles to 352,000 per cubic meter. This stricter environment handles direct sterile-barrier device packaging safely.
Your contract manufacturer must hold an active ISO 13485 certification. This proves they maintain a comprehensive quality management system specific to medical devices. Do not partner with facilities lacking this credential.
Advanced facilities deploy in-line vision inspection systems. Cameras scan every single tray for flange defects or particulate contamination. Furthermore, they maintain rigid lot traceability and raw material certification tracking. If a polymer batch fails, you can trace exactly which trays utilized that material.
Transitioning from CAD drawings to physical production introduces significant risk. You must anticipate mechanical failures and automated line jams before cutting steel or aluminum.
Material thinning represents the most dangerous thermoforming defect. When pulling plastic into a deep-draw cavity, the corners often stretch too thin. This creates severe puncture vulnerabilities during transit.
Mitigation Strategy: Utilize advanced flow-simulation software before finalizing the mold. Engineers must employ precise plug-assist thermoforming techniques. The plug pushes the heated plastic into the cavity mechanically. This ensures uniform wall thickness even in deep, complex corners.
High-volume medical products rely on automated filling and sealing lines. If your trays stick together in a stack, the entire automation line stops. Inconsistent tray denesting causes massive downtime and ruins production schedules.
Mitigation Strategy: Engineer precise denesting lugs into the mold design. Add anti-jamming features and distinct draft angles. These elements ensure robotic arms can separate trays effortlessly at high speeds.
Medical packaging requires thorough validation before commercial launch. You must complete Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ).
Skipping steps causes validation failures, delaying your product launch by months. Work closely with your packaging partner to draft PQ protocols early. Test the sealed packages through simulated transit, drop testing, and accelerated aging chambers.
Choosing the right manufacturing partner determines your packaging success. Treat the vetting process as rigorously as you would treat a surgical component supplier. Use the following logic to assess potential partners.
Do they offer comprehensive end-to-end services? Look for partners providing in-house extrusion, in-house tooling, and cleanroom forming. Facilities offering packaging validation testing in-house save you immense time. Consolidating these services reduces supply chain complexity and finger-pointing during failures.
Your production needs will evolve rapidly. Can the supplier support pilot runs of just hundreds of units? More importantly, can they scale up to fully automated continuous production hitting millions of units? Ask to see their equipment list and facility expansion plans.
Never take a supplier's marketing claims at face value. Request historical data on defect rates and OTD (On-Time Delivery) metrics. Ask for examples of passing recent ISO or FDA audits. A reliable partner will share their audit scores willingly.
Once you identify a promising partner, initiate an NDA (Non-Disclosure Agreement) immediately. Share your device CAD models for a preliminary DFM review. Request a detailed tooling cost estimate based on their initial engineering analysis. This early collaboration highlights their technical competence.
Thermoforming remains the most efficient, scalable method for medical packaging available today. However, you must align material science, regulatory compliance, and tooling design perfectly to achieve success.
Remember these critical takeaways:
Match your polymer choice strictly to your terminal sterilization method.
Never compromise on ISO Class cleanroom standards or ISO 13485 certifications.
Prioritize early DFM analysis to prevent wall thinning and denesting failures.
Use plug-assist technology for deep-draw surgical trays.
The cost of packaging failure far outweighs the cost of partnering with a certified, experienced manufacturer. Recalls and compromised sterility destroy brand reputations permanently. Do not risk patient safety on unverified vendors.
Take action today to secure your supply chain. Schedule a comprehensive packaging audit with a certified thermoforming partner. Submit a 3D model of your device for an expert DFM analysis. Contact an engineering team immediately for custom material recommendations tailored to your specific product requirements.
A: Typical lead times range from 1 to 3 weeks for initial prototypes using 3D printed or composite materials. For fully validated, multi-cavity aluminum production molds, expect 4 to 8 weeks depending on geometry complexity.
A: Yes, provided you select compatible materials like PETG. Certain plastics, such as standard polypropylene or specific polystyrenes, degrade, become brittle, or discolor under Gamma exposure. Always verify material data sheets before specifying Gamma.
A: ISO Class 7 strictly limits particles to 352,000 per cubic meter and requires more air changes per hour. Class 8 allows up to 3,520,000 particles. Class 7 is highly preferred for direct sterile-barrier device packaging.
A: You must address precise cavity design and match material gauge to device weight. Utilize plug-assist forming to prevent corner thinning during manufacturing. Finally, design custom undercuts and structural ribs to immobilize the device completely.
