Selecting the wrong plastic sheet for a Vacuum Forming project does not just result in cosmetic flaws. It leads directly to webbing, structural failure, and wasted tooling investments. Engineers and procurement teams must constantly balance material costs, processing temperatures, and strict compliance requirements like FDA or Prop 65 standards. They must also ensure the chosen plastic can achieve the necessary draw depth without excessive wall thinning during production. Material selection dictates the entire manufacturing workflow, from the initial heating cycle to the final trimming process. This guide provides a definitive, data-backed breakdown of materials used in the industry. It evaluates their physical properties, ideal use cases, and how they interact with different mold types. By understanding these variables, manufacturers can drive predictable outcomes, reduce cycle times, and optimize their total cost of ownership across both low-volume prototyping and high-volume production runs.
Prototyping vs. Production: High Impact Polystyrene (HIPS) is the industry standard for low-cost prototyping, while ABS and Polycarbonate (PC) dominate durable, end-use industrial applications.
Compliance & Clarity: PETG is the optimal choice for transparent, FDA-compliant, or medical-grade components, offering superior ease of forming compared to Acrylic.
Tooling Synergy: Material selection cannot happen in a vacuum; achieving uniform wall thickness requires pairing the right plastic with the correct mold type (male vs. female) and incorporating a minimum 3° draft angle.
Volume Sweet Spot: Vacuum forming offers a lower Total Cost of Ownership (TCO) than injection molding primarily in the 250 to 3,000 parts-per-year volume range.
Understanding material behavior requires a clear distinction between manufacturing processes. Thermoforming is the broad category of heating plastic sheets to a pliable state to form and trim them. Vacuum Forming is the simplest subset of thermoforming. It utilizes a single-sided mold and vacuum pressure to draw the material down. This method is ideal for parts requiring precise dimensions on only one side. Pressure forming utilizes two molds and positive pressure to squeeze the heated plastic. It is ideal for deep draws and dual-sided precision, often rivaling injection molding in terms of surface detail.
Every material goes through a standardized workflow. The physical properties of the plastic dictate the parameters of each step. Engineers must calibrate machinery specifically for the polymer being processed.
Clamp: Securing the sheet firmly in the machine frame. The clamping force must exceed the shrinkage force of the heated plastic.
Heat: Softening the plastic using ceramic or quartz heaters. Heating must be uniform to prevent localized thinning.
Vacuum: Draping the sheet over the mold and applying suction. The vacuum pump must evacuate air rapidly to freeze the plastic against the mold.
Cool: Using fans or cooling mist to solidify the plastic. The cooling rate affects the crystalline structure of certain polymers.
Release: Demolding the part using air ejection. Draft angles are critical here to prevent part distortion.
Trim: Removing excess material from the finished component using CNC routers or die presses.
Material thickness heavily influences heating times and mold design. Typical gauge ranges fall between 0.010 inches (0.25 mm) and 0.080 inches (2 mm) for standard applications. Desktop or prosumer machines typically max out at 1.00 mm to 1.5 mm. Thicker sheets require exponentially higher heating temperatures, longer cycle times, and industrial-grade vacuum pressure to form correctly. When processing sheets thicker than 3 mm, manufacturers often employ twin-heater systems to ensure the core of the plastic reaches the forming temperature without degrading the surface.

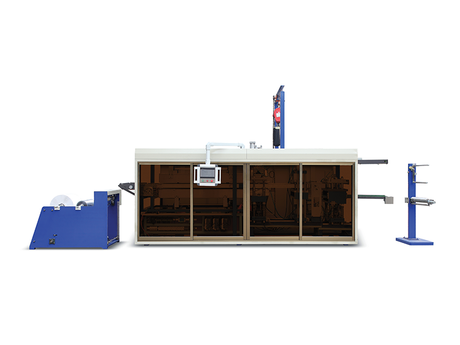

Plastics are supplied in two primary formats. Single-sheet panels are used for low-volume or thick-gauge production. These are often purchased in 4x8 foot sheets from industrial suppliers. Continuous reel feed formats are utilized for high-volume, thin-gauge packaging production, allowing for automated, continuous machine operation. Reel-fed systems require materials with high melt strength to prevent sagging between the heating station and the forming station.
Material | Density (g/cm³) | Typical Thickness | Cost Profile | Best For |
|---|---|---|---|---|
HIPS | 1.06 | 0.25–6mm | Low | Prototypes, disposable packaging |
ABS | 1.08 | 1–6mm | Moderate | Automotive parts, durable goods |
PETG | 1.27 | 0.8–6mm | High | Medical devices, clear shields |
HDPE | 0.96 | 1–5mm | Low | Industrial tanks, RV parts |
Polycarbonate | ~1.20 | 1–6mm | Highest | Aerospace, riot shields |
HIPS features a density of 1.06 g/cm³ and is typically processed in thicknesses ranging from 0.25 mm to 6 mm. It offers an extremely low cost, is highly formable, and provides decent impact resistance. Ideal applications include disposable packaging, point-of-purchase displays, and rapid prototyping. Because it absorbs very little moisture, HIPS rarely requires pre-drying. It forms at relatively low temperatures, making it highly energy-efficient for large production runs. However, it lacks UV resistance and will yellow if exposed to direct sunlight for extended periods.
ABS has a density of 1.08 g/cm³ and a standard thickness of 1 mm to 6 mm. It is highly rigid, offers excellent impact resistance, and boasts high weatherability at a moderate cost. Manufacturers rely on ABS for automotive parts like bumpers and floor mats, as well as durable consumer goods and electrical enclosures. ABS can be co-extruded with a UV-resistant cap layer (like acrylic) to improve its outdoor lifespan. It requires higher forming temperatures than HIPS and exhibits higher shrinkage rates, which must be accounted for in the mold design phase.
With a density of 1.27 g/cm³, PETG is processed between 0.8 mm and 6 mm. It provides high clarity, is FDA-approved, and resists acids and oils. It also acts as an excellent oxygen barrier and forms easily without pre-drying. Despite its higher cost, it is perfect for medical device components, clear face shields, and food packaging. PETG has a very wide forming window, meaning it remains pliable over a broad temperature range. This characteristic drastically reduces the defect rate during complex forming operations.
HDPE features a density of 0.96 g/cm³ and is used in 1 mm to 5 mm gauges. It is flexible, offers extreme impact resistance, and is very low cost. However, it cannot be easily painted or glued. It is heavily used for RV parts, industrial chemical tanks, and heavy-duty agricultural components. HDPE is a semi-crystalline polymer, which means it shrinks significantly as it cools. Engineers must design molds with oversized dimensions to compensate for this shrinkage, and cooling rates must be strictly controlled to prevent severe warping.
PP has a density of 0.91 g/cm³ and a thickness range of 0.75 mm to 6 mm. It is highly flexible, provides excellent chemical resistance, and is fatigue resistant. Its low cost makes it suitable for chemical storage tanks, reusable food containers, and living hinges. Like HDPE, PP is semi-crystalline and presents challenges with shrinkage and warping. It requires specialized adhesives for bonding. However, its ability to withstand repeated flexing without breaking makes it invaluable for specific mechanical applications.
Polycarbonate is typically formed in 1 mm to 6 mm sheets. It offers unmatched impact resistance, high optical clarity, and is self-extinguishing. It carries the highest material cost and requires high forming temperatures. Ideal applications include riot shields, skylights, and aerospace components. Polycarbonate is highly hygroscopic. It must be dried in an industrial oven for several hours before forming; otherwise, trapped moisture will boil during the heating phase, causing structural bubbles and destroying the optical clarity of the part.
PVC has a density of 1.37 g/cm³ and is used in thin gauges of 0.25 mm to 0.75 mm. It provides excellent clarity in thin formats, is naturally flame retardant, and resists solvents. Its low cost makes it ideal for machine guards, blister packaging, and flame-retardant industrial signage. PVC can emit corrosive gases if overheated, requiring adequate ventilation in the manufacturing facility. It is highly favored in the packaging industry due to its ease of die-cutting and sealing.
Acrylic is processed in 1.5 mm to 6 mm thicknesses. It is hard, brittle, and offers the highest optical transparency available. It is expensive and prone to cracking if not heated uniformly. It is commonly used for bathtubs and premium illuminated signage. Acrylic has a very narrow forming window. If it is too cold, it will shatter under vacuum pressure. If it is too hot, it will blister and tear. Precision temperature control is mandatory when processing PMMA.
Evaluating the total cost of ownership is critical. HIPS offers the lowest initial cost but has a relatively low lifespan, making it perfect for single-use items. Conversely, ABS and Polycarbonate require a higher upfront material investment but offer an almost infinite lifespan in normal use cases. Engineers must align the material lifespan with the product warranty and expected field use. Specifying Polycarbonate for a disposable tray is a massive waste of capital, just as specifying HIPS for an outdoor automotive component guarantees premature failure.
Compliance dictates material selection in many industries. PETG and PP are standard choices for FDA food-safe requirements. Manufacturers must also address California Proposition 65 warnings regarding styrene found in ABS and HIPS, as well as BPA in Polycarbonate. Guiding buyers toward compliant alternatives like PETG can prevent costly legal and distribution hurdles. Medical device manufacturers must ensure their chosen polymers can withstand sterilization processes, such as gamma irradiation or ethylene oxide gas, without degrading.
When transparency is required, manufacturers must weigh ease of processing against optical perfection. PETG forms easily and does not require pre-drying, making it highly efficient. Acrylic offers superior, glass-like clarity but is highly brittle and requires precise temperature control to prevent webbing and cracking. For applications requiring both extreme impact resistance and clarity, such as security glazing, Polycarbonate remains the only viable option despite its difficult processing requirements.
Sourcing strategies vary by production scale. High-volume packaging facilities purchase industrial bulk reel supplies to feed continuous machines. Low-volume manufacturers or prototyping shops typically source 4x8 foot sheets from local plastic distributors. Securing reliable supply chains ensures consistent material behavior across production batches. Variations in resin batches from different suppliers can alter heating times and shrinkage rates, forcing operators to constantly recalibrate their machinery.
Mold design directly affects how material stretches. Male molds are positive shapes where the sheet drapes over the tool. This yields precise internal dimensions but results in thinner side walls as the material stretches down. It often requires a vacuum box. Female molds are negative shapes where the sheet is drawn into the cavity. This yields precise external dimensions and allows for plug assists to push material into corners, maintaining thicker side walls. However, it may leave ridge lines at cooling channels. The choice between male and female molds depends entirely on which surface of the final part requires the highest dimensional accuracy.
The choice of tooling material impacts cycle times and part quality. Clay and modeling materials are strictly for one-off prototypes and must be completely dry to avoid damaging equipment. 3D printed resin molds offer fast 48-hour turnarounds, ideal for agile manufacturing and custom medical devices. Wood is extremely low cost and suitable for hundreds of pulls, but it is vulnerable to moisture warping.
Polymer molds like Acetal or HDPE offer low cost and high chemical resistance but lack internal cooling, leading to slower cycle times. Non-cooled aluminum is cheaper than water-cooled options but carries a risk of plastic warping during the cooling phase. Water-cooled aluminum has the highest cost and longest lead time, but it allows thousands of cycles with zero wear, rapid cooling, and a non-porous surface for high-aesthetic parts. Investing in water-cooled aluminum tooling is mandatory for high-volume production runs to maintain consistent cycle times and prevent heat buildup in the mold.
Tooling Material | Cost | Durability (Cycles) | Cooling Speed | Best Application |
|---|---|---|---|---|
MDF / Wood | Very Low | 10 - 100 | Slow | Initial prototyping |
3D Printed Resin | Low | 50 - 500 | Slow | Custom medical, agile runs |
Cast Aluminum | High | 10,000+ | Fast (if cooled) | Standard production |
Machined Aluminum | Very High | 100,000+ | Very Fast | High-volume, high-precision |
A minimum 3° draft angle is a non-negotiable engineering requirement in Vacuum Forming. Vertical walls create friction as the plastic cools and shrinks around a male mold. Incorporating a draft angle prevents the material from sticking, ensures clean part release, and extends the lifespan of the tooling. For textured molds or deep draws, engineers often increase the draft angle to 5° or 7° to guarantee successful demolding without scuffing the surface of the plastic part.
Hygroscopic materials like Polycarbonate and Acrylic absorb ambient moisture from the air. When heated rapidly, this trapped moisture turns to steam, causing bubbles within the plastic sheet. The standard mitigation is to pre-dry the sheets in an industrial oven below their melting point for extended periods before forming. Drying times can range from 2 to 24 hours depending on the material thickness and ambient humidity levels.
Webbing occurs when excess material folds over itself. This is caused by overheating the plastic, utilizing insufficient draft angles, or placing mold features too close together. Mitigation involves optimizing heating zones to control material sag, increasing the spacing between tall mold features, and verifying that all draft angles exceed 3 degrees. Using a female mold with a plug assist can also drastically reduce webbing by controlling material distribution before the vacuum is applied.
HDPE has a high density and a high melting point, making it notorious for shrinking during the cooling phase. Mitigation requires pre-heating the mold to prevent thermal shock. Operators must also use aggressive clamping techniques and carefully control cooling rates with fans or cooling mist to ensure dimensional stability. Removing the part from the mold before it has fully cooled will result in severe warping as the internal stresses of the polymer release unevenly.
Post-processing is required to remove the clamping flange. Guillotining is best for straight lines and low-precision cuts. Roller cutting utilizes custom dies pressed through a roller system. It is highly efficient for high-volume, thin-gauge packaging where extreme precision is not the primary concern. These methods are fast and require minimal setup time, making them ideal for simple geometric shapes.
Press cutting uses custom steel rule dies and hydraulic punch presses. This method delivers high-precision, repeatable cuts on thin-gauge materials. It is the standard finishing method for blister packs, clamshells, and medical trays. The initial cost of the steel rule die is offset by the extreme speed of the punching process, allowing thousands of parts to be trimmed per hour.
For thick-gauge, industrial parts, 5-axis CNC machining is the standard. It provides precise edge trimming, allows for variable depth cuts, and can machine side-wall features like routing out guide rails or ventilation slots. While slower than press cutting, it offers unmatched accuracy for rigid structural components. CNC trimming requires dedicated fixtures to hold the formed part securely during the machining process, adding to the initial tooling costs.
Material selection dictates the entire production ecosystem, from mold design to cooling times. Choosing the right plastic ensures structural integrity, regulatory compliance, and cost efficiency. To optimize your next project, follow these actionable steps:
Start with HIPS for initial form-and-fit prototypes to validate dimensions cheaply.
Scale to ABS for durable structural parts, or select PETG for transparent and medical applications.
Run a small batch of your chosen material over a 3D-printed or structural foam mold to validate wall thickness and draw ratios.
Verify that all mold designs incorporate a minimum 3° draft angle before cutting expensive aluminum tooling.
Calculate the total cost of ownership by factoring in material drying times and post-processing requirements.
A: High Impact Polystyrene (HIPS) is generally the cheapest material for rigid prototyping and displays. For high-volume, thin-gauge packaging, Polyvinyl Chloride (PVC) and thin Polypropylene (PP) are highly cost-effective options.
A: No. This process is strictly for thermoplastics that become pliable when heated. Carbon fiber and composites require different manufacturing methods, such as vacuum bagging and autoclave curing. Metals require stamping or hydroforming.
A: When plastic stretches over a positive male mold, the material thins out as it travels down the vertical walls. Using a female mold with a plug assist helps push thicker material into the corners, solving this issue.
A: The standard industrial limit is typically around 0.080 inches (2 mm) for conventional machines. Processing thicker sheets up to 6 mm is possible but requires specialized industrial heaters, longer cycle times, and high-capacity vacuum pumps.
A: Yes, for specific volumes. Tooling costs are 2 to 3 times cheaper than injection molding, making it ideal for production runs of 250 to 3,000 parts per year. However, injection molding becomes more cost-effective at massive scales due to faster cycle times.
A: Unlike Polycarbonate or Acrylic, PETG generally does not require pre-drying before heating. This saves significant production time and reduces energy costs, making it a highly efficient choice for clear components.
A: Webbing is caused by excess material folding over itself. It typically results from overheating the plastic, using insufficient draft angles, or placing mold features too close together. Adjusting heating zones and mold spacing resolves this.
