Thermoforming is a versatile manufacturing process that has become integral in producing a wide range of plastic products. From packaging materials to automotive components, the applications are vast and continually expanding. This article serves as a comprehensive guide for beginners looking to understand the intricacies of the thermoforming process. By exploring the types of thermoforming machines, materials used, and the step-by-step process, readers will gain valuable insights into this essential manufacturing technique.
Thermoforming is a manufacturing process where a plastic sheet is heated to a pliable forming temperature, molded to a specific shape in a mold, and trimmed to create a usable product. This process is widely used due to its efficiency and the ability to create complex shapes with precision. The method is particularly popular in industries such as packaging, automotive, aerospace, and consumer goods.
There are mainly two types of thermoforming processes: vacuum forming and pressure forming. Vacuum forming involves heating a plastic sheet until it becomes malleable and then stretching it onto a mold using vacuum pressure. Pressure forming, on the other hand, uses positive air pressure to push the sheet against the mold, allowing for finer details and tighter tolerances.
The choice of material in thermoforming greatly affects the quality and properties of the final product. Common materials include Acrylonitrile Butadiene Styrene (ABS), Polyethylene Terephthalate (PET), Polycarbonate (PC), and Polyvinyl Chloride (PVC). Each material offers unique characteristics such as flexibility, durability, and resistance to heat and chemicals.
Understanding the detailed steps of the thermoforming process is crucial for anyone looking to delve into this manufacturing technique. The process can be broken down into several key stages.
The first step involves selecting the appropriate plastic material based on the desired properties of the final product. The plastic sheets are then cut to size and prepared for heating. Material quality and consistency are vital to ensure uniformity in the end product.
The plastic sheet is heated in an oven to a specific temperature where it becomes pliable but not melted. Precise temperature control is essential to maintain the integrity of the material and prevent defects.
Once heated, the plastic sheet is moved to the forming station. Depending on the method, vacuum or air pressure is applied to shape the sheet against the mold. This stage defines the detailed features and dimensions of the product.
After forming, the plastic needs to cool down to solidify its new shape. This is often done using fans or mist cooling systems. Controlled cooling prevents warping and ensures dimensional stability.
Excess material is trimmed away to create the final product. This can be done using manual trimming, die cutting, or CNC routers for precision. Finishing touches may include drilling holes, adding inserts, or applying coatings.
Thermoforming machines come in various configurations, each suited for different applications and production volumes. Understanding the types of thermoforming machines is essential for selecting the right equipment.
Manual machines are typically used for small-scale productions or prototyping. They require more operator intervention but offer flexibility for custom jobs and lower setup costs.
Semi-automatic machines balance between manual and fully automated systems. They are ideal for medium-sized production runs and offer increased efficiency while still allowing for operator control.

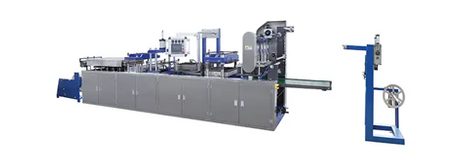

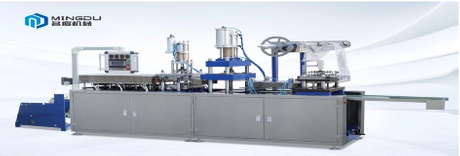

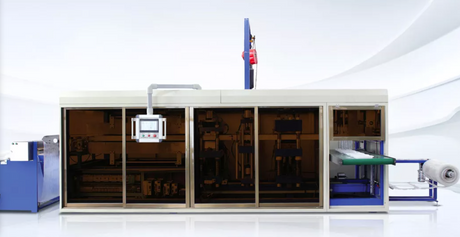

For high-volume production, fully automatic machines are the optimal choice. They offer precise control, faster production rates, and minimal operator involvement. Advanced features may include automatic feeding, cutting, and stacking.
Thermoforming is utilized in numerous industries due to its versatility and cost-effectiveness. Some of the prominent applications include:

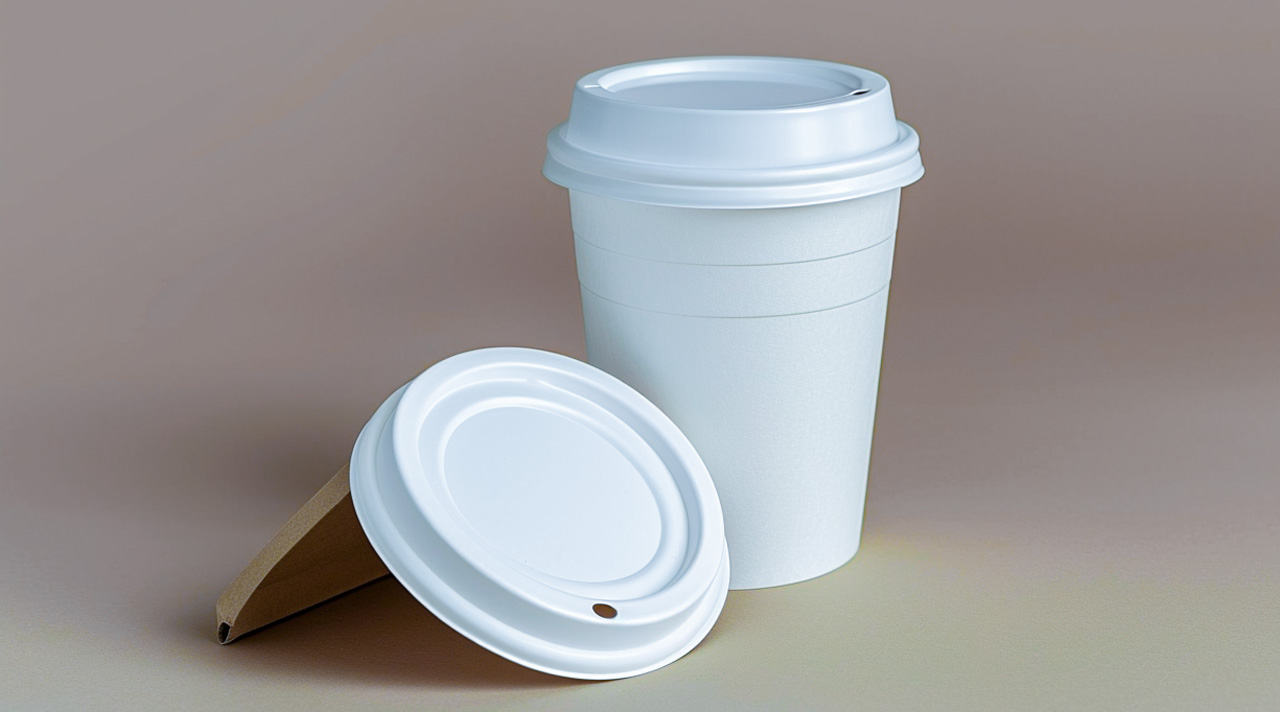

Thermoformed packaging is common in food, medical, and consumer goods. It provides lightweight, durable, and customizable options for product protection and display.
In the automotive sector, thermoforming is used to produce interior panels, dashboards, and other components. The process allows for complex shapes and textures, enhancing aesthetic appeal and functionality.
Thermoformed plastics are crucial in manufacturing medical device housings, trays, and disposables. The materials used are often sterile and meet strict regulatory standards.
Thermoforming offers several benefits that make it a preferred manufacturing method for many applications.
Compared to other molding processes, thermoforming often has lower tooling costs and faster setup times. This makes it economical for both small and large production runs.
The process allows for intricate designs and complex shapes. Multiple textures, colors, and finishes can be achieved, providing designers with extensive creative freedom.
Thermoforming machines can produce large quantities of products in a relatively short time frame. Automation and advanced technologies further enhance production speed and efficiency.
While thermoforming offers numerous advantages, there are challenges that manufacturers need to consider.
Not all plastics are suitable for thermoforming. Material selection is critical, and factors such as thickness, melt strength, and thermal properties must be carefully evaluated.
While design flexibility is a benefit, there are limitations in terms of wall thickness distribution and the ability to achieve sharp internal corners. Proper design and engineering are essential to overcome these challenges.
Maintaining consistent quality requires precise control over the process parameters. Temperature fluctuations, uneven material heating, or improper cooling can lead to defects such as warping, thinning, or surface imperfections.
The thermoforming industry has seen significant technological advancements aimed at improving efficiency, quality, and sustainability.
The integration of automation and robotics has revolutionized the thermoforming process. Automated thermoforming machines offer higher precision, reduced labor costs, and enhanced safety. Robotics can handle material loading, product sorting, and packaging, streamlining the entire production line.
Research into new materials has led to the development of bioplastics and recyclable materials suitable for thermoforming. These advancements address environmental concerns and meet increasing regulatory demands for sustainable manufacturing practices.
Modern thermoforming equipment includes sophisticated control systems that monitor temperature, pressure, and material feed rates in real-time. This ensures optimal conditions throughout the process and allows for immediate adjustments to prevent defects.
As industries move towards more sustainable practices, thermoforming has adapted to meet these needs.
Incorporating recycled plastics into the thermoforming process reduces waste and conserves resources. Many companies now offer products made from post-consumer recycled materials, aligning with environmental sustainability goals.
Modern machines are designed to be more energy-efficient, utilizing advanced heating elements and insulation to reduce energy consumption. This not only lowers operational costs but also minimizes the environmental footprint.
Thermoforming is a dynamic and essential manufacturing process with a wide range of applications. Understanding the principles, machinery, and materials involved provides a foundation for leveraging this technology effectively. Whether you're considering entering the field or looking to optimize existing operations, staying informed about the latest developments and best practices is crucial. As the industry continues to evolve with technological advancements and a focus on sustainability, thermoforming will remain a key player in modern manufacturing.
Exploring the options available in thermoforming machines and staying abreast of industry trends will equip you to make informed decisions and drive innovation in your applications.
