Choosing the wrong plastic forming method is not just a technical error; it is a financial misstep that can derail an entire product launch. Mismatched manufacturing processes often lead to ballooned tooling costs, delayed time-to-market, or unit economics that simply do not scale. For engineers and procurement leaders, the challenge lies in navigating a landscape where the "best" method is entirely dependent on production volume, part geometry, and material specifications.
In this analysis, we define "forming" broadly to cover the industry-standard manufacturing spectrum, ranging from high-pressure injection systems to low-pressure casting techniques. The core tension in manufacturing decision-making almost always pivots on one central balance: weighing Capital Expenditure (CAPEX), such as upfront tooling investment, against Operational Expenditure (OPEX), which determines the per-unit cost. By understanding how these factors interact with geometric complexity, stakeholders can make data-driven decisions that align manufacturing strategies with business goals.
Volume Dictates Process: Injection molding reigns supreme for high volume (10,000+ units), while Vacuum Casting and RIM dominate bridge production and prototyping.
Tooling Amortization: Thermoforming and Rotational Molding offer lower upfront tooling costs (20–40% of injection molds), making them ideal for mid-volume runs.
Geometry Constraints: Hollow parts necessitate Blow or Rotational molding; complex internal structures often require multi-slide injection molds or additive alternatives.
Material Specificity: Distinguish between Thermoplastics (remeltable) and Thermosets (irreversible), noting that processes like Compression Molding and RIM are specific to the latter.
Plastic injection molding remains the dominant process for mass-producing identical plastic parts. The process involves injecting molten resin at high pressure into a machined steel mold. The cycle—clamp, inject, cool, and eject—repeats rapidly, allowing for the production of millions of parts with consistent quality.
From a Total Cost of Ownership (TCO) perspective, injection molding offers the lowest per-unit cost once production scales. The repeatability is extremely high, and parts often require minimal post-processing, which further reduces labor costs. However, these operational efficiencies come with a significant entry barrier. The molds are complex to design and expensive to machine, often requiring hardened steel to withstand high pressures. Once a mold is machined, modifying it to accommodate design changes is difficult and costly.
This method is strategically viable when annual volumes exceed 10,000 units. It is the go-to solution for high-precision components and complex geometries that require tight tolerances. Unlike Pressure and Vacuum Forming, which generally requires consistent wall thickness, injection molding can handle variable wall thicknesses and intricate internal features like ribs and bosses with relative ease.

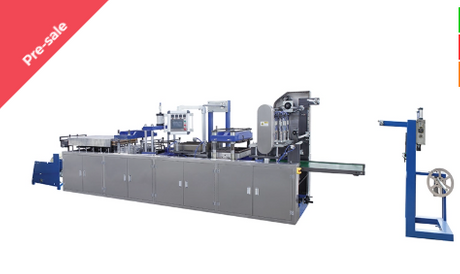

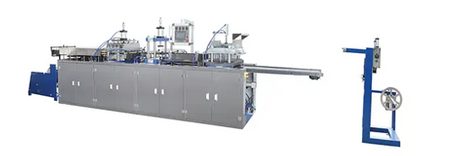

Thermoforming is an umbrella term for a set of processes where a thermoplastic sheet is heated to a pliable forming temperature, formed to a specific shape in a mold, and trimmed to create a usable product. This category bridges the gap between prototyping and mass production.
In vacuum forming, atmospheric pressure pushes the heated, soft plastic sheet against a mold. This process removes air from the space between the mold surface and the plastic sheet. It is ideal for manufacturing large, shallow parts such as instrument panels, trays, and signage where distinct surface detail is only required on one side of the part.
Pressure forming adds a layer of sophistication by using compressed air (positive pressure) to force the heated sheet into the mold. This nuance allows the process to achieve sharp corners, textures, and details that rival injection molding. With Pressure Forming, manufacturers can produce aesthetic, high-quality enclosures at a fraction of the tooling cost associated with injection molding, making it a powerful alternative for medical devices and kiosks.
For applications requiring hollow or double-walled structures, Twin Sheet Forming is the preferred technique. This process fuses two formed sheets together during the molding phase to create parts with high structural integrity and rigidity without the need for secondary adhesives or fasteners.

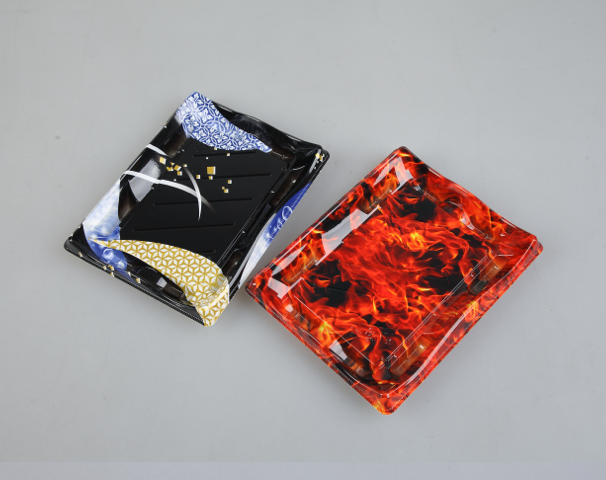

The primary advantage here is tooling cost. Molds are typically machined from aluminum rather than hardened steel, significantly lowering the initial investment. However, design limitations exist; standard thermoforming usually provides distinct detail on only one side. Additionally, Thin-Gauge Thermoforming is generally restricted to high-volume disposable packaging and lightweight trays rather than structural components.
When a product design calls for a hollow geometry, such as a bottle, tank, or duct, standard solid-molding techniques fail. The choice then narrows down to Blow Molding or Rotational Molding, depending largely on size and speed requirements.
Blow molding is optimized for high-speed production, with cycle times often measured in seconds. Extrusion Blow Molding (EBM) creates a parison (a tube of molten plastic) which is captured in a mold and blown outward. It is fast and cost-effective for simple consumer bottles.
Injection Blow Molding (IBM) starts with a preform that is injection molded before being blown. This offers higher precision, particularly for the neck finishes required in medical and cosmetic packaging. While IBM ensures tighter tolerances, it cannot handle thin walls or complex handle designs as easily as EBM.
Rotational molding takes a different approach. Plastic powder is placed inside a mold, which is then heated and rotated bi-axially. Gravity, rather than high pressure, coats the mold walls. The "stress-free" advantage of this method is significant; parts have virtually no residual stress, making them durable and impact-resistant.
The trade-off is speed. Cycle times are long, often exceeding 30 minutes, and material choices are largely limited to Polyethylene (PE) and Polypropylene (PP). However, the molds are inexpensive and durable, making this the standard for large hollow parts like kayaks, water tanks, and playground equipment.
Not every project requires thousands of units. For low-volume runs, prototypes, or specific material properties, specialty methods provide the necessary flexibility.
RIM occupies the thermoset niche. Instead of melting pellets, it uses a chemical reaction between two liquid components (typically Isocyanate and Polyol) injected into a mold. As the mixture expands and cures, it forms the part. This method is excellent for large, lightweight, and rigid automotive panels or equipment enclosures. Because the internal pressures are lower, RIM requires less clamping force and less expensive tooling compared to standard injection molding.
Vacuum casting acts as a bridge for prototyping. It utilizes silicone molds created from a 3D-printed master pattern. It produces high-quality parts that mimic the properties of production plastics. However, it is a temporary solution. Silicone molds degrade quickly—becoming brittle after approximately 20 shots—making this method viable only for marketing samples (20–50 units) or fit checks.
Primarily used for high-strength thermosets and composite materials, compression molding involves placing a pre-heated material charge into an open mold cavity. The mold is then closed and compressed. While it offers simple mold designs and low material waste, the cycle times are slower than injection molding due to the curing time required for the thermoset material to harden.
Making the final selection requires navigating the "Geometry-Volume-Material" triad. The following framework simplifies this complex logic into actionable dimensions.
| Decision Factor | Low Volume (< 500) | Mid Volume (500 – 5,000) | High Volume (10,000+) |
|---|---|---|---|
| Preferred Method | Vacuum Casting / 3D Printing | Roto Molding / RIM / Multistation Thermoforming | Injection Molding / Blow Molding |
| Tooling Cost | Minimal (Silicone/Soft Tooling) | Moderate (Aluminum Molds) | High (Hardened Steel) |
| Unit Cost | High | Moderate | Low |
For low volume needs under 100 units, Vacuum Casting or additive manufacturing avoids sunk costs. In the mid-volume range (500–5,000 units), processes like Multistation Thermoforming, Rotational Molding, or RIM provide the sweet spot where tooling amortization makes sense without the heavy burden of steel molds. Once demand surges past 10,000 units annually, the efficiencies of Injection or Blow Molding justify the high initial capital expenditure.
Designers must choose between Thermoplastics and Thermosets. Thermoplastics are recyclable and remeltable, fitting most standard forming processes. Thermosets, offering superior heat resistance and permanence, require irreversible processes like RIM or Compression Molding.
Timing the "design freeze" is critical. Injection molding requires strict "Design for Manufacturing" (DFM) adherence early in the process. Once the steel is cut, changes are expensive. Conversely, CNC machining or Thermoforming offers more flexibility for design adjustments mid-production.
Time-to-market often forces the hand of decision-makers. Steel injection molds typically require an 8–12 week lead time for machining and testing. In contrast, tools for thermoforming or casting can often be ready in 2–4 weeks, allowing for faster market entry.
There is no universally "best" method for forming plastics, only the most efficient method for a specific phase of the product lifecycle. Successful manufacturing strategies often involve a scalable path. Many products begin with Vacuum Casting for prototypes, move to Pressure Forming or RIM for market validation, and eventually graduate to Injection Molding once volumes justify the investment.
We encourage product leaders to audit their current volume projections and material requirements carefully. Before committing to expensive capital equipment, verify that the chosen process aligns not just with the geometry of the part, but with the financial reality of the product's roadmap.
A: The main difference lies in the pressure applied and the resulting detail. Vacuum forming relies solely on atmospheric pressure (~14.7 psi) to pull the sheet against the mold. Pressure forming adds compressed air (up to 60 psi or more) on the opposite side, forcing the plastic into the mold with much greater force. This allows Pressure Forming to achieve crisp details, sharp corners, and textured surfaces that closely resemble injection molded parts, whereas Vacuum Forming is better suited for simpler shapes.
A: You should switch when the cost of 3D printing materials and machine time per unit exceeds the amortized cost of injection molding tooling. This economic breakeven point typically occurs between 500 and 1,000 units, depending on part size. Beyond this volume, the high speed and low unit cost of injection molding offer a far superior Return on Investment (ROI).
A: It depends on the volume. Rotational Molding has significantly cheaper tooling costs because the molds are simpler and don't require internal cooling channels or high-pressure resistance. However, the cycle time is much longer (minutes vs. seconds), making the piece price higher. Therefore, Rotational Molding is cheaper for low-to-mid volumes and large parts, while Blow Molding is more economical for high-volume production of smaller containers.
A: Yes, in specific scenarios. Thermoforming is an excellent replacement for injection molding when production volumes are low to moderate (hundreds to low thousands) or when the parts are very large, like truck panels. However, it cannot replace injection molding for parts requiring complex internal geometry, variable wall thicknesses, or extremely high-volume production where unit cost is paramount.
A: Strength depends heavily on the material and geometry. Compression molding is often used for the strongest composite parts because it handles high-strength thermosets and long-fiber reinforcements well. For hollow structures, Twin Sheet forming provides exceptional structural rigidity. Rotational molding creates stress-free parts that are highly impact-resistant, making them durable for heavy-duty outdoor applications.
