ABS thermoforming is widely used to manufacture plastic housings, automotive interior parts, equipment covers, appliance components and other durable formed products.
ABS, or acrylonitrile butadiene styrene, combines good impact strength, rigidity, surface quality and relatively easy thermoforming. Unlike some semi-crystalline plastics, ABS softens progressively as it is heated, giving manufacturers a useful processing window for vacuum forming and pressure forming.
However, good results still depend on controlling ABS sheet temperature, sheet thickness, moisture, mold design, material stretching and cooling.
This guide explains the practical factors manufacturers should consider when thermoforming ABS plastic sheet.
ABS is an amorphous thermoplastic. Instead of changing rapidly from a solid into a liquid at one sharply defined temperature, it gradually softens as temperature increases.
That behavior gives ABS several advantages during thermoforming:
Relatively forgiving forming window
Good hot strength during stretching
Good impact resistance
Good surface reproduction
Suitable for vacuum and pressure forming
Easy trimming and machining after forming
Available in different colors, textures and finishes
Suitable for relatively large industrial components
ABS is particularly common in heavy-gauge and industrial thermoforming.
Typical products include:
Machine housings
Equipment covers
Automotive interior panels
Appliance liners
Electronic enclosures
Medical equipment housings
Protective guards
Vehicle trim
Industrial panels
ABS sheet suppliers also offer specialty grades such as flame-retardant, ESD, impact-modified and capped ABS for applications requiring additional performance.
There is no single ABS forming temperature that works for every ABS sheet.
Published thermoforming references show a relatively broad processing window. A useful practical starting range for many ABS sheets is approximately 150–180°C (302–356°F) sheet temperature, but the optimum temperature depends on the ABS grade, thickness, color, surface layer, forming depth and heating system.
The important number is the actual sheet temperature, not simply the oven heater setting.
A thermoforming oven may operate at a substantially higher temperature because heat must transfer from the heaters into the sheet.
For production setup, operators should monitor:
Sheet surface temperature
Temperature uniformity
Sheet sag
Surface appearance
Forming detail
Wall-thickness distribution
Uniform heating is often more important than chasing one exact temperature.
If part of an ABS sheet is too cold, the material may resist stretching and produce poor mold definition or stress whitening.
If the sheet becomes excessively hot, manufacturers may see:
Excessive sag
Uncontrolled thinning
Surface deterioration
Bubbles
Difficult material handling
The recommended temperature in the ABS sheet manufacturer's technical data sheet should therefore be used as the starting point, followed by machine trials.
Searches for ABS melting point are common, but this can be misleading when designing a thermoforming process.
Because ABS is an amorphous polymer, it does not behave like a crystalline plastic with one sharply defined melting transition.
For thermoforming, the more useful question is:
At what sheet temperature does this specific ABS grade reach the correct forming condition?
The material should become soft enough to stretch and reproduce the mold while retaining enough hot strength to prevent uncontrolled sagging or tearing.
This is why experienced thermoforming operations control a forming window, rather than setting production according to a theoretical melting-point value.
Not every ABS sheet needs the same drying treatment.
However, ABS can absorb moisture during storage. When moisture is present and the sheet is heated, it may contribute to:
Bubbles
Blisters
Surface marks
Poor cosmetic appearance
Whether pre-drying is necessary depends on factors such as:
ABS grade
Sheet thickness
Storage time
Humidity
Packaging condition
Required forming temperature
Surface-quality requirements
If the sheet has been stored in a humid environment or bubbles appear during heating, moisture should be investigated before changing other machine parameters.
For critical cosmetic parts, follow the ABS sheet supplier's recommended drying conditions rather than applying one generic drying cycle to every material.
There is no standard ABS sheet thickness for every thermoformed product.
The correct starting thickness depends mainly on the required final wall thickness after the material has stretched over the mold.
Typical considerations include:
Product size
Forming depth
Draw ratio
Minimum required wall thickness
Impact requirement
Structural stiffness
Part weight
Rib and corner geometry
Plug assist or pre-stretching
Trimming method
As a general engineering principle, deeper products require more attention to initial sheet thickness because the material must stretch over a larger surface area.
Thinner ABS sheet can be suitable for:
Lightweight trays
Inserts
Small covers
Decorative panels
It heats quickly but provides less material for deep stretching.
Medium thicknesses are often used for:
Electronic housings
Appliance panels
Machine covers
Automotive interior components
They provide a useful balance between formability, stiffness and impact performance.
Thicker ABS sheet is typically considered for:
Large machine housings
Equipment enclosures
Heavy-duty panels
Transportation components
Large protective covers
Thicker sheet requires more heating energy and typically longer heating and cooling times.
A better engineering method is therefore not to ask:
“What ABS thickness should I use?”
but:
“What minimum finished wall thickness must remain in the deepest area of the product?”
The starting sheet can then be selected from the required final wall thickness, geometry and expected material distribution.
ABS can be processed using both vacuum forming and pressure forming.
The correct method depends on the finished part.
Vacuum forming uses negative pressure to pull heated ABS sheet against the mold.
It is commonly suitable for:
Machine covers
Guards
Liners
Trays
Large panels
Relatively simple housings
Vacuum forming is often the more economical option when extremely sharp surface detail is not required.
Pressure forming uses additional compressed air to force heated sheet more firmly against the mold.
It is useful when the product requires:
Sharper corners
Better texture reproduction
Defined surface features
More detailed geometry
Higher cosmetic quality
This makes ABS pressure forming particularly suitable for products such as:
Medical equipment housings
Electronic enclosures
Instrument panels
Automotive interior components
High-quality industrial covers
Commercial thermoformers commonly use ABS in pressure-formed housings and enclosures because its combination of impact resistance and surface reproduction works well for visible industrial parts.
A thermoformed ABS part does not maintain the original sheet thickness everywhere.
As the heated sheet stretches into or over the mold, some areas travel farther than others.
Deep walls and corners generally experience more thinning.
Common factors affecting ABS wall-thickness distribution include:
Draw ratio
Product depth
Corner radius
Mold orientation
Heating profile
Plug assist
Pre-stretching
Forming speed
Starting sheet thickness
For deep-draw ABS products, simply increasing the starting thickness is not always the best solution.
Better wall distribution may also be achieved through:
Zoned heating
Plug assist
Air pre-stretching
Larger radii
Improved mold geometry
For this reason, wall thickness should be measured on prototype or trial parts before a production process is finalized.
ABS contracts as it cools after forming.
The exact shrinkage depends on the material grade, processing history, forming temperature, geometry and cooling conditions.
Published data for thermoforming-grade ABS commonly show relatively modest shrinkage compared with more strongly crystalline materials, but mold compensation should still be based on the actual sheet and production process rather than a generic number.
Dimensional variation can also result from:
Uneven heating
Uneven mold temperature
Premature demolding
Residual forming stress
Different wall thicknesses
Poor cooling uniformity
For products that must align with metal frames, fasteners or other assemblies, finished dimensions should be verified after the part has fully cooled.
One major advantage of ABS is its ability to produce attractive finished surfaces.
ABS sheet is available with:
Smooth surfaces
Gloss surfaces
Matte finishes
Haircell textures
Custom colors
Co-extruded surface layers
Thermoforming can reproduce mold texture well, particularly when pressure forming is used.
However, deep stretching can reduce the appearance of a texture in highly drawn areas.
When cosmetic appearance is important, engineers should define:
Which side of the sheet is visible
Which surface contacts the mold
Required grain or texture
Gloss level
Deep-draw areas
Paint or printing requirements
Some ABS products are also manufactured with ASA or acrylic/PMMA cap layers when improved UV resistance, gloss or weatherability is required. ABS itself generally needs modification or a weatherable cap for demanding long-term outdoor applications.
Possible causes:
Sheet temperature too low
Insufficient vacuum or pressure
Poor mold venting
Material too thick for the process conditions
Possible causes:
Excessive sheet temperature
Long heating cycle
Uneven heating
Large unsupported sheet area
Possible causes:
Moisture in the ABS sheet
Excessive heating
Surface contamination
Check material condition and storage before assuming the machine is the problem.
Possible causes:
High draw ratio
Tight corner radii
Poor temperature distribution
Insufficient pre-stretching
Plug assist or heating-zone adjustments may improve material distribution.
Possible causes:
Uneven cooling
Premature demolding
Residual stress
Uneven wall thickness
Stable mold temperature and adequate cooling are important for dimensional consistency.
ABS is commonly used for:
Interior trim
Console components
Door panels
Cargo-area panels
Protective covers
Its impact performance, appearance and ability to accept textures make it useful for vehicle interiors.

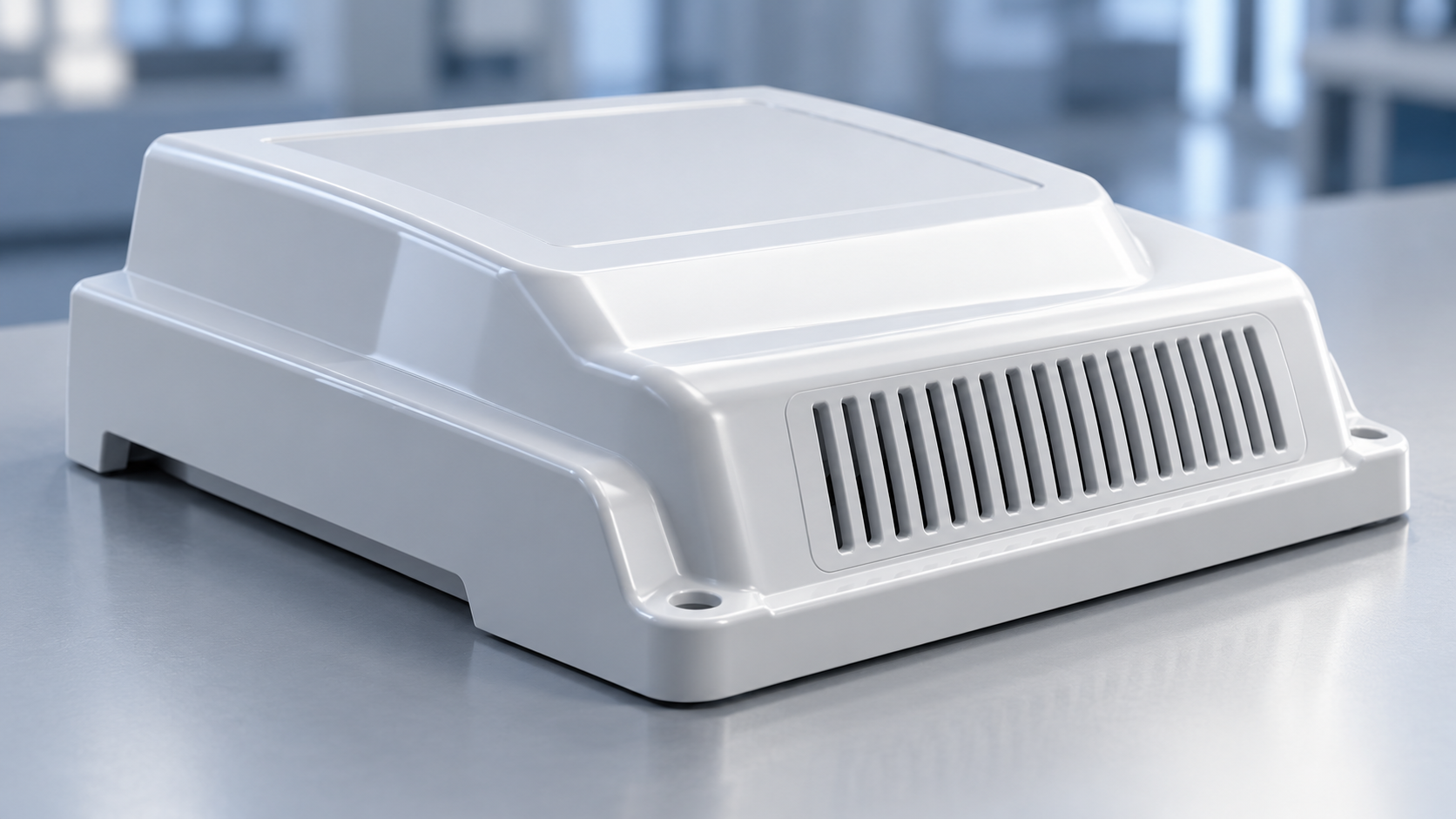

Pressure-formed ABS is well suited to:
Control-system housings
Machine covers
Instrument enclosures
Equipment panels
These applications often need both durability and attractive appearance.
ABS may be selected for external housings and covers where manufacturers require:
Clean appearance
Impact resistance
Complex geometry
Repeatable dimensions
Specific flame-retardant or specialty grades should be selected where regulatory requirements apply.
Typical products include:
Equipment enclosures
Control panels
Device housings
Protective covers
Specialty ESD or flame-retardant ABS grades are also available for applications with additional electrical or fire-performance requirements.
ABS is versatile, but it is not always the right choice.
Consider another material when the product requires:
High transparency: PETG, acrylic or polycarbonate may be more suitable.
Strong long-term outdoor weatherability: ASA, weatherable capped ABS or other UV-resistant materials may be preferable.
Very high heat resistance: PC/ABS, polycarbonate or another engineering polymer may be required.
Strong chemical resistance: PP or HDPE may perform better depending on the chemical environment.
Material selection should therefore start with the finished product requirements rather than selecting ABS simply because it is easy to thermoform.
The appropriate machine depends more on the product than on the ABS material itself.
For industrial ABS parts requiring detailed surfaces, defined corners or attractive textures, a Pressure Forming Machine is often a strong option.
For simpler housings, covers and panels, vacuum forming or combined Pressure and Vacuum Forming may be sufficient.
Machine selection should consider:
ABS sheet dimensions
Sheet thickness
Product depth
Required surface detail
Mold size
Heating-zone control
Forming pressure
Cooling requirements
Cutting method
Target output
For large or deep ABS parts, uniform sheet heating and adequate forming depth can be more important than nominal machine speed.
Yes. ABS is widely used for industrial thermoforming because it combines good formability, impact strength, rigidity and surface quality.
Many ABS thermoforming processes operate with sheet temperatures broadly around 150–180°C, although the actual usable window varies considerably by material grade, sheet thickness and equipment. Always start with the sheet manufacturer's technical data.
Not always. However, ABS can absorb moisture, and material stored under humid conditions may produce bubbles or surface defects during heating. Follow the supplier's drying guidance when moisture is suspected.
Yes. ABS is widely vacuum formed for housings, covers, panels, liners and other industrial components.
Yes. ABS is particularly useful for pressure forming when sharper surface detail, textures and improved cosmetic appearance are required.
Standard ABS has limited long-term UV weatherability. Outdoor products may require UV-stabilized grades or ABS with a weatherable ASA or acrylic cap layer.
ABS is one of the most practical materials for industrial thermoforming because it combines formability, impact strength, surface quality and design flexibility.
Successful ABS thermoforming depends on more than selecting a nominal temperature. The process should control actual sheet temperature, moisture, sheet thickness, wall-thickness distribution, mold design and cooling.
Vacuum forming can provide an economical solution for many covers and panels, while pressure forming is useful when products require better mold detail and surface appearance.
For a new ABS thermoforming project, start with the finished product drawing, required wall thickness, ABS grade, sheet dimensions and production target. These specifications make it possible to evaluate the material, mold and thermoforming machine as one complete system.
