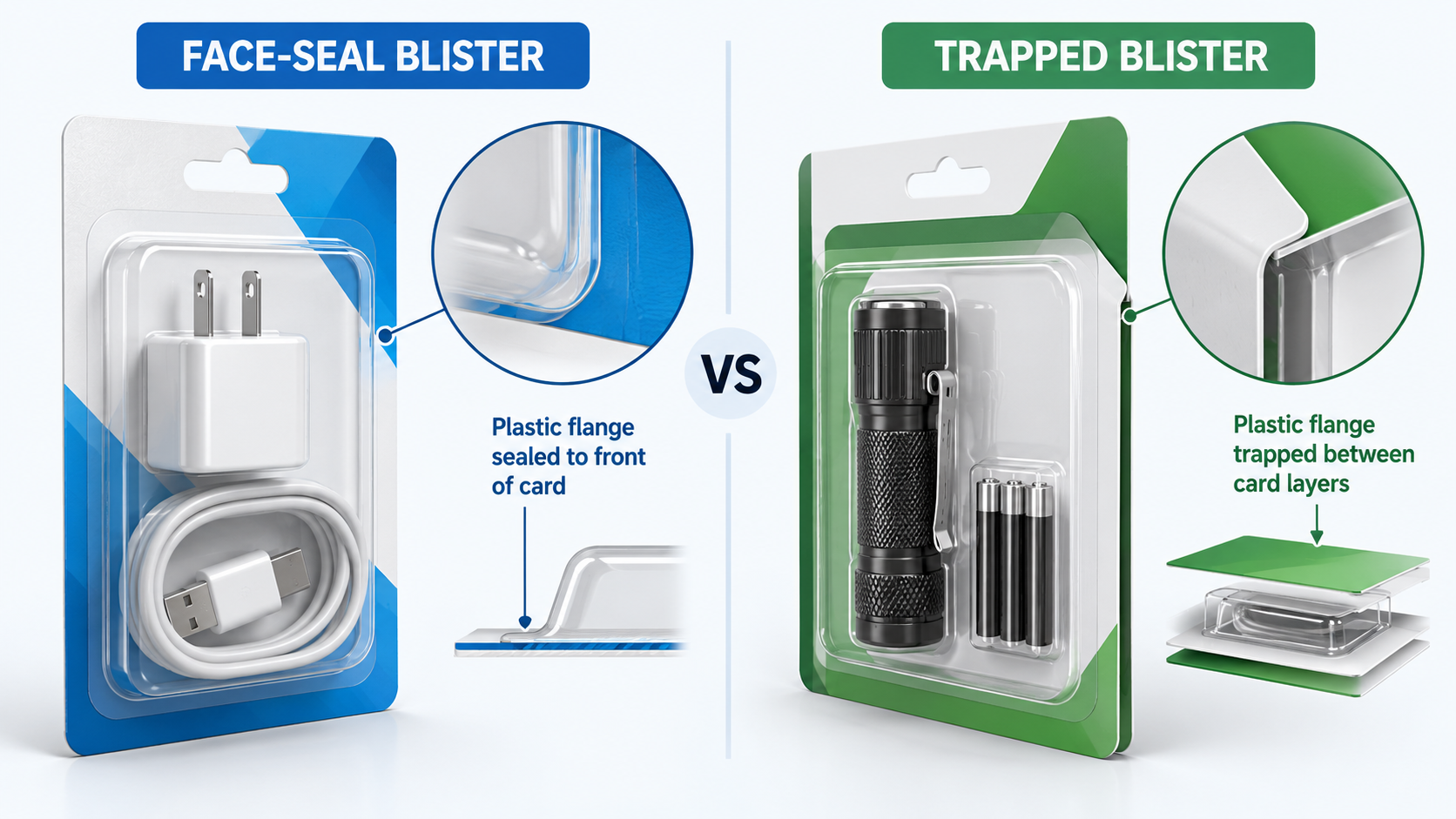

Face-seal and trapped blister packaging both combine a thermoformed plastic blister with printed paperboard, but the way the blister is attached to the card is fundamentally different.
In face seal blister packaging, the flat flange around the thermoformed blister is sealed directly to the surface of a coated backing card.
In trapped blister packaging, the blister flange is captured between two card layers or inside a folded card structure, leaving the flange largely hidden from view.
That structural difference affects more than appearance. It changes the sealing method, card design, tooling, assembly process, material use and production cost.
For packaging engineers and buyers, the correct choice should therefore be based on the complete production system rather than appearance alone.
| Factor | Face-Seal Blister | Trapped Blister |
|---|---|---|
| Blister attachment | Flange sealed directly to card face | Flange captured between card layers |
| Card structure | Usually single backing card | Two cards or folded multi-panel card |
| Plastic flange | Visible | Mostly concealed |
| Plastic-to-card seal | Critical | Often not the main structural bond |
| Card converting | Relatively simple | More complex |
| Printing area | Good | Excellent front and back presentation |
| Tooling | Forming + cutting + sealing tooling | Forming + cutting + card die + card-to-card sealing/assembly tooling |
| Typical positioning | Cost-efficient retail packaging | Premium presentation and more enclosed card structure |
Neither format is automatically better. The decision depends on product weight, desired appearance, security, print requirements, production volume and packaging equipment.
Face-seal and trapped blister formats are part of a broader family of thermoformed retail packaging structures explained in our Thermoformed Packaging Guide.
A face-seal blister typically consists of:
Thermoformed plastic blister + product + heat-seal-coated backing card
The blister has a flat perimeter flange around the product cavity.
During final assembly:
The product is loaded into the blister.
The blister is positioned against the printed card.
The flange contacts the coated card surface.
Heat and pressure activate the sealing system.
The flange becomes bonded to the card.
The basic structure is relatively straightforward, which is one reason face-seal blister packaging is widely used for products such as:
Small hardware
Batteries
Electronics accessories
Tools
Personal care products
Replacement components
Toys and small consumer goods
The large backing card also provides space for branding, specifications, instructions and barcodes.
A trapped blister uses a different card structure.
Instead of relying primarily on bonding the visible plastic flange directly to the front face of a single card, the flange is captured between paperboard layers.
The front card normally contains a die-cut opening through which the formed blister cavity protrudes.
Behind that front layer is either:
A second backing card, or
Another panel of a folded card structure
The blister flange remains between the card layers.
The simplified structure is:
Front Card → Blister Flange → Product/Blister → Back Card
This construction hides much of the flange and creates a more integrated card-and-plastic appearance.
The most important production difference between the two formats is how the package is held together.
The blister flange itself must bond reliably to the backing card.
Seal performance therefore depends on the interaction between:
Plastic material
Card coating
Flange flatness
Seal temperature
Pressure
Dwell time
If these variables do not match, the package may develop:
Partial seals
Lifted edges
Card fiber tear
Blister separation
Distortion around the flange
The plastic-to-card interface is therefore a critical part of face-seal production.
In a trapped design, the blister flange is mechanically contained by the surrounding card structure.
Depending on the design, the card layers may be joined using:
Heat sealing
Cold-seal adhesive
Other paperboard bonding systems
The blister does not necessarily need to be permanently bonded directly to the card around its complete flange.
This changes the sealing challenge from primarily:
plastic → card
to more of a:
card → card structure surrounding the plastic blister
The actual bonding system still needs to be validated for the selected board, coating and production line.
Face-seal cards can often use a relatively simple flat backing-card layout.
The designer needs to account for:
Blister location
Flange
Hang hole
Artwork
Seal area
Card edge
Barcode and product information
A trapped blister adds another structural layer.
The front card needs an opening that allows the blister cavity to project through the paperboard while retaining the flange behind the card.
The opening must therefore match the blister geometry accurately.
If it is too large:
Too much flange may become visible.
Product presentation may look inconsistent.
If it is too small:
The card may interfere with the formed cavity.
Assembly becomes difficult.
Paperboard may distort.
The rear card provides closure behind the blister and can offer substantial additional printing space.
This makes trapped blister packaging useful when manufacturers need:
More branding area
Detailed instructions
Multilingual information
Product specifications
Regulatory information
A cleaner front presentation
Card artwork should therefore be developed from the final structural drawing rather than designed independently.
One reason face-seal packaging remains attractive is structural simplicity.
The manufacturer generally needs:
One formed blister
One printed coated card
One sealing operation
A trapped blister often requires:
Formed blister
Front card
Back card or folded structure
Accurate window die cutting
Card registration
Card-to-card bonding or closing
That means the trapped design may involve more paperboard converting and assembly steps.
However, the additional structure can provide benefits in presentation, flange concealment and card rigidity.
The question should not therefore be:
Which design uses fewer components?
It should be:
Does the extra structure create enough value for the product and retail channel?
The flange remains important in both packages, but its function is different.
The flange acts directly as the sealing surface.
It should provide sufficient:
Width
Flatness
Dimensional consistency
Contact area
A narrow or distorted flange can make sealing less tolerant of registration and process variation.
The flange helps locate and retain the blister between the card layers.
Its geometry needs to coordinate with:
Front card opening
Backing card
Registration
Card bonding zone
Product cavity
Because the flange is hidden, designers have somewhat different visual constraints, but dimensional consistency remains important for automated assembly.
For either format, the flange should be considered when developing the thermoforming mould, not added after cavity design is already complete.
Both packages begin with a thermoformed blister, so both require forming tooling.
However, downstream tooling differs.
A production system may require:
Thermoforming mould
Blister cutting tool
Card cutting die
Heat-sealing fixture
Product positioning fixture
The sealing tool needs to apply controlled heat and pressure around the blister flange.
A trapped package may require:
Thermoforming mould
Blister cutting tool
Front-card window die
Card cutting/folding tooling
Registration fixture
Card bonding/sealing tooling
The forming tool itself may not necessarily be more complex, but the complete packaging tooling system can involve more paperboard-converting operations.
Therefore, tooling cost should be compared as:
Forming + Cutting + Card Converting + Final Assembly
rather than comparing thermoforming mould prices alone.
Before the card becomes involved, both formats require a stable thermoformed blister.
The basic sequence is:
Plastic Sheet → Heating → Forming → Cooling → Trimming
Depending on cavity geometry, the sheet may be formed using:
Vacuum
Positive pressure
Plug assist
Combined pressure and vacuum
For packages requiring controlled cavity definition, MINGDU's Pressure and Vacuum Forming Machines can be evaluated according to the material, forming depth, cavity layout and required production output.
The forming stage needs to control:
Cavity dimensions
Wall-thickness distribution
Flange flatness
Corner definition
Trim accuracy
These characteristics affect both face-seal and trapped blister assembly downstream.
A typical face-seal production flow can be summarized as:
Thermoforming → Cutting → Product Loading → Card Positioning → Heat Sealing → Inspection
Plastic sheet is heated and formed against the mould.
The blister is cut to create the final cavity and flange profile.
The product is placed inside the cavity.
The coated card is aligned behind the blister.
Heat and pressure activate the card's sealing layer.
Check:
Blister alignment
Seal continuity
Card damage
Product position
Package appearance
The simplicity of this sequence can make face seal blister packaging attractive for high-volume retail products.
A trapped blister uses a somewhat different downstream sequence:
Thermoforming → Cutting → Product Loading → Front Card Positioning → Blister Registration → Back Card/Fold-Over Panel → Card Bonding → Inspection
The critical difference is that the blister needs to register accurately with the opening in the front card.
Poor alignment can create:
Uneven visible borders
Card interference with the blister
Poor product presentation
Assembly difficulty
As a result, card die-cut accuracy and package registration are especially important.
This depends on the desired visual effect.
Advantages include:
Clear product visibility
Large card printing area
Simple retail appearance
Efficient material structure
However, the flange remains visible on the card surface.
The flange is concealed between card layers, which can create:
Cleaner front graphics
More integrated appearance
Additional back-card printing area
More premium paperboard presentation
This can be valuable for products where packaging graphics are a major part of brand positioning.
Neither format should automatically be described as “tamper proof.”
A properly sealed face blister can provide visible evidence if the blister is removed from the card.
A trapped blister can make access more difficult because the plastic flange is enclosed within the card structure.
But actual security depends on:
Board strength
Bond strength
Plastic thickness
Package geometry
Product weight
Opening design
The required level of security should be matched to the product rather than maximized unnecessarily.
For many straightforward retail products, face-seal packaging can start with a cost advantage because it typically uses:
One printed card
Simpler card converting
Fewer paperboard layers
A trapped blister may require:
More paperboard
More die cutting
Additional card registration
More complex assembly
However, unit cost depends heavily on:
Production volume
Card size
Printing
Plastic material
Automation
Product loading
Seal cycle
Tooling amortization
A trapped blister can still be economically justified when its improved appearance, card strength or presentation creates greater product value.
Cost efficiency is important
The product is relatively lightweight
A single printed card provides enough branding space
High-volume heat sealing is required
Visible blister flange is acceptable
The production process should remain relatively simple
A cleaner front appearance is important
The blister flange should be hidden
More paperboard printing area is useful
A premium carded presentation is required
Additional package structure is justified
The production line can handle more complex card registration
Before selecting either structure, review:
| Area | Face-Seal Question | Trapped Blister Question |
|---|---|---|
| Blister | Is the flange flat enough to seal? | Does the flange fit correctly behind the card opening? |
| Card | Is the coating compatible with the plastic? | Are front and back card structures correctly registered? |
| Sealing | Is plastic-to-card bonding reliable? | Is card-to-card bonding or closure reliable? |
| Tooling | Is the sealing fixture matched to the flange? | Are window cutting and registration tools accurate? |
| Printing | Is artwork clear of the seal area? | Does artwork align with the front opening? |
| Automation | Can blister and card feed reliably? | Can multiple card layers register consistently? |
Face seal blister packaging uses a thermoformed plastic cavity with a flat flange that is sealed directly to the front surface of a compatible printed card.
A trapped blister captures the plastic blister flange between two card layers or within a folded card structure rather than leaving the flange exposed on the card face.
The blister itself does not necessarily need to be heat sealed directly to the card in the same way as a face-seal blister. However, the card layers still need an appropriate bonding or closing method depending on the package design.
Face-seal designs are often structurally simpler and may use less paperboard. Trapped blister packaging can require additional card material and converting operations. The actual cost depends on volume, materials, tooling and automation.
A trapped design can hide the blister flange, create a cleaner front presentation and provide more card area for branding and information.
Potentially yes. Both use thermoformed plastic cavities. The main differences occur in card design and downstream assembly. Machine suitability still depends on material, forming depth, blister dimensions, tool layout and required output.
The main difference between face seal blister packaging and trapped blister packaging is not the thermoformed cavity itself—it is how the blister is integrated with the card.
A face-seal design relies on a reliable plastic-flange-to-card seal.
A trapped design relies on accurately locating the blister between multiple card layers.
That distinction changes:
Sealing method
Card construction
Tooling
Registration
Automation
Cost
Retail appearance
For manufacturers, the best approach is to define the complete production sequence before finalizing the package structure.
The blister geometry, flange, card and assembly process should be engineered together.
For thermoforming the plastic blister itself, MINGDU's Pressure and Vacuum Forming Machines can be evaluated according to plastic material, cavity depth, forming area, tooling layout and target production output.
