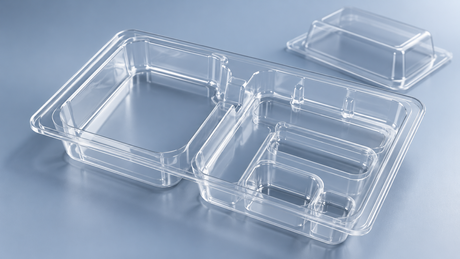

PET thermoforming is widely used to manufacture clear food trays, clamshell containers, bakery packaging, produce trays and other rigid packaging products.
PET, or polyethylene terephthalate, combines good clarity, stiffness, durability and compatibility with high-volume thermoforming production. It is also available in several sheet forms, including virgin APET and recycled-content RPET.
However, PET requires good temperature control during thermoforming.
If the sheet is too cold, it may not stretch or reproduce the mold correctly. If it becomes too hot for too long, crystallization can increase haze and reduce the clear appearance that makes PET attractive for packaging.
For a broader comparison of PET, PP, ABS, PETG, HIPS, polycarbonate and other thermoforming plastics, see our Thermoforming Materials Guide.
This guide focuses specifically on PET thermoforming, including APET and RPET sheet, temperature control, crystallization, moisture considerations and food packaging applications.
PET is a polyester thermoplastic widely used in bottles, sheet and rigid packaging.
For thermoforming, PET is normally supplied as relatively thin sheet or roll stock.
Common forms include:
APET means amorphous polyethylene terephthalate.
Its amorphous structure allows the material to remain clear and thermoformable when processed within the correct temperature range.
APET is commonly used for:
Food trays
Clamshell packaging
Bakery containers
Produce packaging
Deli trays
Retail packaging
Commercial APET sheet is specifically available for rigid thermoformed packaging where clarity and product visibility are important.
RPET is PET containing recycled material.
Depending on the sheet construction and application, RPET may contain post-consumer or other recycled PET while maintaining the properties needed for thermoformed packaging.
Typical uses include:
Food trays
Produce containers
Clamshells
Retail packaging
Food-contact suitability depends on the specific sheet grade and applicable regulations, so manufacturers should confirm supplier documentation rather than assuming every RPET sheet is suitable for direct food contact.
PET provides a useful combination of properties for packaging production.
Typical advantages include:
High clarity
Good stiffness
Good dimensional appearance
Useful impact performance
Good barrier characteristics
Lightweight packaging potential
Availability with recycled content
Suitability for high-volume production
GOEX, for example, describes PET-based materials as widely used in thermoforming where high clarity is required and offers APET and RPET specifically for food packaging applications.
PET is especially well matched to roll-fed thermoforming because sheet can move continuously through heating, forming and cutting operations.
A typical PET packaging process includes the following steps.
PET sheet is supplied from a roll and fed into the thermoforming machine.
The sheet must remain aligned and under consistent tension so it reaches the heating and forming stations correctly.
The PET sheet passes through controlled heating zones until it reaches the required forming condition.
Uniform heating is essential.
Different regions of the sheet may require different amounts of heat depending on:
Product depth
Cavity layout
Sheet thickness
Mold geometry
Once softened, the PET sheet is shaped against the mold using vacuum, pressure or a combination of both.
For shallow trays, vacuum may provide sufficient definition.
For more detailed or deeper packaging, pressure and plug-assist techniques can help improve wall-thickness distribution.
The formed PET must cool sufficiently to maintain its shape before leaving the mold.
Cooling affects:
Dimensional stability
Cycle time
Product release
Final appearance
The formed products are separated from the surrounding sheet.
High-volume packaging systems may combine:
forming → cutting → stacking
in one automated production line.
For this type of production, a Multistation Thermoforming Machine can integrate several processing stages into the same equipment system.
There is no single forming temperature that applies to every PET sheet.
The correct temperature depends on:
PET grade
APET or multilayer sheet structure
Sheet thickness
Heating method
Machine speed
Product depth
Mold geometry
A useful industry comparison published by Eastman shows APET thermoforming within roughly 290–325°F (143–163°C) under a specific test condition and draw ratio.
That should be treated as a processing reference—not a universal machine setting.
Different PET sheets may require different forming windows.
The important parameter is the actual sheet temperature, not simply the heater setting.
The safest approach is:
sheet supplier data → trial forming → part inspection → process optimization
Crystallization is one of the most important issues in PET thermoforming.
PET can exist in both amorphous and crystalline states.
APET is kept primarily amorphous because that structure provides the clear appearance required for packaging.
During heating, however, PET can begin to crystallize if temperature and heating time move outside the appropriate process window.
Eastman's comparison of APET with amorphous copolyester notes that APET has a relatively narrow thermoforming window: excessive heat exposure can lead to crystallization, haze and eventually a more opaque appearance.
For packaging producers, this matters because a clear tray can lose one of its most important selling points.
As crystallinity increases, the sheet may become:
Hazy
Milky
Less transparent
More difficult to form
More brittle under some conditions
This is why PET thermoforming is not simply a matter of heating until the sheet becomes very soft.
The objective is to reach the correct forming condition without keeping the material hot long enough to cause unwanted crystallization.
Long exposure at elevated temperature can increase crystallization.
Avoid unnecessarily long oven residence times.
Cold areas may resist forming while overheated areas may haze or stretch excessively.
Heater-zone control is therefore important.
Once the PET reaches the correct forming condition, the machine should move efficiently into the forming stage.
Temperature variation between production cycles can create inconsistent clarity from one tray to another.
A stable process window is more valuable than chasing the highest possible sheet temperature.
Clarity is one of PET's major advantages.
Commercial APET packaging sheet can provide extremely low haze and high product visibility. Spartech, for example, markets APET FDA sheet specifically for rigid packaging requiring a crystal-clear appearance.
Clear packaging is particularly valuable for:
Fresh produce
Bakery products
Deli foods
Salads
Fruit
Prepared meals
Retail products
Consumers can inspect the product without opening the package.
Amcor's commercial PET deli trays similarly use transparent PET specifically to display the food inside the package.
This question needs a careful answer.
PET resin used for sheet extrusion requires strict moisture control because polyester can degrade when processed at melt temperature with excessive moisture.
But that does not mean every finished APET thermoforming sheet automatically needs a separate pre-drying cycle before forming.
Whether sheet drying is required depends on:
Specific PET grade
Sheet construction
Storage conditions
Moisture exposure
Supplier processing recommendations
Thermoforming temperature
For many commercial APET roll-stock packaging operations, sheet can be thermoformed directly when it has been manufactured and stored correctly.
Therefore, do not automatically apply polycarbonate-style drying procedures to PET sheet.
Instead:
Keep rolls properly packaged and stored.
Avoid condensation.
Follow the sheet supplier's TDS.
Investigate moisture or material condition if unusual bubbles or surface defects occur.
The distinction between drying PET resin before extrusion and drying finished PET sheet before thermoforming is important.
Virgin APET and RPET can both be used for rigid thermoformed packaging.
| Factor | APET | RPET |
|---|---|---|
| Feedstock | Primarily virgin PET | Contains recycled PET |
| Clarity | Typically very high | Can also provide high clarity |
| Thermoformability | Good with controlled heating | Grade-dependent |
| Food packaging | Widely used | Food-grade versions available |
| Recycled content | Low or none | Higher |
| Sustainability positioning | Recyclable PET | Adds recycled-content benefit |
Modern RPET sheets can maintain high clarity and thermoforming performance while incorporating recycled content.
GOEX, for example, offers RPET grades for food packaging with post-consumer recycled content while retaining clear appearance.
The key issue is sheet consistency.
Recycled-content percentage, layer structure and supplier quality control can influence:
Heating response
Color
Clarity
Mechanical behavior
Manufacturers should therefore validate the actual RPET sheet rather than assuming it will process identically to another PET grade.
PET and PETG are related materials but they behave differently during forming.
| Factor | APET | PETG |
|---|---|---|
| Clarity | Excellent | Excellent |
| Forming window | Narrower | Broader |
| Crystallization sensitivity | Higher | Lower |
| Deep forming | More process-sensitive | Easier |
| High-volume food packaging | Very common | Used less often |
| Medical / complex clear trays | Possible | Particularly suitable |
PETG is modified to reduce crystallization and provide a wider forming window.
Eastman's thermoforming comparison shows PETG maintaining a broader processing window than APET under the same test conditions.
That does not mean PETG is automatically better.
For high-volume food trays, clamshells and other conventional clear packaging, APET remains highly practical because of its stiffness, clarity, cost structure and established recycling stream.

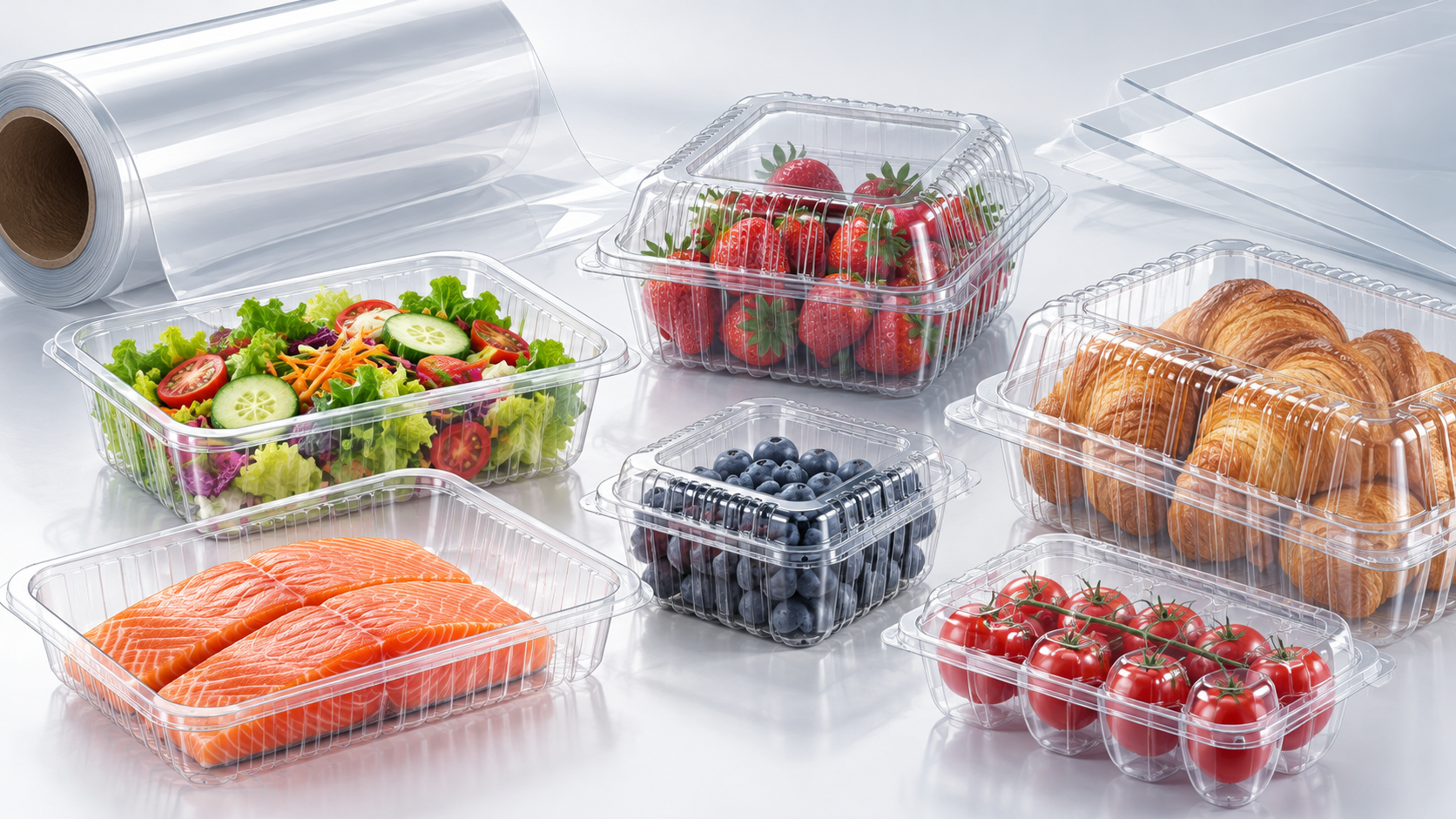

Food trays are one of the strongest applications for PET thermoforming.
Typical examples include:
Fresh fruit trays
Salad containers
Bakery packaging
Deli trays
Meat and protein trays
Prepared-food containers
Clamshell packages
PET offers several useful packaging properties.
Clear PET allows customers to see the food before purchase.
The tray can maintain its shape using relatively thin sheet.
PET roll stock works well with automated packaging thermoforming.
RPET allows manufacturers to incorporate recycled material into suitable tray structures.
Multilayer APET-based sheet can also be designed with additional barrier properties for applications requiring extended food protection.
For example, commercial APET sheet is available in medium- and high-barrier structures specifically for thermoformed food trays.
The starting PET sheet does not remain the same thickness everywhere after thermoforming.
As the sheet stretches into the mold:
Deep walls become thinner
Corners can become thinner
Shallow areas retain more material
The final result depends on:
Starting gauge
Product depth
Draw ratio
Heating profile
Corner radius
Cavity design
Plug assist
For deep food trays, simply increasing sheet thickness may increase material cost without producing the best wall distribution.
Process adjustments such as plug assist and heating-zone control can often provide a better solution.
Possible causes:
Excessive heating
Excessive oven residence time
Crystallization
Uneven temperature
Possible causes:
Sheet too cold
Insufficient vacuum or pressure
Poor mold venting
Possible causes:
High draw ratio
Tight corners
Local overheating
Poor pre-stretching
Possible causes:
Excessive sheet temperature
Poor cavity spacing
Excessive sag
Possible causes:
Insufficient cooling
Uneven mold temperature
Premature product release
Troubleshooting should consider the entire process rather than changing forming pressure alone.
PET food trays and containers are commonly produced from relatively thin roll-fed sheet.
For this type of application, a Thin-Gauge Thermoforming Machine can support continuous sheet feeding and high-volume packaging production.
For applications requiring multiple automated stages—including forming, punching or cutting and stacking—a Multistation Thermoforming Machine can integrate these operations into one production line.
Machine selection should consider:
PET sheet width
Sheet thickness
Product dimensions
Forming depth
Number of cavities
Cutting method
Required output
Heating-zone control
For PET production, stable heating and cycle repeatability are especially important because the usable forming window can be narrower than with materials such as PETG.
Yes. PET is one of the most widely used thermoforming materials for clear rigid packaging, particularly food trays, clamshells and containers.
There is no universal temperature. One APET industry comparison shows a forming window around 143–163°C under specific test conditions, but the correct range depends on the actual sheet grade, thickness and machine.
APET is amorphous PET. Its low-crystallinity structure keeps the material clear and suitable for thermoforming.
RPET is PET containing recycled material. Suitable RPET grades can be used for clear thermoformed packaging and food applications where regulatory requirements are met.
One possible cause is crystallization caused by excessive temperature or time at elevated temperature. Uneven heating can also contribute to haze.
Not every finished PET sheet requires a separate drying step. Follow the sheet manufacturer's recommendations and distinguish thermoforming sheet preparation from the strict resin drying required during PET extrusion.
Yes. APET and food-grade RPET are widely used for trays, clamshells and other rigid food packaging.
PET is one of the most important materials for high-volume thermoformed packaging because it combines clarity, stiffness, durability and recyclability.
APET provides the clear amorphous structure needed for trays and clamshells, while RPET allows suitable packaging to incorporate recycled PET content.
The main processing challenge is temperature control.
PET must become hot enough to form efficiently without remaining in conditions that encourage unwanted crystallization and haze.
Successful PET thermoforming therefore depends on:
controlled heating + stable forming temperature + good material distribution + fast repeatable cycling + adequate cooling.
For high-volume food trays and clear packaging, roll-fed thin-gauge and multistation thermoforming systems provide an efficient production route when the machine, PET sheet and mold are matched correctly.
