High initial tooling costs and extended lead times in injection molding often kill hardware projects before they reach the market. Manufacturers and agile design teams need a scalable method to produce large-format parts, custom prototypes, and short-run production without committing tens of thousands of dollars to steel tooling. When product iterations demand flexibility, rigid manufacturing processes become a liability rather than an asset.
Vacuum forming bridges the gap between rapid prototyping and mass manufacturing. By utilizing controlled heat and atmospheric pressure, this process transforms flat thermoplastic sheets into complex three-dimensional shapes at a fraction of the cost of traditional molding. This guide breaks down the engineering parameters, tooling economics, and technical realities of integrating a commercial, industrial, or desktop vacuum forming machine into your production workflow.
Cost-to-Market Advantage: Tooling costs for vacuum forming are significantly lower than injection molding, enabling Just-In-Time (JIT) production and reducing inventory holding risks.
Agile Tooling Integration: Combining modern 3D printing with vacuum forming reduces mold lead times from months to under 48 hours.
Engineering Constraints: Success relies on strict adherence to draw ratios (max 3:1) and precise draft angles (1°–5°) to prevent material thinning and part failure.
Scalability: From desktop DIY applications using TPU to industrial twin-sheet forming for aerospace components, the process scales linearly with equipment investment.
Understanding the mechanical sequence of a vacuum forming machine is essential for optimizing cycle times and ensuring part consistency. The process relies on a synchronized system of thermal management, pneumatic control, and mechanical manipulation. Operators must master these variables to produce parts that meet strict dimensional tolerances.
The fundamental operational cycle consists of five distinct phases. First, the thermoplastic sheet is heated to a pliable, thermoelastic state. Second, the automated platform places the heated sheet over the mold. Third, the system applies vacuum pressure, evacuating the air between the sheet and the mold to draw the material tight against the geometry. Fourth, cooling systems rapidly lower the plastic's temperature to solidify the shape. Finally, the formed part undergoes CNC or manual trimming to remove excess flange material. Each step requires precise calibration based on the material thickness and mold complexity.
Consistent thermal distribution dictates the final quality of the formed part. Industrial equipment utilizes ceramic, quartz, or infrared heaters. Zoned heating allows operators to apply different temperature profiles to specific areas of the sheet, preventing burn marks and ensuring uniform stretching over complex mold geometries. For instance, deeper draw areas might require slightly higher temperatures to increase material flow.
| Heater Type | Response Time | Energy Efficiency | Best Application |
|---|---|---|---|
| Ceramic | Slow | High | Continuous, long-run production cycles. |
| Quartz | Medium | Medium | Medium runs requiring moderate temperature adjustments. |
| Halogen/Infrared | Fast | Low | Rapid prototyping and materials requiring instant heat. |
Maintaining sheet tension during the heating phase prevents premature sagging. Pneumatic clamps secure the perimeter of the thermoplastic. Advanced quality control systems incorporate photoelectric beams that monitor sheet sagging in real-time. If the material drops below a specific threshold, the system triggers corrective air bursts to maintain a level surface before forming. This prevents the material from touching the heaters or pre-chilling on the mold.
High-fidelity detail capture requires robust evacuation capabilities. Industrial standards dictate that a vacuum forming machine must achieve vacuum pressures of 70–85 kPa (20–25 inHg). Insufficient pressure results in soft corners and poor replication of mold textures. High-volume rotary vane pumps are typically employed to evacuate the air rapidly, ensuring the plastic does not cool before it fully conforms to the mold.
Cycle time reduction heavily depends on the cooling phase. High-velocity fans and atomized water jets rapidly dissipate heat from the formed plastic. Once cooled and ejected, multi-axis CNC routers or robotic trimming arms remove the waste material, which can often be re-pelletized for closed-loop manufacturing. Proper cooling prevents post-mold warpage, especially in semi-crystalline polymers like HDPE.
Different product requirements necessitate specific thermoforming methodologies. Selecting the correct variation optimizes both material usage and structural integrity. You must align the process with the end-use environment of the product.
This is the standard process for medium-to-shallow draw parts. It utilizes a single mold and atmospheric pressure to shape the plastic. It is best suited for packaging solutions like blister packs and clamshells, automotive dashboards, and commercial signage where only one side of the part requires precise detailing. It remains the most cost-effective entry point into thermoforming.
Twin-sheet forming involves heating and forming two separate sheets simultaneously, then fusing them together under pressure to create hollow, structural parts with enclosed cavities. This technique is best for manufacturing pallets, insulated containers, and lightweight structural panels that require high durability and rigidity without the weight of solid plastic. It often replaces rotational molding for faster cycle times.
Pressure forming enhances the standard vacuum process by introducing positive air pressure on the non-mold side of the sheet. This forces the material into the mold with significantly higher force. It is best for medical device housings and electronics that require injection-molding-level details, strict dimensional tolerances, and sharp textured finishes. It allows for zero-draft designs in specific localized areas.
Compact vacuum forming machines have democratized the manufacturing process for makers, educators, and small studios. Operating on standard electrical currents, these units are best for rapid mold casting (such as soap, chocolate, and resin), cosplay props, theatrical masks, and architectural miniatures. They provide immediate physical validation of CAD models.
The success of any thermoformed part originates in the mold design. Improper geometry leads to material webbing, excessive thinning, and parts locking onto the tool. Engineering a robust mold requires balancing thermal conductivity with mechanical strength.
Tooling orientation fundamentally alters how the plastic stretches and cools. Male (positive) molds protrude upward; the material stretches over the exterior. Because cooling plastic naturally shrinks away from a male mold, it requires only 1°–3° draft angles. This setup is ideal for parts needing smooth internal dimensions. Conversely, female (negative) molds feature a cavity where the material is drawn inward. As the plastic cools, it shrinks and grips the internal walls, requiring steeper 3°–5° draft angles for successful ejection. Female molds are ideal for capturing sharp exterior details.
Draft Angles: Mandatory for part ejection without damage. Deeper draws require steeper angles to prevent the plastic from locking onto the tool.
Radii Corners: Avoid sharp 90-degree angles. Generous radii facilitate smooth material flow, preventing webbing and tearing during the vacuum phase.
Vent Holes: Strategic placement of sub-millimeter vent holes in corners, edges, and deep cavities ensures complete vacuum evacuation, preventing trapped air pockets.
Undercuts: Avoid undercuts unless absolutely necessary. They require complex, multi-part breakaway molds or pneumatic side-actions, drastically increasing tooling costs.
Draw Ratio Calculation: The fundamental formula is Final Thickness = Initial Sheet Thickness / Draw Ratio. As a rule of thumb, a ratio exceeding 3:1 causes severe material thinning and necessitates plug-assist technology to mechanically push the material into deep cavities.
Selecting the right tooling material balances initial capital expenditure against the required production volume. You must factor in the thermal degradation of the mold over thousands of cycles.
| Material | Cost & Lead Time | Lifespan | Best Application |
|---|---|---|---|
| 3D Printed (Resin/FDM) | Low / < 48 hours | Low to Medium | Rapid tooling, prototypes, clear aligners. |
| Modeling Clay | Very Low / Immediate | Very Low | DIY rapid sculpting. Requires absolute drying to prevent blistering. |
| Wood / MDF | Low / Days | Few hundred cycles | Short runs. Prone to thermal expansion and warping. |
| Structural Foam / Urethane | Medium / 1-2 Weeks | Thousands of cycles | The economic middle-ground for medium-run production. |
| Cast Aluminum | High / 2-8 Weeks | Millions of cycles | Mass industrial production requiring active temperature control. |
Thermoplastics exhibit unique thermal behaviors. Matching the material to the application requires precise control over heating temperatures and an understanding of post-forming shrinkage. Selecting the wrong polymer can lead to catastrophic part failure in the field.
Industrial manufacturing relies on a core group of polymers, each with specific processing requirements. You must calibrate your equipment to these specific thermal windows:
ABS: Forming temperature ranges from 130–180°C with a shrinkage rate of 0.3-0.8%. It offers high impact resistance, making it ideal for automotive components and luggage.
PETG: Forming temperature is 120–160°C with 0.3-0.7% shrinkage. It is FDA-approved and chemical resistant, perfect for medical trays and food packaging.
HDPE: Exhibits high shrinkage (2.0-3.5%). While it offers excellent chemical resistance, it requires precise cooling control to prevent severe warpage post-forming.
Polycarbonate (PC) & PVC: PC requires high heat (160–210°C) to achieve extreme durability. PVC forms at 140–190°C and provides excellent inherent fire retardancy.
Polypropylene (PP): Shrinkage sits at 1.5-2.2%. It is highly flexible and fatigue-resistant but notoriously difficult to form due to severe sagging during the heating phase.
Acrylic (PMMA): Shrinkage is low (0.3-0.8%). It provides high optical clarity, utilized heavily for skylights and retail displays.
Modern manufacturing increasingly demands specialized and environmentally conscious materials. TPU (Thermoplastic Polyurethane) provides flexible, skin-safe properties, while LDPE (Low-Density Polyethylene) offers cold-resistant characteristics for wearables and shallow detailed draws. To meet ESG (Environmental, Social, and Governance) goals, manufacturers are shifting toward PLA (Polylactic Acid), a corn-starch-based biodegradable plastic, and PCR (Post-Consumer Recycled) plastics. These materials enable closed-loop manufacturing by allowing trim scrap to be re-pelletized and extruded into new sheets. Learn more about sustainable manufacturing practices.
Even with precise equipment, thermal and mechanical variables can introduce defects. Identifying the root cause is critical for maintaining high yield rates. Operators must monitor the process continuously to catch deviations early.
Webbing / Wrinkling: Caused by excess material gathering in deep draws or tight corners. Solution: Optimize mold geometry by increasing radii, adjust zoned heating to control material flow, or utilize pre-stretching techniques like bubble blowing before the vacuum is applied.
Blistering: Caused by moisture trapped inside the thermoplastic sheet expanding rapidly under heat. Solution: Implement strict pre-drying protocols in industrial ovens for hygroscopic materials (like ABS and Polycarbonate) before placing them in the vacuum forming machine.
Burn Marks: Caused by localized overheating or prolonged exposure to heating elements. Solution: Reduce the heating cycle time, increase the distance between the sheet and the heaters, and calibrate zoned ceramic heaters to lower intensity in affected areas.
Excessive Thinning: Occurs when material stretches too far over deep mold features. Solution: Implement plug-assist forming to mechanically push material into deep cavities before the vacuum engages, or redesign the product as a multi-part assembly to avoid deep draws entirely.
Evaluating the Total Cost of Ownership (TCO) and Return on Investment (ROI) reveals why thermoforming remains a dominant manufacturing process for specific production tiers. It provides a financial buffer against unpredictable market demands.
Accelerated Go-to-Market: Transitioning from a CAD concept to a working prototype for investor presentations can take mere days. Standard production lead times average 6-10 weeks, which is significantly faster than the months required to machine steel-tooled injection molds. This speed allows companies to capture market share ahead of competitors.
Just-In-Time (JIT) Manufacturing: Rapid tool changeovers allow for on-demand production. This agility drastically reduces warehouse footprints, minimizes inventory holding costs, and mitigates product obsolescence risks in fast-moving industries. You only produce what you sell.

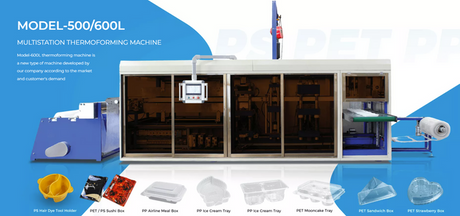

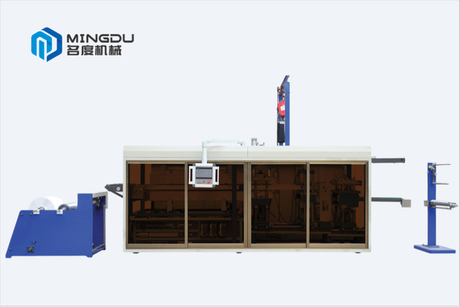

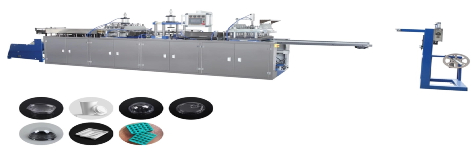

Large-Format Viability: Producing large parts, such as aerospace cabin panels, automotive bumpers, or boat hulls, via vacuum forming costs a fraction of large-tonnage injection molding. The machinery and tooling scale economically for large surface areas. A multi-station pressure vacuum tray thermoforming machine exemplifies this high-yield capability.
Mass Customization: Integration with IoT, predictive maintenance sensors, and automated robotic trimming enables profitable short-run, highly customized product lines. Manufacturers can switch molds and materials rapidly to serve niche markets without incurring massive downtime.
Vacuum forming is not a replacement for injection molding in high-volume, micro-tolerance applications. However, for large-format parts, rapid prototyping, and production runs under 10,000 units, it offers an unbeatable ROI. Evaluate your production volume, required wall thickness uniformity, and part size. If agility and low initial capital expenditure are paramount, investing in a vacuum forming machine or partnering with a specialized thermoformer is the optimal path.
Calculate your required draw ratios to ensure your part geometry is viable for thermoforming without excessive thinning.
Assess 3D printed tooling viability for your initial prototypes to accelerate your go-to-market timeline.
Request material samples from suppliers to test thermal shrinkage and chemical resistance against your specific application requirements.
Audit your current inventory holding costs to determine if transitioning to a Just-In-Time vacuum forming model will improve cash flow.
A: The general rule of thumb is a maximum draw ratio of 3:1. Exceeding this ratio typically causes severe material thinning and structural weakness. For deeper draws, engineers must utilize plug-assist technology to mechanically distribute the plastic into the mold cavity before applying the vacuum.
A: Material thinning is estimated using the draw ratio calculation. Divide the initial sheet thickness by the draw ratio (which is the final part surface area divided by the initial sheet surface area). This provides the average final wall thickness, though corners and deep recesses will naturally be thinner.
A: Male (positive) molds protrude outward, meaning the plastic stretches over them, capturing precise internal dimensions and requiring 1°–3° draft angles. Female (negative) molds are cavities where plastic is drawn inward, capturing precise external details and requiring steeper 3°–5° draft angles for ejection.
A: Blistering occurs when hygroscopic plastics (like ABS, PC, or PETG) absorb ambient moisture. During heating, this trapped moisture turns to steam, creating bubbles. Fix this by pre-drying the thermoplastic sheets in an industrial oven at specific temperatures before forming.
A: Yes. 3D printed molds made from high-temperature resins or tough FDM filaments are excellent for rapid prototyping and short production runs. They drastically reduce tooling lead times to under 48 hours, though they have a shorter lifespan than cast aluminum molds.
A: Polylactic Acid (PLA), derived from renewable resources like corn starch, is a popular biodegradable option. Additionally, Post-Consumer Recycled (PCR) plastics and re-pelletized scrap materials (like recycled PETG) are widely used to meet corporate ESG goals and create closed-loop manufacturing systems.
A: Injection molding typically becomes more cost-effective at volumes exceeding 10,000 to 20,000 units. At this scale, the high initial cost of steel tooling is amortized across the large unit volume, offsetting vacuum forming's advantage of lower tooling costs and faster setup times.
