Thermoplastic sheets are the starting material for a wide range of thermoformed products, from lightweight food trays and medical packaging to automotive panels, equipment housings and hollow industrial components.
Choosing a sheet is not simply a matter of selecting PET, PP, ABS or another polymer.
Manufacturers also need to consider:
Sheet thickness
Roll-fed or cut-sheet format
Forming temperature window
Melt strength and sag behavior
Impact and stiffness requirements
Surface finish
Clarity
Moisture sensitivity
Shrinkage
Final product depth
These factors affect not only the finished part but also the type of thermoforming machine, heating system, mold and production speed required.
For a broader comparison of PET, PP, ABS, PETG, HIPS, polycarbonate, acrylic and other plastics, see our Thermoforming Materials Guide.
This guide focuses specifically on how to select thermoplastic sheets for thermoforming based on sheet properties, format, thickness and production requirements.
A thermoplastic sheet is a flat plastic material that softens when heated and becomes rigid again after cooling.
This reversible behavior makes thermoplastics suitable for thermoforming.
The basic process is:
heat the sheet → soften the material → form it against a mold → cool it → trim the finished part

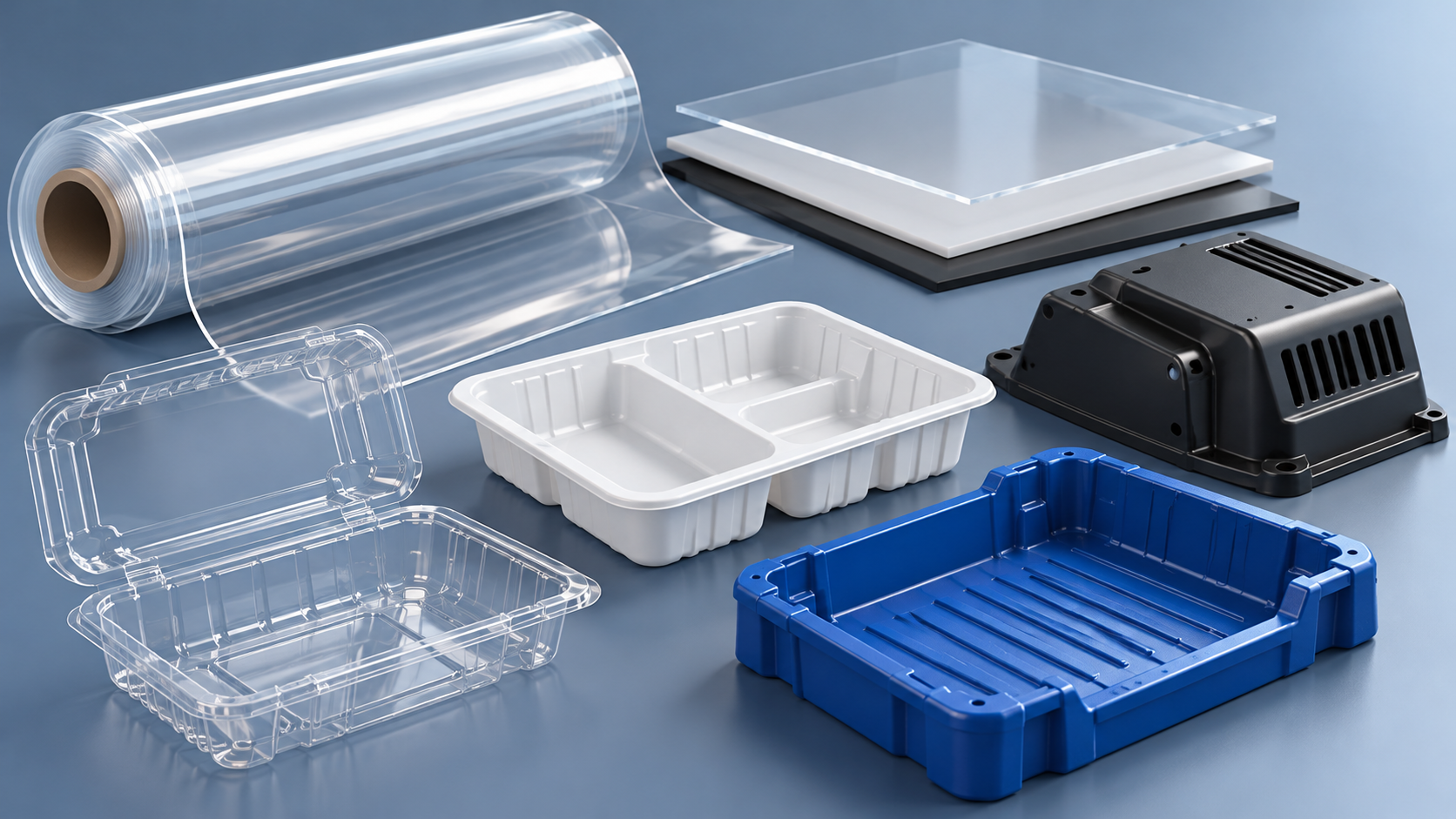

Thermoplastic sheets can be supplied as:
Continuous rolls
Individual cut sheets
Thin flexible sheet
Heavy-gauge rigid sheet
Clear, colored or opaque sheet
Textured or smooth sheet
Single-layer or multilayer structures
The correct format depends largely on what the manufacturer wants to make and how much of it needs to be produced.
Many plastics can be supplied as thermoformable sheet.
Some of the most commonly used include:
| Material | Main Sheet Characteristics | Typical Uses |
|---|---|---|
| PET / APET / RPET | Clear, stiff, packaging-oriented | Food trays, clamshells, containers |
| PP | Lightweight, chemical resistant, useful heat performance | Food containers, trays, cups |
| HIPS | Economical, easy to form, opaque | Inserts, trays, packaging |
| ABS | Tough, good surface finish, easy to fabricate | Equipment housings, automotive parts |
| PETG | Clear, impact resistant, good deep-forming behavior | Medical trays, displays, transparent packaging |
| PVC | Good forming characteristics in suitable grades | Blister packaging, trays |
| Polycarbonate | High impact and heat resistance | Guards, technical covers |
| Acrylic / PMMA | Excellent clarity and appearance | Displays, covers, lighting components |
| HDPE | Tough, chemically resistant, higher shrinkage | Liners, trays, rugged industrial products |
Amorphous plastics such as ABS, PETG, acrylic and polycarbonate generally soften across a broader temperature range and can be easier to control during forming.
Semi-crystalline plastics such as PP and HDPE can also be thermoformed successfully, but their heating, sag and cooling behavior often require tighter process control. This difference in formability is also noted in professional plastics material-selection guidance.
The name of the polymer is only the beginning.
Two sheets made from the same general polymer family can behave differently because of grade, additives, thickness, extrusion conditions or surface structure.
When evaluating thermoform plastic sheets, consider the following properties.
The forming window is the temperature range in which the sheet becomes soft enough to shape while retaining enough strength for controlled forming.
A wider processing window usually makes production easier to stabilize.
A narrow window requires tighter control over:
Heating time
Heater zones
Sheet temperature
Forming timing
Once the sheet is heated, it must remain controllable until forming begins.
Materials with lower hot strength may sag significantly.
Excessive sag can contribute to:
Uneven wall thickness
Premature mold contact
Webbing
Sheet handling problems
Sag is particularly important for large sheets and deep products.
The finished product needs enough stiffness to maintain its shape.
A disposable tray and an equipment cover therefore have very different material requirements.
Stiffness depends on both:
material properties + final wall thickness.
Impact performance matters for:
Reusable trays
Industrial housings
Transportation parts
Machine guards
Handling components
ABS, polycarbonate and HDPE may be considered when toughness is more important than minimum material cost.
For products such as:
Clamshell packaging
Medical trays
Display covers
Retail packaging
clarity can become one of the primary selection criteria.
PET, PETG, acrylic and polycarbonate are common transparent sheet options, but their forming behavior and mechanical properties differ.
All thermoformed parts undergo some dimensional change as they cool.
Semi-crystalline materials such as HDPE and PP generally require greater attention to shrinkage than materials such as ABS.
Shrinkage affects:
Tool dimensions
Mounting holes
Assembly fit
Final part size
Warpage
Some materials need more careful moisture control.
Polycarbonate is an important example because insufficient drying can lead to bubbles during heating.
Sheet storage and supplier drying recommendations should therefore be included in process planning.
One of the most important decisions is whether the material should be supplied from a continuous roll or as individual sheets.
The two systems are suited to different production models.
| Factor | Roll-Fed Sheet | Individual Sheet |
|---|---|---|
| Typical use | High-volume lightweight products | Larger or thicker industrial parts |
| Common products | Trays, cups, lids, packaging | Housings, panels, covers |
| Production style | Continuous / automated | Batch or cycle-based |
| Sheet handling | Automatic roll feeding | Sheet loading or automated sheet handling |
| Cutting | Often integrated | Frequently secondary |
| Output | Generally high | Depends strongly on part size |
| Machine type | Thin-gauge / multistation | Pressure, vacuum or industrial forming |
Roll-fed thermoforming is especially suitable when the manufacturer needs large quantities of relatively lightweight products.
Typical examples include:
Food trays
Cups
Lids
Medical trays
Blister packs
Clamshell packaging
Disposable containers
A continuous roll can move through heating, forming and cutting stations automatically.
For this type of production, a Thin-Gauge Thermoforming Machine is designed around thinner sheet and packaging-oriented production.
Where forming, punching, cutting and stacking need to be combined into an automated production line, a Multistation Thermoforming Machine may provide a more appropriate configuration. MINGDU's current multistation equipment integrates several downstream production operations into the same equipment platform.
Individual sheet feeding is commonly used for larger, thicker or lower-volume thermoformed parts.
Examples include:

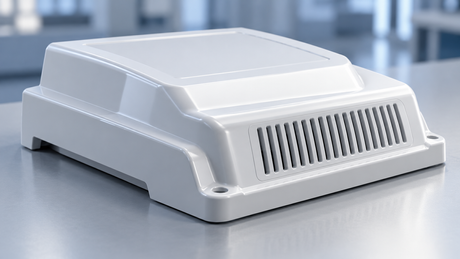

Equipment housings
Automotive panels
Machinery covers
Protective guards
Industrial liners
Display components
These products may require:
Longer heating cycles
Larger forming areas
Zoned heating
Greater forming depth
CNC or secondary trimming
When surface definition and detailed mold reproduction are important, a Pressure Forming Machine can provide additional forming force.
For projects that combine vacuum and compressed air during the forming cycle, a Pressure and Vacuum Forming Machine may be more suitable.
There is no universal sheet thickness for thermoforming.
The correct thickness should be based on the finished part, not on a generic rule such as:
“All trays use X mm sheet.”
The same starting thickness can produce very different final results depending on product geometry.
Consider the following factors.
The starting sheet becomes thinner as it stretches.
The most important question is therefore not:
How thick is the original sheet?
It is:
How much material must remain in the thinnest critical area after forming?
Critical areas may include:
Deep corners
Vertical walls
Mounting locations
Structural ribs
High-impact areas
A shallow tray requires relatively little material redistribution.
A deep housing requires much more stretching.
As product depth increases, manufacturers need to evaluate:
Draw ratio
Corner radius
Plug assist
Pre-stretching
Heating profile
rather than relying only on thicker starting material.
Large parts often require thicker sheets because the finished product needs more stiffness.
However, larger sheets also require more heating energy.
Increasing thickness affects:
Heating time
Cooling time
Cycle time
Material cost
Thickness therefore becomes both an engineering and economic decision.
Two sheets of equal thickness do not necessarily produce parts with equal rigidity.
A stiff polymer may achieve the required structural performance at a different thickness than a more flexible material.
This is why sheet thickness should always be evaluated together with material properties.
Industrial guards and reusable parts may need additional thickness to withstand impact.
Disposable packaging usually has very different mechanical requirements.
Tight corners and deep cavities create local thinning.
If the geometry cannot be changed, manufacturers may need:
Additional starting thickness
Plug assist
Zoned heating
Pre-stretching
Thickness selection and mold design should therefore be completed together.
It can be tempting to solve wall-thickness problems by simply increasing the starting sheet gauge.
That is not always the most efficient solution.
A thicker sheet increases:
Raw material use
Part weight
Heating time
Cooling time
Energy consumption
If the real problem is poor material distribution, adding more material may increase cost without solving the underlying process issue.
For example, an excessively thin corner may be better corrected through:
Larger mold radius
Plug assist
Heater-zone adjustment
Pre-blowing
rather than substantially increasing the entire sheet thickness.
Heat must penetrate through the full thickness of the plastic before forming.
Thin sheet reaches forming condition relatively quickly.
Thicker sheet requires more time for the core to reach the correct temperature.
If the surface heats much faster than the center, several problems can occur:
Surface overheating
Uneven material temperature
Poor forming
Bubbles in moisture-sensitive plastics
Some thick thermoplastic sheets benefit from heating on both sides. Thermoforming guidance for certain sheet products specifically recommends two-sided heating at heavier gauges to improve temperature uniformity.
The phrase heat moldable plastic sheets is commonly used to describe thermoplastic sheets that soften when heated and can then be shaped.
However, being heat moldable does not automatically mean a sheet is suitable for a specific thermoforming application.
The material must also provide suitable:
Hot strength
Stretching behavior
Cooling stability
Surface quality
Finished mechanical properties
For example:
PETG may offer easy forming and good clarity.
ABS may provide better cosmetic industrial surfaces.
HDPE may be preferred for chemical resistance.
Polycarbonate may be chosen for impact and heat resistance.
The finished product should determine the sheet—not the other way around.
The terms thin-gauge and heavy-gauge are useful industry categories, but they should not be treated as universal engineering limits.
Typically associated with:
Roll-fed material
High-volume production
Lightweight packaging
Multiple cavities
Integrated cutting and stacking
Products include food trays, medical trays, lids and clamshells.
More commonly associated with:
Individual cut sheets
Larger parts
Industrial products
Secondary trimming
Lower to medium production volumes
Typical products include:
Automotive panels
Equipment housings
Guards
Covers
Industrial liners
The transition between thin and heavy gauge varies by process, machine and manufacturer, so machine capability should be checked against the actual sheet dimensions rather than relying only on terminology.
Some products require two thermoformed sheets rather than one.
Twin-sheet thermoforming independently forms two sheets and joins them to create a hollow or double-wall component.
Typical applications include:
Plastic pallets
Hollow panels
Air ducts
Reusable transport components
Structural industrial products
Materials such as HDPE, ABS and other suitable thermoplastics may be considered depending on product requirements.
For these applications, a Twin Sheet Forming Machine is designed specifically around two-sheet forming. MINGDU's existing twin-sheet content also identifies materials such as ABS, HIPS, PC, PETG, HDPE and others as potential resin options depending on performance requirements.
Material and machine selection should not be treated as separate decisions.
The thermoforming machine must match the sheet in terms of:
Maximum sheet width and length
Sheet thickness range
Heating capacity
Heater zoning
Forming depth
Vacuum capacity
Pressure capability
Mold dimensions
Cooling
Cutting method
A practical equipment match looks like this:
| Production Requirement | Typical Equipment Direction |
|---|---|
| Thin roll-fed trays and packaging | Thin-Gauge Thermoforming Machine |
| Automated forming + cutting + stacking | Multistation Thermoforming Machine |
| Detailed industrial surfaces | Pressure Forming Machine |
| Combined pressure and vacuum forming | Pressure and Vacuum Forming Machine |
| Hollow double-wall products | Twin Sheet Forming Machine |
The best machine is therefore determined by the relationship between:
material + sheet dimensions + thickness + product geometry + output requirement.
Before ordering production sheet, confirm:
Which polymer meets the end-use requirements?
Is the sheet roll-fed or cut-sheet?
What minimum wall thickness must remain after forming?
How deep is the product?
Is clarity required?
What impact strength is required?
Will the part contact chemicals?
What operating temperature will the finished part experience?
Does the sheet require pre-drying?
How much shrinkage should the mold accommodate?
Does the surface need a specific texture or gloss?
Will the part be printed or painted?
Is recycled content required?
What trimming method will be used?
Can the selected thermoforming machine heat and handle the required sheet size and thickness?
This checklist helps prevent a common mistake: selecting a plastic first and discovering later that the sheet, mold and machine are poorly matched.
Common thermoforming sheets include PET, PP, HIPS, ABS, PETG, PVC, polycarbonate, HDPE and acrylic. The correct material depends on product performance and processing requirements.
There is no single best material. PET is widely used for clear packaging, HIPS for economical trays, ABS for industrial housings, PETG for clear deep-formed parts, polycarbonate for impact-resistant components and HDPE for rugged chemical-resistant products.
Both. Thin material used for high-volume packaging is often roll-fed, while thicker industrial material is commonly supplied as individual sheets.
Thickness should be based on the required final wall thickness, product depth, material stiffness, impact requirements and expected stretching. A universal thickness recommendation is not reliable.
Generally yes. Heat must penetrate through the full sheet thickness, so thicker material normally requires more heating energy and time.
Yes. Thick sheet is widely thermoformed into equipment housings, vehicle components, guards, liners and other industrial products, provided the machine has suitable heating capacity and forming depth.
Choosing the right thermoplastic sheet requires more than selecting a polymer name.
Manufacturers need to evaluate:
material properties + sheet format + thickness + product geometry + thermoforming equipment.
Roll-fed sheet is particularly effective for high-volume packaging, while individual sheets are commonly used for larger industrial components.
Thickness should be selected according to the wall thickness required after forming—not simply according to a standard gauge.
For deep or complex products, heating, draw ratio, mold radii and material-distribution techniques can be just as important as the original sheet thickness.
The most reliable approach is to evaluate the finished product, thermoplastic sheet, mold and machine as one complete forming system.
