Custom thermoformed packaging is manufactured through a controlled development process that turns a product, drawing or packaging requirement into a repeatable formed plastic part.
A typical project moves through four major stages:

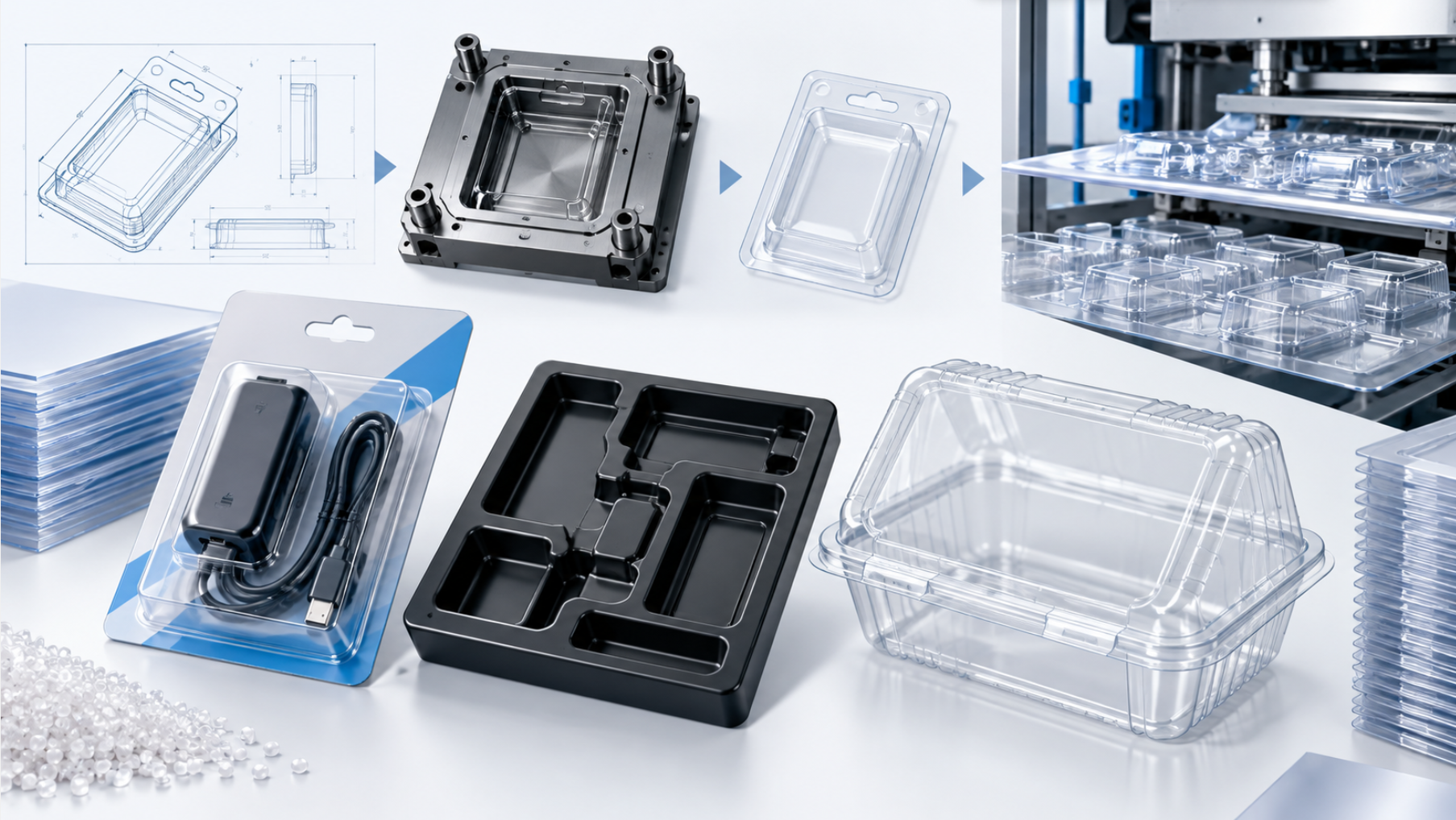

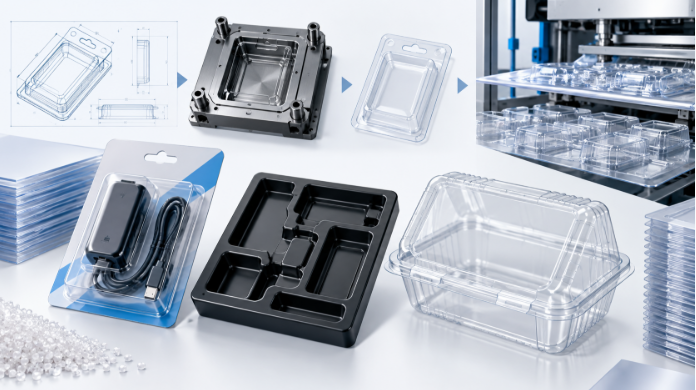

Design → Mould Development → Forming Trial → Production
However, successful custom packaging requires more than simply making a cavity that matches the product. Material, sheet thickness, draft, forming depth, trimming, stacking, sealing and production volume all need to be considered before the design is released for manufacturing.
For a broader overview of thermoformed trays, blisters, clamshells and other packaging structures, see the Thermoformed Packaging Guide.
Custom thermoformed packaging is plastic packaging developed around the dimensions, handling requirements and presentation needs of a specific product.
Common formats include:
Product trays
Blister packaging
Clamshell packaging
Electronics trays
Medical trays
Protective inserts
Food containers
Industrial component trays
Unlike stock packaging, the cavity geometry, dimensions and material are selected specifically for the application.
A custom packaging project can start from:
A physical product sample
2D drawing
3D CAD file
Existing package
Product dimensions
Concept sketch
Packaging performance requirement
The more complete the starting information, the easier it is to identify manufacturing risks before tooling begins.
Good custom packaging starts with the product—not the thermoforming machine.
Before designing the tray or blister, manufacturers should define:
Include both nominal dimensions and relevant tolerances.
A cavity designed around only the nominal size may become too tight when normal product variation is introduced.
Identify areas that should:
Support the product
Avoid contact
Prevent movement
Protect delicate features
Maintain orientation
For electronics, for example, pins, connectors and sensitive surfaces may require additional clearance.
Ask whether the package needs to:
Display the product
Protect it during transport
Hold parts during manufacturing
Stack when loaded
Nest when empty
Seal to a card or film
Feed an automated assembly line
These requirements influence the package long before production begins.
A few thousand packages and several million packages may use different tooling, cavity layouts and automation strategies.
Volume affects:
tooling investment → cavity count → production method → unit cost
Once requirements are defined, the concept can be converted into a manufacturable thermoformed design.
The design should consider both the product and how plastic sheet behaves during forming.
Important features include:
Cavity dimensions
Product clearance
Forming depth
Draft
Corner radii
Wall-thickness distribution
Flange
Ribs
Nesting
Stacking
Trim line
A shape that looks correct in a 3D model may still be difficult to thermoform.
For example:
Very deep cavity
→ greater sheet stretching
Sharp internal corners
→ localized wall thinning
Insufficient draft
→ difficult mold release
Very narrow features
→ incomplete forming
Poor cavity spacing
→ inefficient material utilization
Design for manufacturability should therefore happen before the mould is manufactured.
Material selection should happen during design rather than after tooling is complete.
Common thermoforming packaging materials include:
PET
RPET
PETG
PVC
PP
HIPS
ABS
PLA
Specialty ESD materials
The correct material depends on the application.
Questions include:
Is high clarity required?
Does the package need impact resistance?
Will it contact food?
Is ESD protection required?
Does it need to withstand heat?
Is recycled content required?
Does the package need to seal to another material?
For more detailed material comparisons, see the Thermoforming Materials Guide.
The finished package does not maintain the original sheet thickness everywhere.
During forming, the sheet stretches into the cavity.
Therefore, engineers should evaluate:
starting sheet thickness → draw depth → material distribution → minimum finished wall thickness
Using thicker sheet can improve strength, but unnecessary thickness also increases material cost.
The goal is not the thickest package—it is the minimum practical material that provides reliable performance.
Once the package design is sufficiently developed, it is translated into tooling.
The forming mould controls the geometry of every package produced from it.
Depending on the project, tooling may include:
Forming mould
Vacuum holes or channels
Pressure box
Plug assist
Cutting mould
Punching tool
Positioning fixtures
MINGDU provides thermoforming mould solutions for forming, punching and cutting applications.
The tool should reflect:
Final cavity dimensions
Material shrinkage
Draft
Venting
Corner radii
Forming direction
Cooling requirements
Trim registration
Cavity layout
Venting is particularly important because trapped air must leave the cavity as the heated sheet reaches the mould surface.
Poor venting can create incomplete details even when the packaging design itself is correct.
Not every project follows exactly the same tooling route.
For a new or technically uncertain package, prototype tooling can be useful for validating:
Product fit
Cavity geometry
Material
Appearance
Stacking
Handling
before committing to full production tooling.
For a straightforward project with an established design, manufacturers may move more directly toward production tooling and first-article trials.
The correct approach depends on:
Design complexity
Product value
Required tolerance
Material
Production volume
Cost of design changes
The objective is to find design problems while changes are still relatively inexpensive.
Completing the mould does not mean the package is ready for mass production.
The next important stage is the forming trial.
Initial samples allow engineers to evaluate how the actual material behaves on the actual tooling.
The trial process commonly checks:
Cavity definition
Forming depth
Wall-thickness distribution
Product fit
Trim position
Flange flatness
Nesting
Stacking
Surface quality
Part release
This stage connects the CAD design with manufacturing reality.
Several issues may not become obvious until the first parts are formed.
Deep sections may stretch more than predicted.
Possible adjustments include:
Heating profile
Sheet thickness
Corner radius
Forming sequence
Plug assist
This may require changes to:
Cavity clearance
Draft
Local geometry
Shrinkage allowance
Potential causes include:
Inadequate venting
Incorrect sheet temperature
Insufficient vacuum or pressure
Difficult cavity geometry
Empty trays may lock together if nesting depth or anti-lock features were not adequately considered.
A forming trial is therefore not simply a demonstration. It is an engineering validation stage.
Samples should be evaluated using the real product whenever possible.
Check:
Does the product load easily?
Is product movement controlled?
Can the product be removed without damage?
Are sensitive areas protected?
Does the package stack correctly?
Does the package fit the outer carton?
Can operators or robots handle it reliably?
For retail packaging, also review:
Product visibility
Flange quality
Card or film sealing
Hang-hole position
Overall presentation
A visually attractive sample can still fail if it creates problems during filling, transport or automated handling.
Once the package has passed the required tests, the approved configuration should become the production reference.
Important controlled information can include:
Drawing revision
Material grade
Sheet thickness
Approved sample
Mould revision
Critical dimensions
Trim specification
Quality requirements
This prevents a common production problem:
The sample was approved, but later production was made against a different drawing or material specification.
A clear approval point gives both buyer and manufacturer a defined reference for repeat orders.
After approval, the process can be optimized for repeatable production.
A typical thermoforming sequence is:

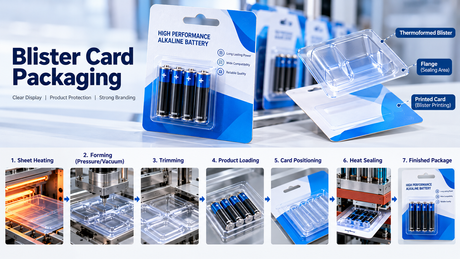

Sheet Feeding → Heating → Forming → Cooling → Cutting → Stacking → Inspection
The exact machine configuration depends on package geometry and production volume.
For flexible packaging production using vacuum and positive pressure, MINGDU's Pressure and Vacuum Forming Machines can be evaluated according to the required forming depth, sheet specification and package geometry.
For high-volume thin-wall trays, blisters and clamshells, Thin-Gauge Thermoforming Machines can support automated thin-sheet forming and cutting applications.
Machine selection should follow the package—not the other way around.
Once the package itself works correctly, production efficiency becomes more important.
A mould may contain multiple cavities per cycle.
The layout should balance:
Cavity count
Sheet width
Flange requirements
Trim allowance
Part spacing
Production speed
Material utilization
More cavities do not automatically mean better economics.
If cavities are packed too closely, the design may create:
Difficult cutting
Poor forming
Insufficient flange area
Higher scrap
Tooling complexity
The best layout produces stable parts while using the sheet efficiently.
Repeat production should verify the features that actually affect package performance.
Depending on the application, checks may include:
Overall dimensions
Cavity depth
Wall thickness
Trim position
Flange width
Surface appearance
Product fit
Nesting
Stacking
Seal area
ESD performance
Not every dimension requires the same inspection frequency.
Quality control should focus especially on critical-to-function features.
A useful RFQ should include as much of the following as possible:
| Information | Why It Matters |
|---|---|
| Product drawing or dimensions | Defines the cavity |
| Physical sample | Helps confirm actual fit |
| Packaging type | Tray, blister, clamshell, insert, etc. |
| Material preference | Influences heating and forming |
| Sheet thickness | Affects strength and forming |
| Required quantity | Influences tooling and equipment |
| Product weight | Affects tray structure |
| Stack/nest requirement | Changes package geometry |
| Sealing requirement | Affects flange design |
| Automation requirement | Influences precision and locating features |
| Annual forecast | Helps evaluate production economics |
If some information is unknown, it can be developed during the engineering review.
Late geometry changes become more expensive once metal has been machined.
The lowest-cost sheet may create poor forming, weak parts or higher rejection rates.
Always test with the actual product when possible.
Thermoforming may work perfectly while filling, sealing, stacking or robotic handling fails.
The product drawing, material, forming depth, cavity layout and production target should determine the machine configuration.
There is no universal lead time.
Development depends on:
Design complexity
Tool type
Material availability
Number of revisions
Sample testing
Customer approval
Production tooling
Machine scheduling
Simple projects with complete drawings can move through development relatively quickly.
Complex packaging involving precise product fit, automation, sealing or regulatory validation may require additional trial and approval cycles.
For that reason, manufacturers should plan around development stages and approval gates, rather than assuming every custom package follows the same calendar.
The normal sequence is product requirement review, packaging design, material selection, mould development, thermoforming trials, sample approval and repeat production.
Not always. A project can begin from a product sample, dimensions, existing package or concept. However, an approved production drawing should normally be established before final tooling and repeat manufacturing.
Trials verify how the actual material, mould and forming conditions work together. They help identify problems such as poor fit, thinning, incomplete forming, trimming issues or unstable stacking before full production.
The exact tooling depends on the package. Production may require a forming mould plus cutting, punching or other downstream tools. Mould design should match the material, geometry and expected production volume.
It depends on the package. Vacuum or pressure-and-vacuum equipment can suit many custom packaging geometries, while thin-gauge and multistation equipment may be more suitable for high-volume trays, blisters and containers.
Many industrial thermoforming machines can use interchangeable moulds, provided the packages remain within the machine's forming area, sheet range, forming depth and process capabilities.
Custom thermoformed packaging is best developed as an engineering process rather than as a simple mould-ordering exercise.
The most reliable sequence is:
Requirement → Design → Material → Mould → Trial → Product Test → Approval → Production
Each step removes uncertainty before the project moves to the next level of investment.
A good package should not only look correct. It should:
Fit the product
Form consistently
Use material efficiently
Trim reliably
Protect the product
Work with downstream operations
Remain repeatable during production
